ISO Certification Flat End Mill Cutting Tools For CNC Machines Milling Cutter
10pcs
MOQ
negotiable
Price
ISO Certification Flat End Mill Cutting Tools For CNC Machines Milling Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

milling machine cutting tools

,

milling cutting tools

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Place Of Origin: Zhuzhou City--Carbide City
Diameters: 0.1-15mm
Delivery Time: 7-10 Days
Length: 50-150mm
Helix Angle: 30,35,40
Samples: Free
OEM: Accepted
Cutting Shape: Flat, Ballnose,Corner Radius Etc
Product Description

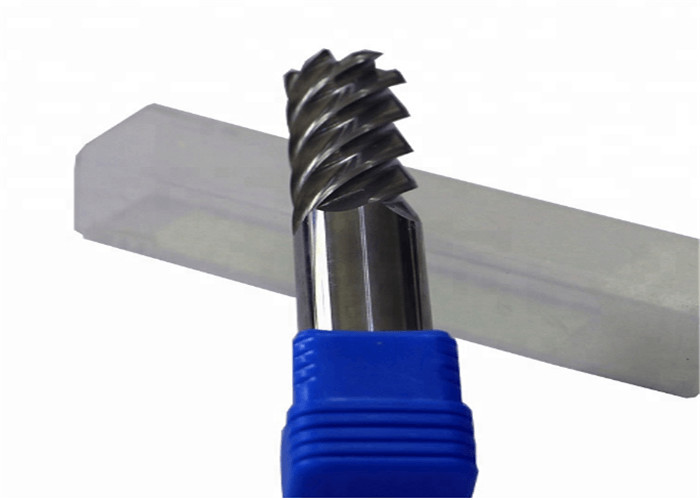

Carbide Flat Type End Mills Cutting Tools For CNC Machines Milling Cutter



1. Standard Sizes



Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100


2. Coating



Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



3.Machining Operation of Tungsten Carbide Solid Endmill cutter bits

Ball nose end mills profile machining profile machining slot machining deep slot machining
R end mills side machining slot machining profile machining
Flattened end mills side machining shoulder machining straight slot machining deep slot machining


4. Application and usage

(1) Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
(2) Applicated for aerospace, transportation, Medical equipment, Military manufacturing, Mould development, Apparatus and instrument, etc.

5. Payment

T/T, Western Union, Paypal (Choose your convenient way)
6. Shipment

FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)


7. Company Information


Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
