Cemented carbide (tungsten steel) has a series of excellent properties such as high hardness, wear resistance, strength and toughness, heat resistance and corrosion resistance, especially its high hardness and wear resistance.
product description:
1, 360 ° whole knife finishing: high precision wear surface smooth surface, mainly used in cutting and hooking large chip removal, special specifications we can customize for you.
2, cutting edge mirror grinding process: cutting edge mirror technology, combined with large capacity chip flute. The cutting edge is sharp and wear-resistant, with non-stick knife, no burr, not easy to break the knife, and high durability.
3, exquisite packaging box: complete specifications, beautifully packaged, selected tool protection box, complete protection tool is not subject to wear and tear, complete specifications.
4, exquisite workmanship: clean surface tidy without burr, using high-precision equipment exquisite processing and design, can greatly improve product processing efficiency and quality.
5, the new ligament design: the bottom ligament with slope, wear-resistant, high-speed operation, no black, smooth effect.
product details:
1 large chip flute: double-edged design, large chip removal capacity, can greatly improve the cutting speed, the cutting surface is smooth and delicate.
2 double-edged design: sharp sharp, double-edged large chip flute, non-stick knife, smooth cutting force, fast speed and smooth cut surface.
3 complete specifications: according to the thickness of the material you need to choose, a variety of models for you to choose, play the performance of the knife.

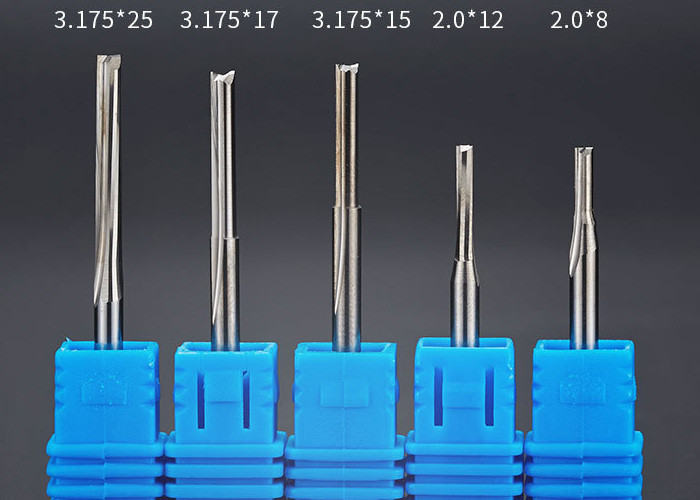

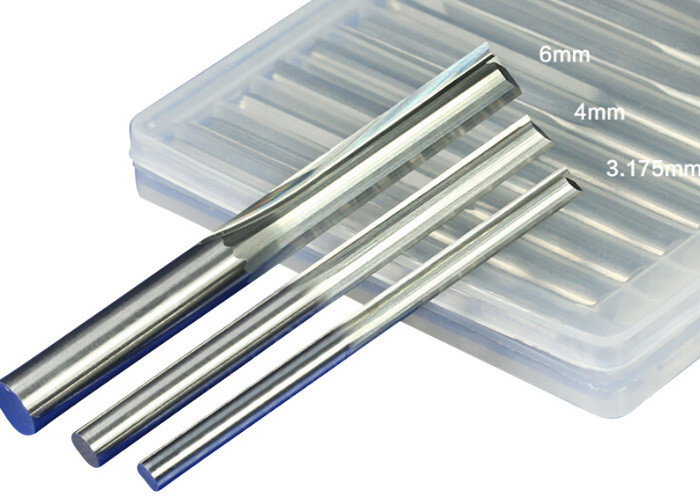

Product size:
Size | Shank Diameter | Cutting Length | Total Length |
3.175*1*4 | 1 | 3 | 38 |
3.175*1.5*6 | 1.5 | 6 | 38 |
3.175*2*8 | 2 | 8 | 38 |
3.175*2*12 | 2 | 12 | 38 |
3.175*2.5*12 | 2.5 | 12 | 38 |
3.175*12 | 3.175 | 12 | 38 |
3.175*17 | 3.175 | 17 | 38 |
3.175*22 | 3.175 | 22 | 45 |
3.175*25 | 3.175 | 25 | 50 |
3.175*28 | 3.175 | 28 | 50 |
3.175*32 | 3.175 | 32 | 55 |
4*12 | 4 | 12 | 40 |
4*15 | 4 | 15 | 40 |
4*17 | 4 | 17 | 40 |
4*22 | 4 | 22 | 45 |
4*25 | 4 | 25 | 50 |
4*28 | 4 | 28 | 55 |
4*32 | 4 | 32 | 55 |
5*17 | 5 | 17 | 45 |
5*22 | 5 | 22 | 45 |
5*25 | 5 | 25 | 50 |
5*28 | 5 | 28 | 55 |
5*32 | 5 | 32 | 60 |
6*5*22 | 5 | 22 | 50 |
6*17 | 6 | 17 | 45 |
6*22 | 6 | 22 | 45 |
6*25 | 6 | 25 | 50 |
6*28 | 6 | 28 | 55 |
6*32 | 6 | 32 | 60 |
6*42 | 6 | 42 | 70 |
6*52 | 6 | 52 | 80 |
6*62 | 6 | 62 | 100 |
8*22 | 8 | 22 | 50 |
8*25 | 8 | 25 | 50 |
8*32 | 8 | 32 | 60 |
8*42 | 8 | 42 | 70 |
8*52 | 8 | 52 | 80 |
8*62 | 8 | 62 | 100 |
8*80 | 8 | 80 | 120 |
10*32 | 10 | 32 | 60 |
10*42 | 10 | 42 | 70 |
10*52 | 10 | 52 | 80 |
10*62 | 10 | 62 | 100 |
10*80 | 10 | 80 | 120 |
12*32 | 12 | 32 | 60 |
12*42 | 12 | 42 | 70 |
12*52 | 12 | 52 | 80 |
12*62 | 12 | 62 | 100 |
12*80 | 12 | 80 | 120 |
Scope of application: cutting, milling, hollowing, glyphing, punching, positioning, roughing, flowering, etc.
Suitable for processing: multi-layer board, sandwich board, MDF, medium and low density board, solid wood board, synthetic board, multi-layer board, PVC, acrylic and so on.
