SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating
10pcs
MOQ
negotiable
Price
SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

Altin Carbide Corner Radius End Mill

,

Tungsten Carbide Corner Radius End Mill

,

sgs carbide end mills

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Flute Number: 2, 3, 4, 5, 6
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Sample: Free
Production Period: 7-10 Days
Cutting Form: Flat, Ball Nose, Corner Radius, Roughing
Usage: General High Speed Cutting
Coating: Altin, Tiain, Tiain, Ticn, Tin, Tialn, Uncoated
Flute Diameter: 0.5mm-25mm,Customized
Product Description

We accept client's requirement of non-standard size
Different Hardness based on client's requirement
Sutiable for various steel process , tooling process , Alloy Aluminium process and cast iron process.
Talented and well-trained employees.
If you want to know more about our products, you can contact us on line


1, Chemical Composition: 10%Co-Wc
2, Raw Material: Super Micro grain with Diameter less than 0.2UM
3, International Industrial Standard: K10,  K20, K30, K40
4, Application areas: Machining of cast iron, nonferrous alloy, chill cast iron, hard steel, stainless steel, plastic materials, fiberglass, carbon fiber and other non-metallic.
5, Served industries: Aerospace, Transportation, Medical Equipment, Military Manufacturing, Mold Development, etc.



Super Coating
Coating Classifying and Advantage
Item Coating Type AlTin TiAlN TiSiN Naco













Characteristic
Hardness(HV) 3300 2800 4300 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp.(°C) 900 800 1000 1200
Friction Coefficient 0.35 0.3 0.25 0.4
Color Black Dark Purple Copper Blue
Advantages High heat stability Normally cutting Suitable for heavy cutting, and high hardness cutting For high precision cutting
Suitable for high speed, dry cutting Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert



Products Show

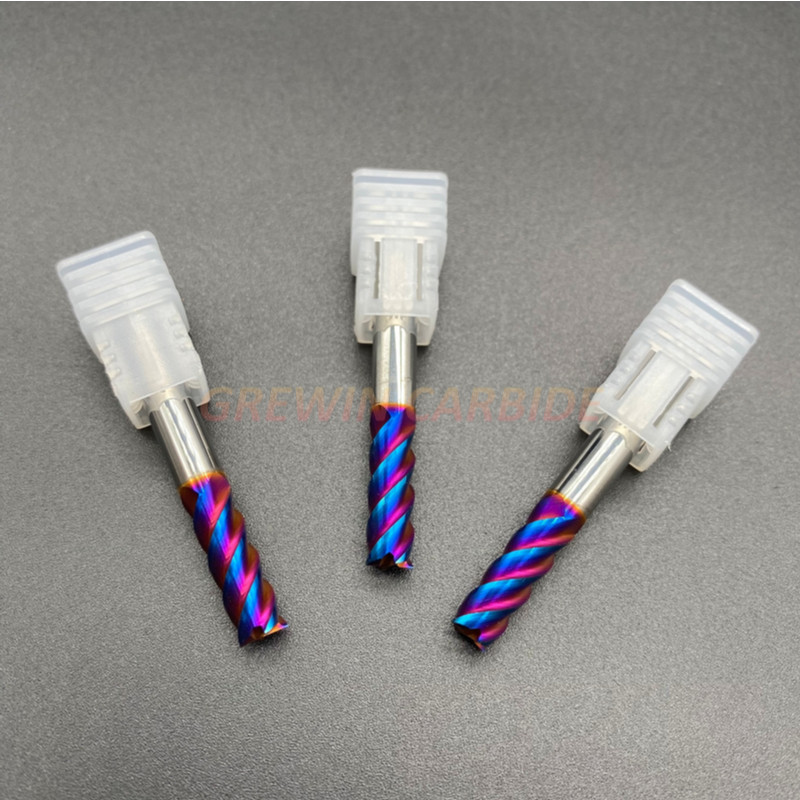

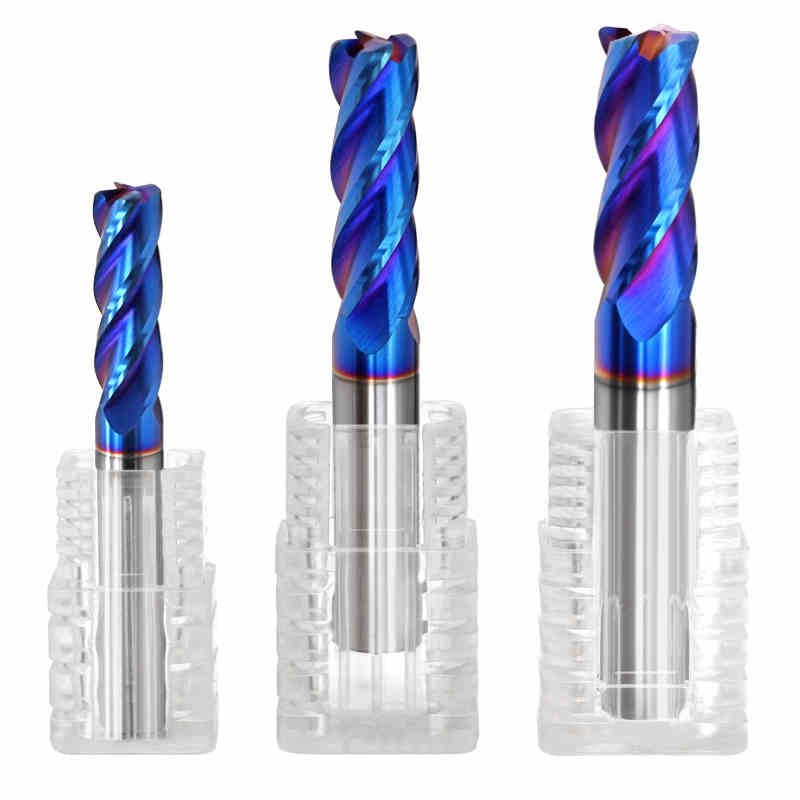

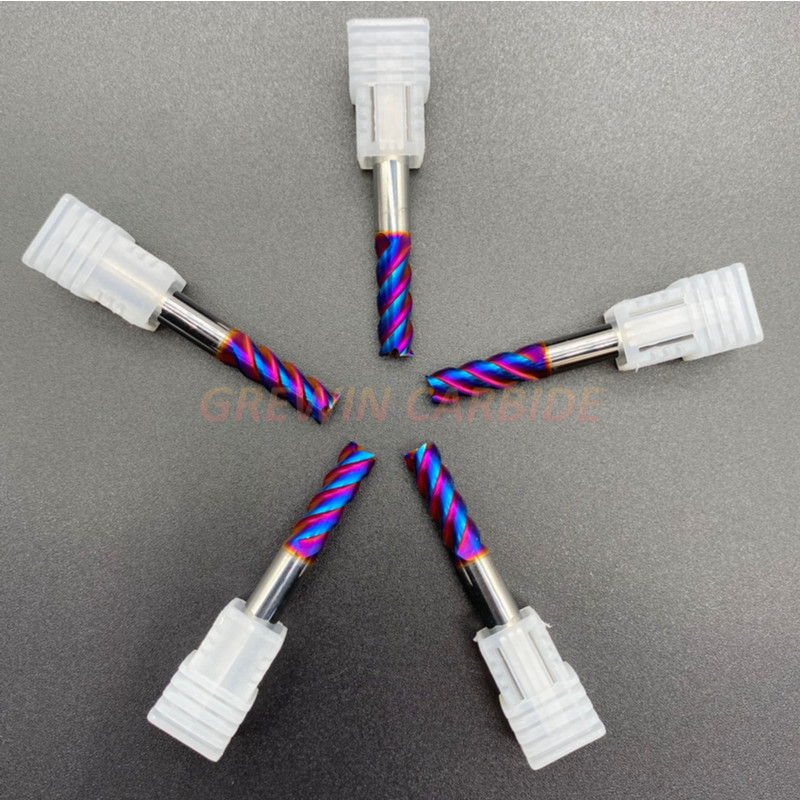

SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating 0SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating 1SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating 2SGS Carbide Corner Radius End Mills CNC Tungsten Altin Coating 3
