Characteristic:
Sharp edge: large chip removal groove, high polish without defect, double-edged core, slope back angle.
Large helix angle: prevent chip accumulation, double-edged deburring, in-trough wire drawing effect, bronze coating
Smooth handle: chamfer design, round smooth handle, more convenient loading.
Details:
Edge design: It is not easy to collapse to enhance the rigidity of the tool, taking into account the rigidity of the tool and chip removal performance to make the cutting and cutting of the tool more stable.
Spiral chip removal groove: Diamond grinding wheel processing in the groove, the unique chip shape effectively prevents chip accumulation. Even in the process of grooving and cavity, it can show excellent performance.
Double-edged belt: Strong edge to prevent edge cracking, double milling, double removal of residual burrs in milling.
Chamfer design: chamfer processing, easy loading, milling process plays a role in shock absorption, exclusively for high hardness telling cutting applications.
Finished product process:
German fine tungsten steel bars with high hardness and wear resistance are selected. Advanced grinding equipment is used to finish milling cutters to ensure that each cutter is processed precisely. In the quality part, each finished milling cutter has been tested three times, and no cutter is used to reassure customers.

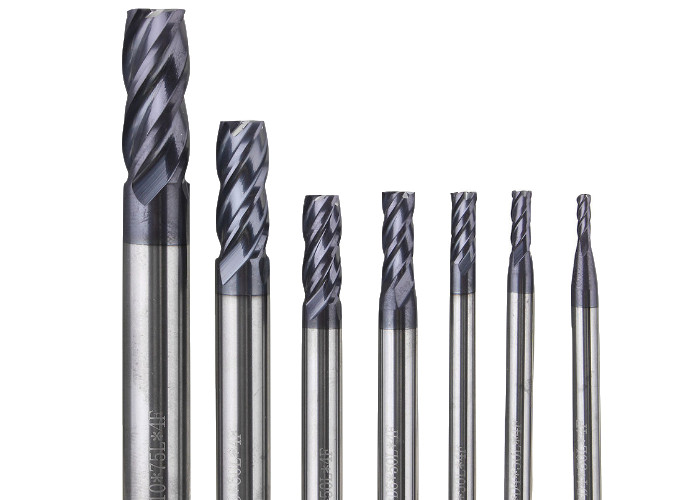

Product Description:
Cemented Carbide, Seiko Quality: High quality hard value combined, durability of non-high-speed steel and small grinding wheel comparable, greatly improved efficiency.
Advanced technology, environmental protection, dust-free: no dust pollution in the work, easy to master, simple and reliable performance, can reduce labor intensity, improve the working environment.
Milling by core-generated milling excellence: years of continuous research and development innovations in the protection of chip space under the conditions of the use of large core diameter design, to enhance the rigidity and anti-seismic cutter, reduce tool breakage.
Product size:
Size | Cutting diameter | Cutting length | Shank diameter | Total length |
1*4*50 | 1 | 3 | 4 | 50 |
1.5*4*50 | 1.5 | 4.5 | 4 | 50 |
2*4*50 | 2 | 6 | 4 | 50 |
2.5*4*50 | 2.5 | 7 | 4 | 50 |
3*4*50 | 3 | 11 | 4 | 50 |
4*4*50 | 4 | 13 | 4 | 50 |
6*6*50 | 6 | 17 | 6 | 50 |
8*8*60 | 8 | 22 | 8 | 60 |
10*10*75 | 10 | 27 | 10 | 75 |
12*12*75 | 12 | 32 | 12 | 75 |
14*14*100 | 14 | 36 | 14 | 100 |
16*16*100 | 16 | 42 | 16 | 100 |
18*18*100 | 18 | 45 | 18 | 100 |
20*20*100 | 20 | 48 | 20 | 100 |
Coating:
Coating | Color | Coating Temperature |
Thickness(um) | HV | Application Temperature |
Friction coefficient |
TiAIN | Purple-Gray | <600°C | 3--5 | 3300 | 800 °C | 0.3 |
aITiN | Black | <600 °C | 3--5 | 3500 | 900 °C | 0.3 |
TiXco | Copper | <600 °C | 3--5 | 3500 | 1500 °C | 0.4 |
NaNo | Blue | <600 °C | 3--5 | 3800 | 1200 °C | 0.4 |
AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
Our Services:
More than 2000 products are available. Assembly line production, high standard and strict requirements.?
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
Waiting for your kindly inquiry.
