HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting
10pcs
MOQ
negotiable
Price
HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

HRC45 Ball End Mill Cutter

,

Carbide Ball End Mill Cutter

,

Chamfer 5 flute end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Delivery Time: 7-10 Days
Flutes: 2, 3, 4, 5, 6
HRC: 45, 55, 60, 65
Type: Flat, Ball Nose, Corner Radius, Roughing
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Usage: General High Speed Cutting
Coating: Altin, Tiain, Tisin, Ticn, Tin, Tialn, Uncoated
Flute Diameter: 0.5mm-25mm,Customized
Product Description

Standard sizes:



2 flutes Flat End Mill

HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting 0

HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
2GW1-01002050 1 3 50 4 2
2GW1-01504050 1.5 4 50 4 2
2GW1-02050500 2 5 50 4 2
2GW1-02507050 2.5 7 50 4 2
2GW1-03008050 3 8 50 4 2
2GW1-04010050 4 10 50 4 2
2GW1-04015075 4 15 75 4 2
2GW1-04020100 4 20 100 4 2
2GW1-05012050 5 13 50 6 2
2GW1-06015050 6 15 50 6 2
2GW1-06020075 6 20 75 6 2
2GW1-06020100 6 30 100 6 2
2GW1-06020060 8 20 60 8 2
2GW1-08025075 8 25 75 8 2
2GW1-08025100 8 35 100 8 2
2GW1-010025075 10 25 75 10 2
2GW1-010040100 10 40 100 10 2
2GW1-012020075 12 30 75 12 2
2GW1-012040100 12 40 100 12 2
2GW1-014020080 14 30 80 14 2
2GW1-014100100 14 40 100 14 2
2GW1-016040100 16 40 100 16 2
2GW1-018040100 18 40 100 18 2
2GW1-020040100 20 40 100 20 2
2GW1-06040150 6 40 150 6 2
2GW1-08050150 8 50 150 8 2
2GW1-010050150 10 50 150 10 2
2GW1-012050150 12 50 150 12 2
2GW1-014060150 14 60 150 14 2
2GW1-016060150 16 60 150 16 2
2GW1-018060150 18 60 150 18 2
2GW1-020060150 20 60 150 20 2





4 flutes Flat End Mill

HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting 1

HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.


Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4






PICTURES SHOW

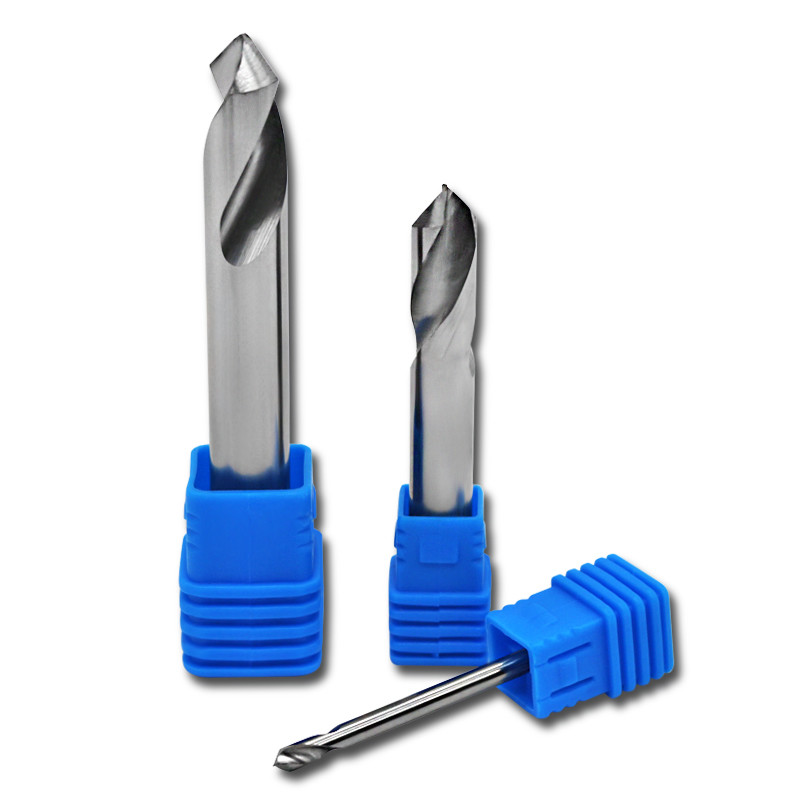

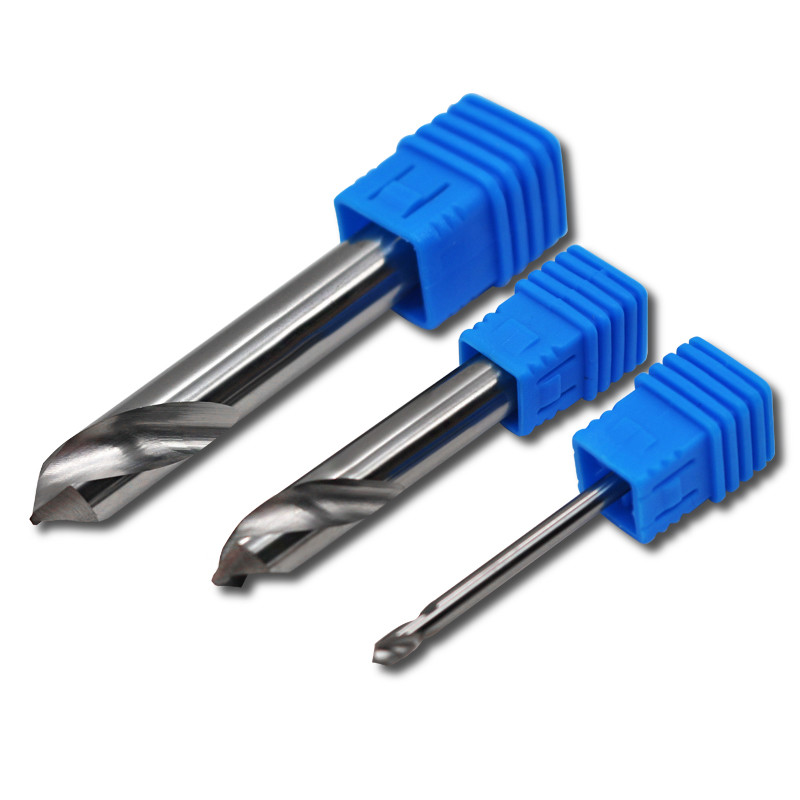

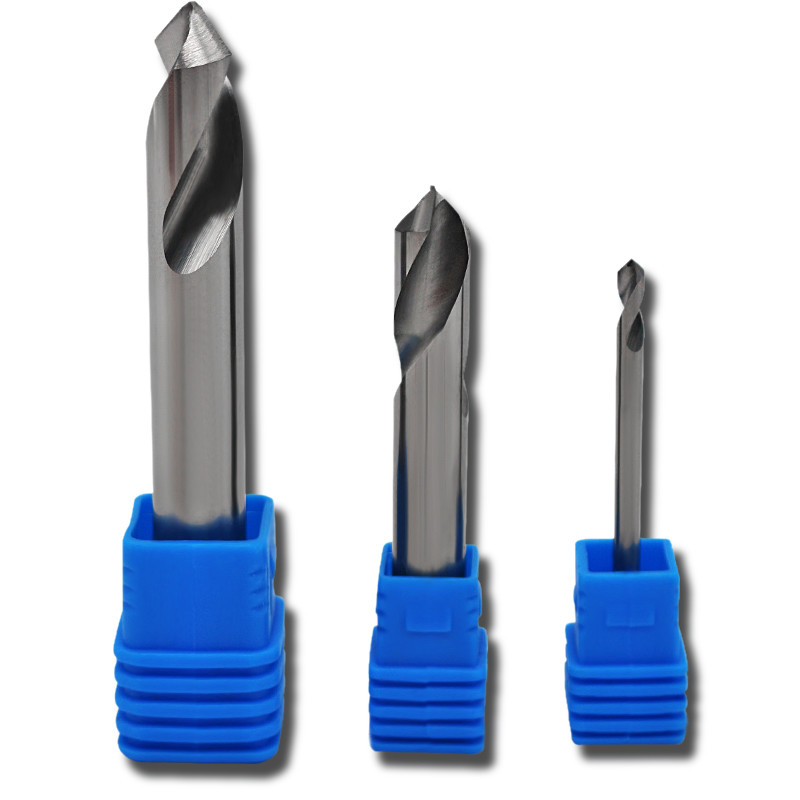

HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting 2HRC45 5 Flute Ball End Mill Cutter Solid Chamfer For Metal Cutting 3

Payment

T/T, Western Union, Paypal (Choose your convenient way)

Shipment

FEDEX, TNT, DHL, UPS, EMS,etc.
The port is Beijing,Shanghai ,Guangzhou ,Shenzhen,etc.Any port in China. (Choose your convenient way)


Packing

Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group

Delivery time

Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
