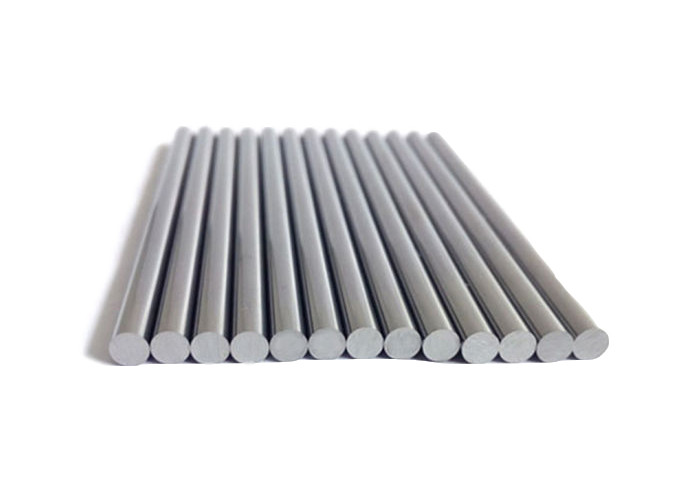

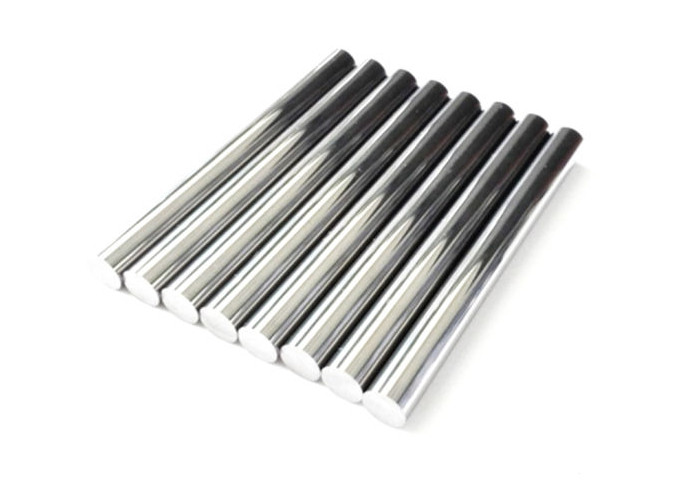

150mm Tungsten Carbide Rod Blanks Carbide Drill Rod Profiles SGS Certification
10pcs
MOQ
USD0.45-78/pcs
Price
150mm Tungsten Carbide Rod Blanks Carbide Drill Rod Profiles SGS Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

150mm Tungsten Carbide Rod Blanks

,

SGS Tungsten Carbide Rod Blanks

,

Carbide Drill Rod Profiles

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Material: Carbide
Diameter: 0.1mm-20mm,Customized Or Standard
Overall Length: 50-330mm,50~150mm / Customized
Suitable For: Carbon Steel,Hardened Steel
Transport: Express,Air
Chemical Composition: WC
Grade: K10, K30, K40, YG6X, YG8, YG10, YL10.2
Sample: Free
Delivery Time: 15-25 Work Days
Product Description

Product description:


Carbide round bars, ie tungsten steel round bars, also known as tungsten steel bars, are simply tungsten steel bars or carbide bars. Cemented carbide is a composite material composed of a refractory metal compound (hard phase) and a binder metal (bonded phase) produced by powder metallurgy. Carbide, also known as tungsten steel, is relatively different in local terms.
Cemented carbide (WC) is an inorganic compound containing equal amounts of tungsten and carbon atoms. In its most basic form, it is a subtle gray powder, but it can be used in industrial machinery, tools, abrasives, and shapes used. Cemented carbides have three times the carbon content of steel and are denser than steel and titanium. Its hardness is comparable to that of diamond and can only be ground into a hard alloy and polished with cubic boron nitride abrasive.
Carbide rods are a new technology and new materials. Mainly used in the manufacture of metal cutting tools, wood, plastics, hardness and wear resistance, corrosion resistance products manufacturing industries.

Round bar features:
The main characteristics of cemented carbide rods are stable mechanical properties, easy welding, high wear resistance and high impact resistance.
Carbide rods are mainly used for drills, end mills, and reamer. It can also be used for cutting, stamping and measuring tools. It is used in the paper, packaging, printing, and non-ferrous metal processing industries. In addition, it is also widely used in the processing of high speed steel tools, carbide milling cutters, carbide tools, NAS cutting tools, aviation tools, carbide drills, milling core drills, high speed steel, taper milling cutters, metric Milling cutters, micro end milling cutters, hinge pilots, electronic cutters, step drills, metal cutting saws, double guaranteed diamonds, guns, angle cutters, carbide rotating jaws, carbide tools, etc. Use editing
Grade YG6, YG8, YG6X are more wear-resistant than MK6. It can be used for hard wood, aluminum alloy profiles, brass rods and cast iron, etc. YG10 grade is resistant to abrasion and knocking. It is used for processing hard wood, soft. Wood, ferrous and non-ferrous metals.
One, two or three holes, 30 or 40 degree spiral straight or twisted, or non-porous solids, they are used as manufacturing standards. Sub-micron grain grade YG10X end mills, drill bits and carbide rods are mainly used for precision cutting of non-ferrous metals and sub-micron particle grade YG6X cutting and glass fiber reinforced plastics, titanium alloys, super hardened steel fine grain grade YG8X and so on.
Carbide rods can be used not only for cutting and drilling tools (such as micron, twiste drills, drill vertical mining tool specifications), but also for input needles, various roll worn parts and structural materials. In addition, it can be used in many fields, such as machinery, chemical, petroleum, metallurgy, electronics and defense industries.



Grade description:



Grade Density(g/cmm³) Hardness(HRA) TRS(MPa)
K20 14.95 90.5 1900
K30KYL10.2 14.8 89.5 2200
YL10.2 14.5 91.8 2400
K40 15 87.5 2800



150mm Tungsten Carbide Rod Blanks Carbide Drill Rod Profiles SGS Certification 0

Product size:



Article number D(mm) Dia. Tolerance(mm) L(mm) L. tolerance(mm)
GW0120 1.2 +0.2 330 +2.0
GW0270 2.7 +0.2 330 +2.0
GW0370 3.7 +0.2 330 +2.0
GW0470 4.7 +0.2 330 +2.0
GW0570 5.7 +0.2 330 +2.0
GW0620 6.7 +0.2 330 +2.0
GW0770 7.7 +0.2 330 +2.0
GW0820 8.2 +0.3 330 +2.0
GW0920 9.2 +0.3 330 +2.0
GW1020 10.2 +0.3 330 +2.0
GW1170 11.7 +0.3 330 +2.0
GW1270 12.7 +0.3 330 +2.0
GW1370 13.7 +0.3 330 +2.0
GW1470 14.7 +0.3 330 +2.0
GW1570 15.7 +0.3 330 +2.0
GW1670 16.7 +0.4 330 +2.0
GW1870 18.7 +0.4 330 +2.0



150mm Tungsten Carbide Rod Blanks Carbide Drill Rod Profiles SGS Certification 1

Material performance characteristics:
1. High-quality ultra-fine tungsten carbide and imported cobalt powder are used as raw materials.
2, using the world's advanced low-pressure sintering preparation technology for standardized production.
3. It has high strength and high hardness.
4, has excellent red hardness, good wear resistance, high modulus of elasticity, high bending strength, good chemical stability (acid, alkali, high temperature oxidation), good impact toughness, low expansion coefficient, thermal conductivity, electrical conductivity and Similar characteristics of iron and its alloys.
5, high-tech precision advanced equipment: Germany imported 10MPa low-pressure sintering furnace sintering.
6, a unique new process: vacuum high temperature and high pressure sintering. The product is pressure sintered in the final stage, which greatly reduces the porosity, improves the compactness, and greatly improves the mechanical properties of the product.
7, product features: material grades, can be applied to different needs of use; complete specifications, accurate blank size (reduced processing, improve production efficiency).
