Co 10% Tungsten Polished H6 Solid Carbide Rods For Make All Kinds Of Milling Tools
Co:10% Polished Carbide Rod
We provide a wide range of tungsten carbide rods in different dimensions, like solid carbide rods, rod with single straight hole, double holes and also twisted holes. We also can produce the customized carbide rods, not only the sizes & shape, but also the grades based on your using purpose. If you need more specification of the tungsten carbie rod, please kindly contact us.
Application:
Main used for making varioius drill bits, automobile special cutter, printed circuit board, special cutters, engine special cutters, horologe, processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be used for making of cemented carbide stamping head,core bar & perforation tools.
Size of tungsten carbide rod is Diamter from 1.0mm to 30mm , lenght between 10-400 mm(standard length is 330 mm).
| Tungsten Carbide Rods with One Straight Hole | |||
| Type | OD | ID |
Length Tol. |
| Φ (4~8) × 330 | 0.5 | Φ 1.0 ~ Φ 1.5 | 5 |
| 0.2 | |||
| Φ (10~16) × 330 | 0.6 | Φ 1.0 ~ Φ 3.0 | 5 |
| Solid Tungsten carbide rods | ||||
| Type | Diameter | Length | ||
| D | Tol. | L | Tol. | |
| Φ (1.0~12.0) × 330 | Φ 1.0 ~ Φ 12.0 | 0.45 | 330 | 5 |
| 0.2 | 0 | |||
| Φ (12.5~20.0) × 330 | Φ 12.5 ~ Φ 20.0 | 0.6 | 330 | 5 |
| Tungsten Carbide Rods with Double Straight Holes | ||||||
| Type | OD Tol. | Hole Tol. |
Hole Pitch |
Hole Deviation | Length Tol. | |
| TK | Tol. | |||||
| Φ (4.2~10.3) × 330 | 0.3 | Φ 0.8 ~ Φ 1.4 | 3~5 | 0 | 0.15~0.2 | 5 |
| 0 | -0.3 | 0 | ||||
| Φ (11.3~16.3) × 330 | 0.4 | Φ 1.75 ~ Φ 2.0 | 6~8 | 0 | 0.28~0.4 | 5 |
| 0 | -0.5 | 0 | ||||

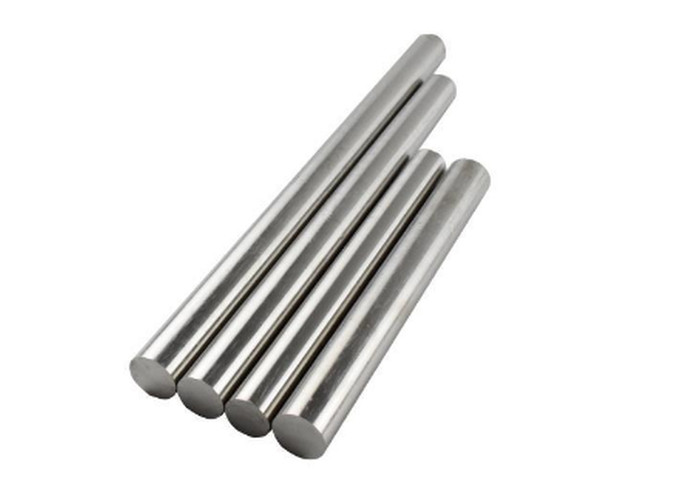

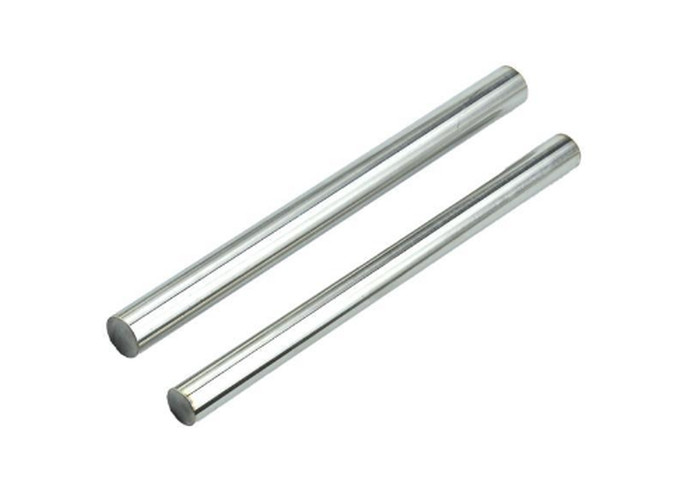

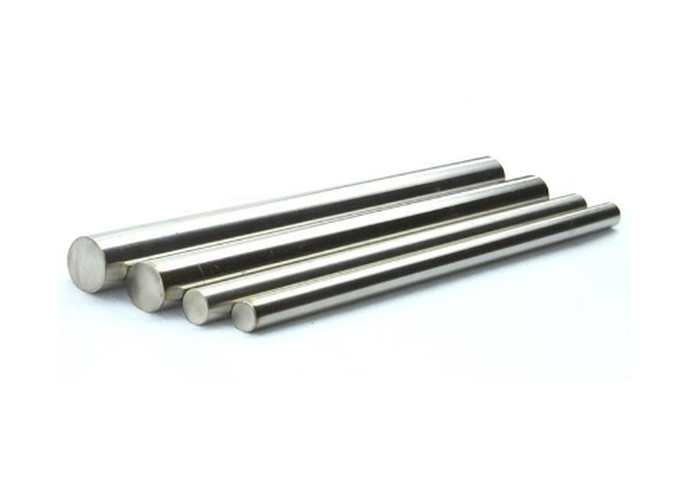

Product Show
We are waiting for your kindly inquiry!
