Description:
ONE FLUTE SPIPAL BITS FOR WOODS:Applicable: Solid wood,MDF ,Multilayer board and so on
Proposed engraving machine speed 20000 to turn / min, the feed rate of up to 6-8 M / min
Solid Carbide Single-edged Left Helical Milling cutter:Applicable: Plywood,Acrylic,PVC , Resin,,Aluminlum-plastic board, density board. Feature: special grinding and high-capacity flutes, have made it no crumbss attached,
low heat and high-quality finish under high-speed cutting. it's been widely applies to
the industries such as crafts electronics, advertising, decoration and wood processing,
specially suitable for batch processing with high requirement.

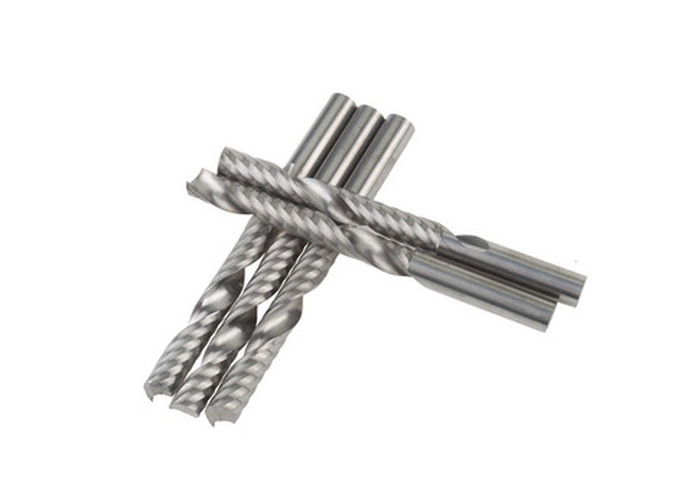

ONE FLUTE SPIRAL BITS: Applicable: Acrylic,PVC, density board,MDF,Plastic,Wood,Compssite board,
lotus board
Features: crumbs fast-removing and helical cutting, increase in the processing
speed while garantee in quality.

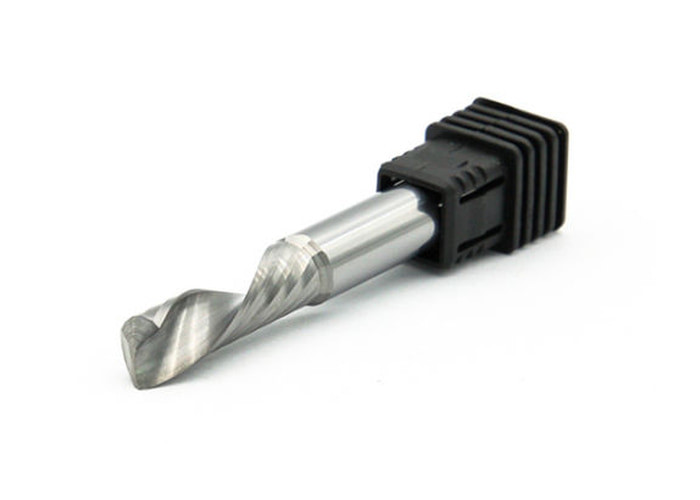

ONE FLUTE SPIRAL BITS FOR ALUMINUM:Applicable: Aluminium Alloy, Copper Alloy, Magnesium Alloy. Low power spindle,high speed rotation above 16000 per minute processing. Features: The cutter is specifically designed for high-speed cutting of aluminium, copper and gold, etc, with excellent finish.
ONE FLUTE SPIRAL BITS FOR ALUMINUM: Applicable: Aluminium Alloy, Magnesium Alloy. Low power spindle,high speed rotation above 16000 per minute processing,Dry cutting,smooth surface,high durability
Features: The cutter is specifically designed for high-speed cutting of aluminium, copper and gold, etc, with excellent finish.
| NO | SHK | CED | CEL | OVL |
| 1fudo3.12 | 3.175 | 3.175 | 12 | 38 |
| 1fudo3.15 | 3.175 | 3.175 | 15 | 38 |
| 1fudo3.17 | 3.175 | 3.175 | 17 | 38 |
| 1fudo3.22 | 3.175 | 3.175 | 22 | 45 |
| 1fudo417 | 4 | 4 | 17 | 45 |
| 1fudo422 | 4 | 4 | 22 | 45 |
| 1fudo425 | 4 | 4 | 25 | 50 |
| 1fudo432 | 4 | 4 | 32 | 60 |
| 1fudo517 | 5 | 5 | 17 | 50 |
| 1fudo522 | 5 | 5 | 22 | 50 |
| 1fudo617 | 6 | 6 | 17 | 50 |
| 1fudo622 | 6 | 6 | 22 | 50 |
| 1fudo625 | 6 | 6 | 25 | 50 |
| 1fudo632 | 6 | 6 | 32 | 60 |
| 1fudo825 | 8 | 8 | 25 | 60 |
| 1fudo835 | 8 | 8 | 35 | 70 |
| 1fudo845 | 8 | 8 | 45 | 80 |
| 1fudo1035 | 10 | 10 | 35 | 75 |
| 1fudo1045 | 10 | 10 | 45 | 90 |
| 1fudo1052 | 10 | 10 | 52 | 100 |
Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium, alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER
Coating
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AiTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiXco | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
Payment
T/T, Western Union, Paypal?(Choose your convenient way)
Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China.(choose your convenient way)
Grewin carbide waiting for your kindly reply.
