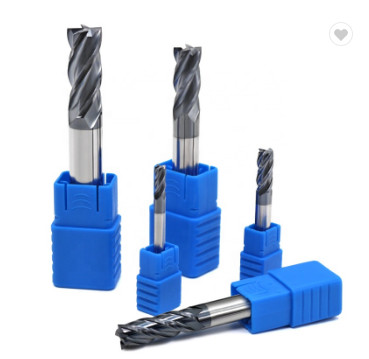

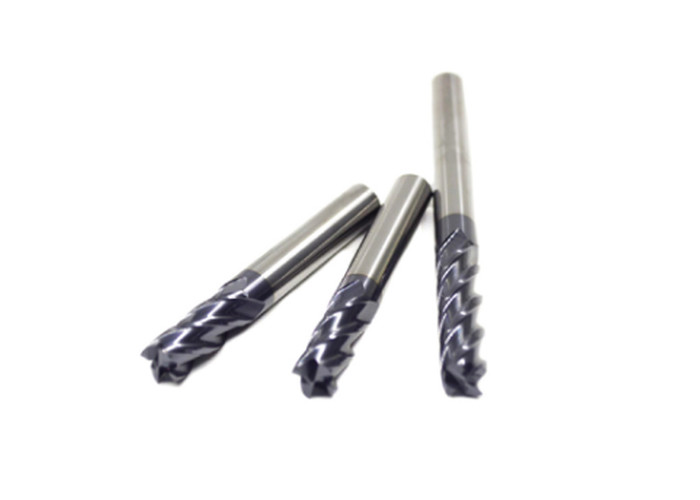

Products Description
Cutting Form: Flat, Square, Ball nose, Corner Radius, Taper, etc
Flutes No. 1-6
| HRC45 | HRC55 | HRC60 | HRC65 |
| Grain Size:0.6um Co:10 % Flexural strength:3350N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.4um Co:12.5 % Flexural strength:4300N/mm2 |
Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Coating
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
| TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
| CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
Standard sizes
2 flutes Flat End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium, alloy, harden steel, stainless steel, HSS etc.
| Code No. | Diamter D |
Cutting length L |
Total length L |
Shank D |
Flutes Z |
| 2GW1-01002050 | 1 | 3 | 50 | 4 | 2 |
| 2GW1-01504050 | 1.5 | 4 | 50 | 4 | 2 |
| 2GW1-02050500 | 2 | 5 | 50 | 4 | 2 |
| 2GW1-02507050 | 2.5 | 7 | 50 | 4 | 2 |
| 2GW1-03008050 | 3 | 8 | 50 | 4 | 2 |
| 2GW1-04010050 | 4 | 10 | 50 | 4 | 2 |
| 2GW1-04015075 | 4 | 15 | 75 | 4 | 2 |
| 2GW1-04020100 | 4 | 20 | 100 | 4 | 2 |
| 2GW1-05012050 | 5 | 13 | 50 | 6 | 2 |
| 2GW1-06015050 | 6 | 15 | 50 | 6 | 2 |
| 2GW1-06020075 | 6 | 20 | 75 | 6 | 2 |
| 2GW1-06020100 | 6 | 30 | 100 | 6 | 2 |
| 2GW1-06020060 | 8 | 20 | 60 | 8 | 2 |
| 2GW1-08025075 | 8 | 25 | 75 | 8 | 2 |
| 2GW1-08025100 | 8 | 35 | 100 | 8 | 2 |
| 2GW1-010025075 | 10 | 25 | 75 | 10 | 2 |
| 2GW1-010040100 | 10 | 40 | 100 | 10 | 2 |
| 2GW1-012020075 | 12 | 30 | 75 | 12 | 2 |
| 2GW1-012040100 | 12 | 40 | 100 | 12 | 2 |
| 2GW1-014020080 | 14 | 30 | 80 | 14 | 2 |
| 2GW1-014100100 | 14 | 40 | 100 | 14 | 2 |
| 2GW1-016040100 | 16 | 40 | 100 | 16 | 2 |
| 2GW1-018040100 | 18 | 40 | 100 | 18 | 2 |
| 2GW1-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW1-06040150 | 6 | 40 | 150 | 6 | 2 |
| 2GW1-08050150 | 8 | 50 | 150 | 8 | 2 |
| 2GW1-010050150 | 10 | 50 | 150 | 10 | 2 |
| 2GW1-012050150 | 12 | 50 | 150 | 12 | 2 |
| 2GW1-014060150 | 14 | 60 | 150 | 14 | 2 |
| 2GW1-016060150 | 16 | 60 | 150 | 16 | 2 |
| 2GW1-018060150 | 18 | 60 | 150 | 18 | 2 |
| 2GW1-020060150 | 20 | 60 | 150 | 20 | 2 |
3 flutes Flat End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium, alloy, harden steel, stainless steel, HSS etc.
| Code No. | Diamter D |
Cutting length L |
Total length L |
Shank D |
Flutes Z |
| 3GW1-01003050 | 1 | 3 | 50 | 4 | 3 |
| 3GW1-01504050 | 1.5 | 4 | 50 | 4 | 3 |
| 3GW1-02050500 | 2 | 5 | 50 | 4 | 3 |
| 3GW1-02507050 | 2.5 | 7 | 50 | 4 | 3 |
| 3GW1-03008050 | 3 | 8 | 50 | 4 | 3 |
| 3GW1-04010050 | 4 | 10 | 50 | 4 | 3 |
| 3GW1-04015075 | 4 | 15 | 75 | 4 | 3 |
| 3GW1-04020100 | 4 | 20 | 100 | 4 | 3 |
| 3GW1-05013050 | 5 | 13 | 50 | 6 | 3 |
| 3GW1-06015050 | 6 | 15 | 50 | 6 | 3 |
| 3GW1-06020075 | 6 | 20 | 75 | 6 | 3 |
| 3GW1-06030100 | 6 | 30 | 100 | 6 | 3 |
| 3GW1-06020060 | 8 | 20 | 60 | 8 | 3 |
| 3GW1-08025075 | 8 | 25 | 75 | 8 | 3 |
| 3GW1-08035100 | 8 | 35 | 100 | 8 | 3 |
| 3GW1-010025075 | 10 | 25 | 75 | 10 | 3 |
| 3GW1-010040100 | 10 | 40 | 100 | 10 | 3 |
| 3GW1-012030075 | 12 | 30 | 75 | 12 | 3 |
| 3GW1-012040100 | 12 | 40 | 100 | 12 | 3 |
| 3GW1-014030080 | 14 | 30 | 80 | 14 | 3 |
| 3GW1-014100100 | 14 | 40 | 100 | 14 | 3 |
| 3GW1-016040100 | 16 | 40 | 100 | 16 | 3 |
| 3GW1-018040100 | 18 | 40 | 100 | 18 | 3 |
| 3GW1-020040100 | 20 | 40 | 100 | 20 | 3 |
| 3GW1-06040150 | 6 | 40 | 150 | 6 | 3 |
| 3GW1-08050150 | 8 | 50 | 150 | 8 | 3 |
| 3GW1-010050150 | 10 | 50 | 150 | 10 | 3 |
| 3GW1-012050150 | 12 | 50 | 150 | 12 | 3 |
| 3GW1-014060150 | 14 | 60 | 150 | 14 | 3 |
| 3GW1-016060150 | 16 | 60 | 150 | 16 | 3 |
| 3GW1-018060150 | 18 | 60 | 150 | 18 | 3 |
| 3GW1-020060150 | 20 | 60 | 150 | 20 | 3 |
| Code No. | Diamter D |
Cutting length L |
Total length L |
Shank D |
Flutes Z |
| 4GW1-01003050 | 1 | 3 | 50 | 4 | 4 |
| 4GW1-01504050 | 1.5 | 4 | 50 | 4 | 4 |
| 4GW1-02050500 | 2 | 5 | 50 | 4 | 4 |
| 4GW1-02507050 | 2.5 | 7 | 50 | 4 | 4 |
| 4GW1-03008050 | 3 | 8 | 50 | 4 | 4 |
| 4GW1-04010050 | 4 | 10 | 50 | 4 | 4 |
| 4GW1-04015075 | 4 | 15 | 75 | 4 | 4 |
| 4GW1-04020100 | 4 | 20 | 100 | 4 | 4 |
| 4GW1-05013050 | 5 | 13 | 50 | 6 | 4 |
| 4GW1-06015050 | 6 | 15 | 50 | 6 | 4 |
| 4GW1-06020075 | 6 | 20 | 75 | 6 | 4 |
| 4GW1-06030100 | 6 | 30 | 100 | 6 | 4 |
| 4GW1-06020060 | 8 | 20 | 60 | 8 | 4 |
| 4GW1-08025075 | 8 | 25 | 75 | 8 | 4 |
| 4GW1-08035100 | 8 | 35 | 100 | 8 | 4 |
| 4GW1-010025075 | 10 | 25 | 75 | 10 | 4 |
| 4GW1-010040100 | 10 | 40 | 100 | 10 | 4 |
| 4GW1-012030075 | 12 | 30 | 75 | 12 | 4 |
| 4GW1-012040100 | 12 | 40 | 100 | 12 | 4 |
| 4GW1-014030080 | 14 | 30 | 80 | 14 | 4 |
| 4GW1-014100100 | 14 | 40 | 100 | 14 | 4 |
| 4GW1-016040100 | 16 | 40 | 100 | 16 | 4 |
| 4GW1-018040100 | 18 | 40 | 100 | 18 | 4 |
| 4GW1-020040100 | 20 | 40 | 100 | 20 | 4 |
| 4GW1-06040150 | 6 | 40 | 150 | 6 | 4 |
| 4GW1-08050150 | 8 | 50 | 150 | 8 | 4 |
| 4GW1-010050150 | 10 | 50 | 150 | 10 | 4 |
| 4GW1-012050150 | 12 | 50 | 150 | 12 | 4 |
| 4GW1-014060150 | 14 | 60 | 150 | 14 | 4 |
| 4GW1-016060150 | 16 | 60 | 150 | 16 | 4 |
| 4GW1-018060150 | 18 | 60 | 150 | 18 | 4 |
| 4GW1-020060150 | 20 | 60 | 150 | 20 | 4 |
Packing
Brand Laser printed on cutter shank, 1 pcs in a plastic tube, 10 pcs a group
Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.
Grewin carbide waiting for your kindly inquiry.
