For Milling All Metal
Product information:
1) Types: square end mill, ball nose end mill, corner radius end mill, roughing end mill
2) Size: Diameter 1.0mm-20mm standard and non-standard.
3) Type of flute: (standard and non standard 2-4 flute) deep groove, round head, end angle R.
4)Helix angle:45°.
5) Material: tungsten carbide
6) Cosmetic: TiAIN, ALTiN, TiN coating.
7) Workpiece: carbon steel, alloy steel, cast steel, tooling steel, mould steel, aluminum alloy steel, non ferrous alloy
8) We also can produce special tools according to requirements of drawings or samples.
Advantages
1. Higher hardness,higher wear resistance,higher toughness,better deflection and fracture resistance,results in a long life and good size accuracy
2. Custom oriented tool designing,innovated from Germany technology,based on 100% custom's satisfaction motto
3. Abundant tool choices,suitable for every aspect of today's routing work requirements
4. Fully automatic manufacturing with famous Switzerland facilities under tough process control.
5. Critial quality inspection control under the criteria of ISO
Total we have 4 series.
1) HRC 45----for brass, cast iron, and Alu.
2) HRC 50---for steel, stainless steel.
3)HRC 55----for steel, stainless steel.
4) HRC 63---high resistant steel.
Products Features
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer.
2. Smooth and Wide Flute: Smooth and wide flute will remove the cuttings more easily.
3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing.
4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized.
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten.
6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved.
|
Standard Carbide End Mill Specification
(HRC:45/50/65)
|
| Diameter |
Flute Length |
Overall Length |
Shank Diameter |
| 1 |
2.5 |
50 |
4 |
| 1.5 |
3.75 |
50 |
4 |
| 2 |
5 |
50 |
4 |
| 2.5 |
6.5 |
50 |
4 |
| 3 |
8 |
50 |
4 |
| 3.5 |
9 |
50 |
4 |
| 4 |
10 |
50 |
4 |
| 4.5 |
11.5 |
50 |
6 |
| 5 |
12.5 |
50 |
6 |
| 6 |
15 |
50 |
6 |
| 7 |
20 |
60 |
8 |
| 8 |
20 |
60 |
8 |
| 9 |
25 |
75 |
10 |
| 10 |
25 |
75 |
10 |
| 11 |
30 |
75 |
12 |
| 12 |
30 |
75 |
12 |
| 14 |
35 |
80 |
14 |
| 16 |
45 |
100 |
16 |
| 18 |
45 |
100 |
18 |
| 20 |
45 |
100 |
20 |

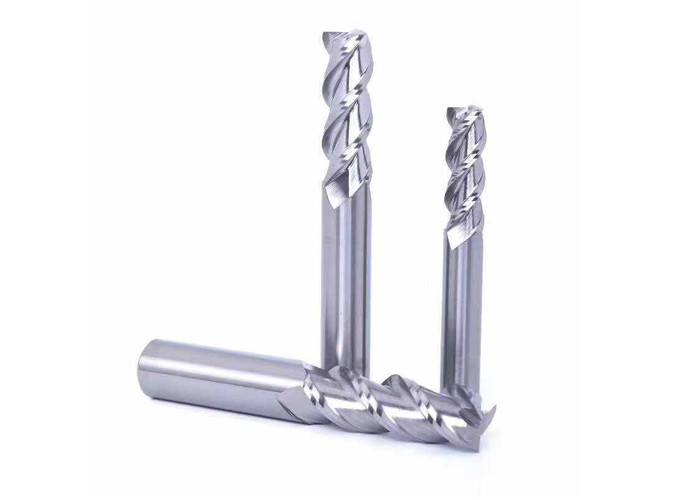

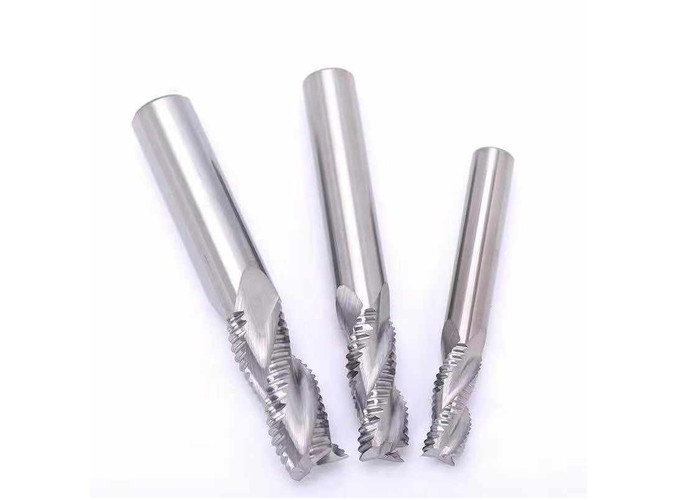

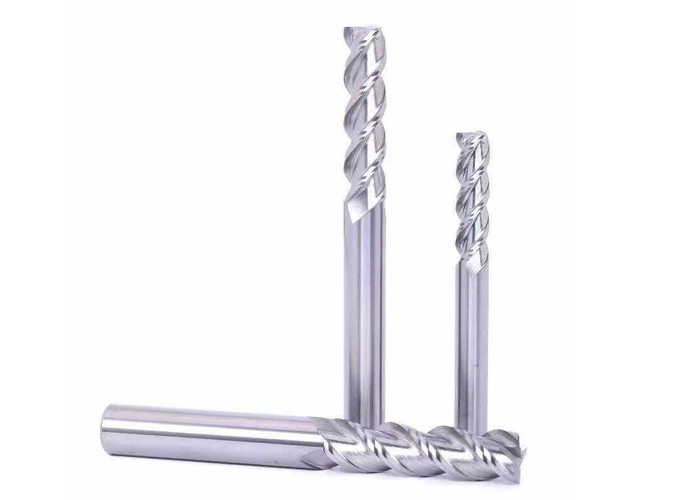

Product Show
Grewin Carbide Team Are Waiting For Your Inquiry!
