5mm Tungsten Solid Carbide Ball End Mill Cutter HRC55 TiAlN Coating
10pcs
MOQ
USD0.96-USD55.8
Price
5mm Tungsten Solid Carbide Ball End Mill Cutter HRC55 TiAlN Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

TiAlN Solid Carbide Ball End Mill

,

HRC55 Solid Carbide Ball End Mill

,

5mm carbide end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
R Angle: R0.5-R5mm
Type: Ball Nose End Mill
HRC: 55
Coating: TiAlN
Usage: Milling Tool
Material: Carbide
Diameter: Customized
Length: Customized
Product Description



R0.5 - R5mm Ball Nose Tungsten Carbide End Mill Cutter HRC55 TiAlN Coating



Description:
R1-R5mm Ball Nose Tungsten Carbide End Mill Cutter HRC55 TiAlN Coating End Milling Cutter CNC Tool

Specification:

Material: Carbide tungsten steel base metal
Coating: Black TiAlN Nano Coated
Flute: Ball Nose

Highest cutting hardness: HRC55



Features:
Special Ball nose design provides small chip loads and quicker removal, more sharp.
New TiAlN nano coating, hardness up to 55 HRC for general steel alloy steel mold steel.
Fit for milling from roughing to finishing one time(≤55HRC), reduce tool changing times.
Chamfer design, easy to install

Package Included:
1 x End Mill Cutter





Radius
(mm)
Diameter of Shank
(mm)
Blade Length
(mm)
Total Length
(mm)
R0.5 4mm 3 50
R0.75 4mm 4 50
R1 4mm 6 50
R1.25 4mm 8 50
R1.5 4mm 8 50
R2 4mm 10 50
R2.5 6mm 13 50
R3 6mm 15 50
R4 8mm 20 60
R5 10mm 25 75




Product show

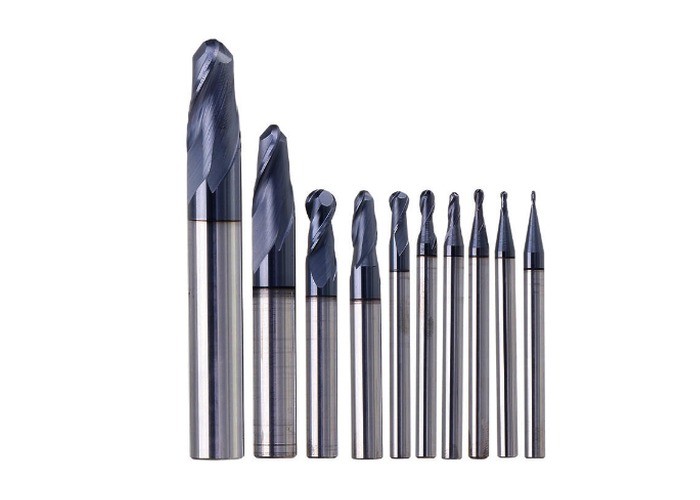

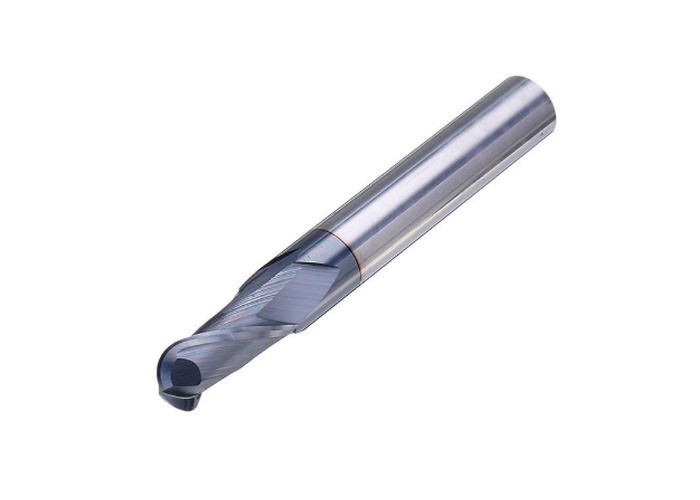

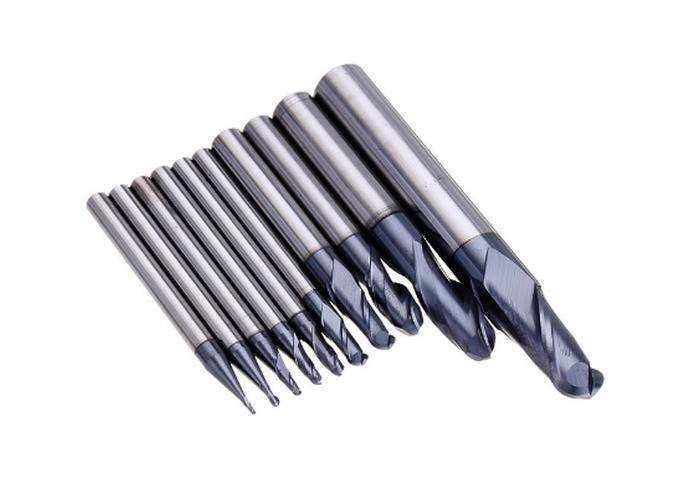

5mm Tungsten Solid Carbide Ball End Mill Cutter HRC55 TiAlN Coating 0

5mm Tungsten Solid Carbide Ball End Mill Cutter HRC55 TiAlN Coating 1
