Coating
Coating |
Color |
Coating Temperature |
Thickness (um) |
HV |
Application Temperature |
Friction coefficient |
TiAlN |
Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
AlTiN | Black | <600 °C | 3-5 | 3500 | 900 °C | 0.3 |
TiSiN | Copper | <600 °C | 3-5 | 3500 | 1500 °C | 0.4 |
NaNo | Blue | <600 °C | 3-5 | 3800 | 1200 °C | 0.4 |
CrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |

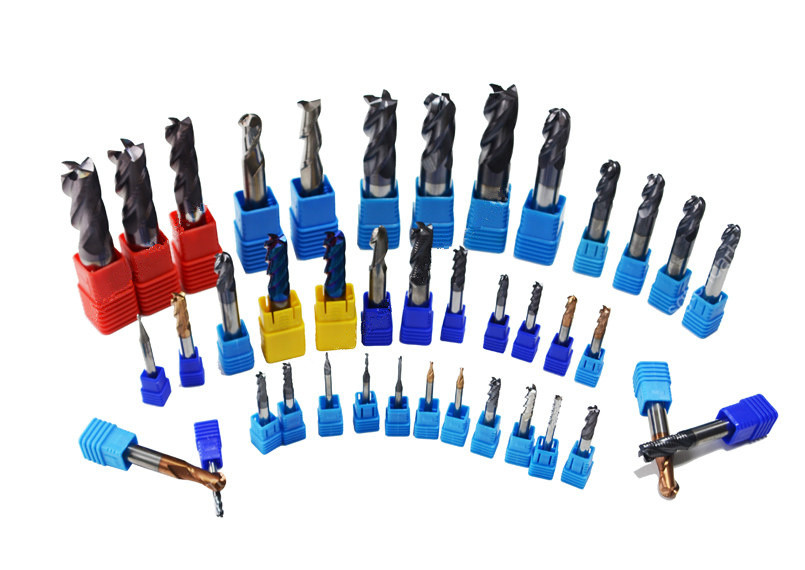

4 flutes Flat End Mill
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: Original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium, alloy, harden steel, stainless steel, HSS etc.
Code No. | Diamter D |
Cutting length L |
Total length L |
Shank D |
Flutes Z |
4GW1-01003050 | 1 | 3 | 50 | 4 | 4 |
4GW1-01504050 | 1.5 | 4 | 50 | 4 | 4 |
4GW1-02050500 | 2 | 5 | 50 | 4 | 4 |
4GW1-02507050 | 2.5 | 7 | 50 | 4 | 4 |
4GW1-03008050 | 3 | 8 | 50 | 4 | 4 |
4GW1-04010050 | 4 | 10 | 50 | 4 | 4 |
4GW1-04015075 | 4 | 15 | 75 | 4 | 4 |
4GW1-04020100 | 4 | 20 | 100 | 4 | 4 |
4GW1-05013050 | 5 | 13 | 50 | 6 | 4 |
4GW1-06015050 | 6 | 15 | 50 | 6 | 4 |
4GW1-06020075 | 6 | 20 | 75 | 6 | 4 |
4GW1-06030100 | 6 | 30 | 100 | 6 | 4 |
4GW1-06020060 | 8 | 20 | 60 | 8 | 4 |
4GW1-08025075 | 8 | 25 | 75 | 8 | 4 |
4GW1-08035100 | 8 | 35 | 100 | 8 | 4 |
4GW1-010025075 | 10 | 25 | 75 | 10 | 4 |
4GW1-010040100 | 10 | 40 | 100 | 10 | 4 |
4GW1-012030075 | 12 | 30 | 75 | 12 | 4 |
4GW1-012040100 | 12 | 40 | 100 | 12 | 4 |
4GW1-014030080 | 14 | 30 | 80 | 14 | 4 |
4GW1-014100100 | 14 | 40 | 100 | 14 | 4 |
4GW1-016040100 | 16 | 40 | 100 | 16 | 4 |
4GW1-018040100 | 18 | 40 | 100 | 18 | 4 |
4GW1-020040100 | 20 | 40 | 100 | 20 | 4 |
4GW1-06040150 | 6 | 40 | 150 | 6 | 4 |
4GW1-08050150 | 8 | 50 | 150 | 8 | 4 |
4GW1-010050150 | 10 | 50 | 150 | 10 | 4 |
4GW1-012050150 | 12 | 50 | 150 | 12 | 4 |
4GW1-014060150 | 14 | 60 | 150 | 14 | 4 |
4GW1-016060150 | 16 | 60 | 150 | 16 | 4 |
4GW1-018060150 | 18 | 60 | 150 | 18 | 4 |
4GW1-020060150 | 20 | 60 | 150 | 20 | 4 |
Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group
Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations.We have discount on shipping cost from our courier companies, such as FEDEX,DHL,TNT, UPS etc.
