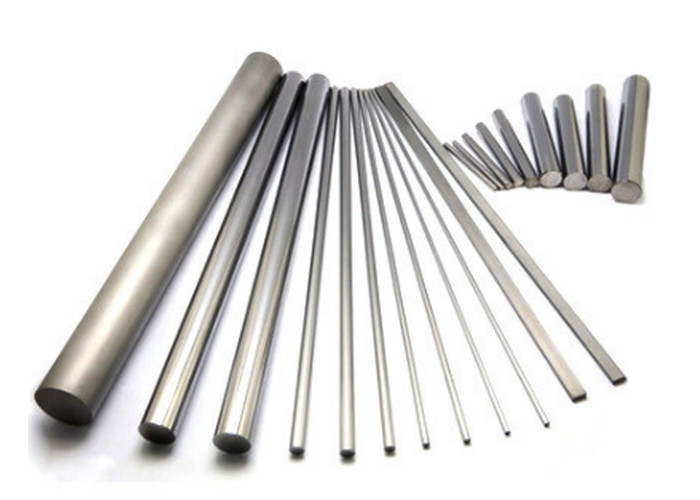

Solid Carbide And Cermet Rods In Various Grades And Sizes For Every Application
Detail Information
Tolerance:
H5,h6,h7
Item Name:

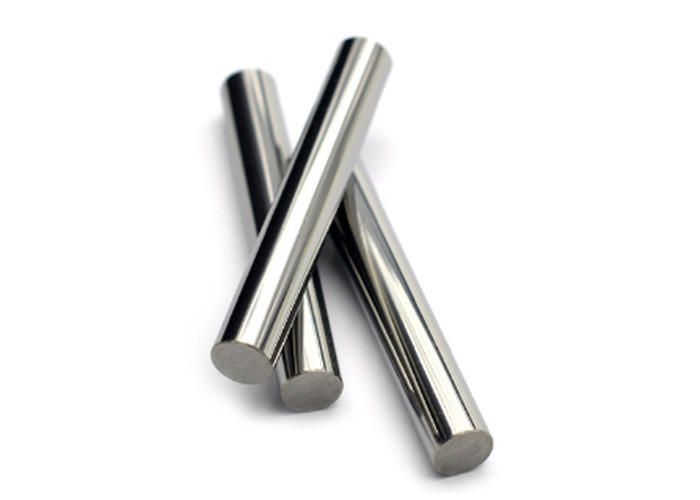

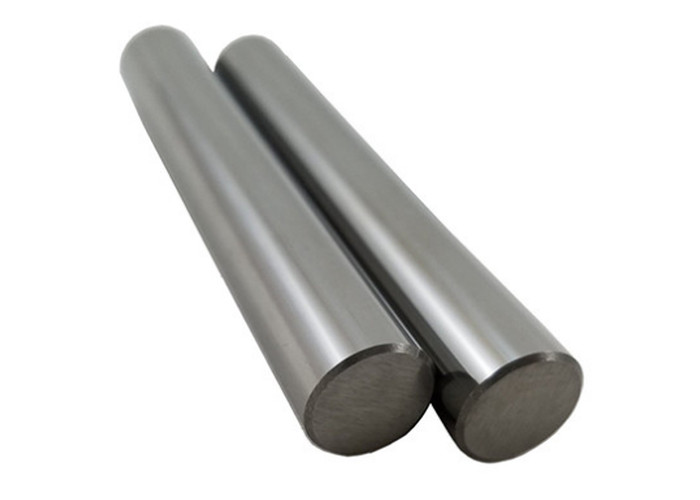

Solid Carbide Round Bar
Material:
WC + Cobalt,100% Original Material
Surface Treatment:
Mirror Polished
Prodution Volume:
8-10 Tons Per Month
Feedback:
Within 6 Hours
Grit:
Crushed Tungsten Carbide Grits
Advantages:
Full Dimension,fast Delivery And Stable Quality.
Remarks:
We Could Totally Produce Products As Your Drawing.
Application:
Wear Parts For Petroleum Industry
Solid cemented carbide rods are widely used for high-quality solid carbide tools such as milling cutters, end mills, drills or reamers.
Specialized in tungsten carbide round bars, with an outstanding product line of solid and coolant carbide rod, we manufacture and stock unground and ground carbide rods for you. Our h6 polished chamfered carbide rods are most popular.
Our grade coverage ISO K05 to K40, from machining aluminium, steel, non-ferrous metals, to titanium or we develop grade for your applications. Our 10% cobalt grade MT10 is widely used for machining aluminium and steel or general application. Our 12%cobalt grade MT12 is especially suitable for machining hard material like stainless steel and composite material. All these grades are made from Ultra-fine grain cemented carbide
Property of our tungsten carbide rods
Content: WC 90% Binder 10%
Grain size: 0.8um
Density: 14.50-14.60 g/cm³
Hardness: ≥HRA91.3
T.R.S≥3600N/m㎡
Brief Introduction of Tungsten Carbide Rods:
Grade: K10/K20/K30
Size: Customizable
Standard: GB
Certification: ISO9001
Dimensions of solid tungsten carbide rods
Please contact us for more information on carbide rods with coolant hole.
|
Dia(mm)
|
Tol of Dia (mm) | Length(mm) | Tol of Length(mm) |
|
0.5-12
|
+0.2/+0.4 | 1000/330/300/100 | 0/+5.0 |
|
12.5-20
|
+0.3/+0.6 | 1000/330/300/100 | 0/+5.0 |
|
20-40
|
+0.4/+0.8 | 1000/330/300/100 | 0/+5.0 |
Quality grade of tungsten carbide rods
| ISO grade |
Grain size (um) |
Binder |
density (g/cm³) |
Hardness (HV30) |
Hardness (HRA) |
T.R.S (N/m㎡) |
| K05-K10 | 0.4 | 6 | 14.9 | 1950 | 93.0 | 2800 |
| K05-K10 | 1.2 | 6 | 14.8 | 1510 | 91.0 | 2600 |
| K10-K20 | 0.8 | 8 | 14.6 | 1610 | 92.0 | 3000 |
| K20-K30 | 0.8 | 10 | 14.4 | 1610 | 92.0 | 3800 |
| K20-K30 | 0.6 | 10 | 14.5 | 1570 | 91.5 | 3600 |
| K30-K40 | 0.4 | 12 | 14.2 | 1610 | 92.0 | 4000 |
| K30-K40 | 1.5 | 15 | 14.2 | 1150 | 87.5 | 3200 |
Application of tungsten carbide rods
1.Tungsten carbide rods are carbide blank material of various carbide cutting tools,include carbide micro
drills,carbide reamers,carbide endmills,etc.
2.Tungsten carbide rods are used as carbide wear parts for machinery accessory.
3.Tungsten carbide rods are used as rotors,carbide pins,carbide scriber pins,etc.
Welcome for your inquiry!
