Versatile Rough Boring Head Straight Shank With Large Capacity Range

2pc
MOQ
20—300 USD
Price
Versatile Rough Boring Head Straight Shank With Large Capacity Range
Features Gallery Product Description Chat Now
Features
Specifications
Mounting Type: Screw
Compatible With: Milling Machines
Insert Material: Carbide
Shank Type: Straight
Type: Adjustable
Connection Form: Standard
Highlight:

Versatile Rough Boring Head

,

Versatile precision boring tool

,

Straight Shank Rough Boring Head
Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Payment & Shipping Terms
Delivery Time: 7-10 days
Supply Ability: 1000000 Piece/Pieces per Month
Product Description
Blind Hole Type Rough Boring Head
Product Specifications
Mounting Type Screw
Compatible With Milling Machines
Insert Material Carbide
Shank Type Straight
Type Adjustable
Connection Form Standard
Product Description

This adjustable rough boring head is designed for precision boring operations on milling machines, suitable for both single and double edge boring applications.

  • Minimum processing diameter of 20mm with adjustable range for various requirements

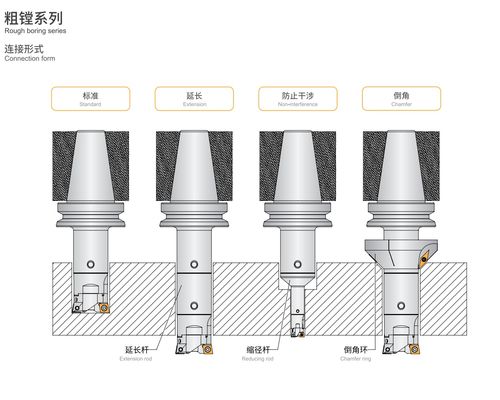

  • Processing depth can be extended using extension rods
  • Clear side scales enable easy adjustment without requiring tool presetter
  • Carbide inserts provide durability and precision cutting performance
Technical Parameters
Processing Diameter (D) KD.NO. Blade Seat Model D1 L Lock Screw Combination Weight (kg)
20-26 CMR20-26KD1(RSC2026) 1 CMR20-26KD1 RSC-2026 18.7 32.5 RMM4xl6
25-33 CMR25-33KD2(RSC2533) 2 CMR25-33KD2 RSC-2533 23.5 35.5 RMM5X16
32-42 CMR32-42KD3(RSC3242) 3 CMR32-42KD3 RSC-3242 30.5 40 RMM6X20
41-51 CMR32-42KD3(RSC4151) RSC-4151 0.21
41-54 CMR41-54KD4(RSC4154) 4 CMR41-54KD4 RSC-4154 38.5 47 RMM8X25 0.38
53-66 CMR41-54KD4(RSC5366) RSC-5366 0.42
53-70 CMR53-70KD5 RSC5370 5 CMR53-70KD5 RSC-5370 49.5 57 RMM10X30 0.75
69-86 CMR53-7 KD5(RSC6986) RSC-6986 0.87
68-90 CMR68-110KD6(RSC6890) 6 CMR68-110KD6 RSC-6890 64 71 RMM10X35
88-110 CMR68-110KD6(RSC88110) RSC-88110 1.73
98-126 CMR98-153KD6(RSC98126) 6 CMR98-153KD6 RSC-98126 93 71 RMM12X40 2.32
125-153 CMR98-153KD6 RSC125153 RSC-125153 2.58
98-126 CMR98-153KD7(RSC98126) 7 CMR98-153KD7 RSC-98126 93 87 3.85
125-153 CMR98-153KD7(RSC125153) RSC-125153 4.11
148-176 CMR148-203KD6(RSC98126) 6 CMR148-203KD6 RSC-98126 138 71 2.9
175-203 RSC-125153 3.15
