Grinding Solid Cemented Carbide Rods With Coolan / One Side Chamfer Rod
10pcs
MOQ
USD5.21/pcs
Price
Grinding Solid Cemented Carbide Rods With Coolan / One Side Chamfer Rod
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Without Brand
Certification: ISO9001, SGS
Model Number: 3,4,6,8,10*330
High Light:

tungsten alloy rod

,

tungsten metal rod

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 500000pcs/Month
Specifications
Tolerance: H6
Surface: Grinding Or Ungrinding, Polish Or Unpolish
Material: Tungsten Carbide
Grade: K10, K20, YG8, YG10, YG6X
Usage: Carbide End Mill/ Carbide Drill
Shape: Round Rod
Product Description





With the excellent property, carbide rods are widely used in the cutting tools industry, such as end mills, drills, reamers, milling tools,etc.

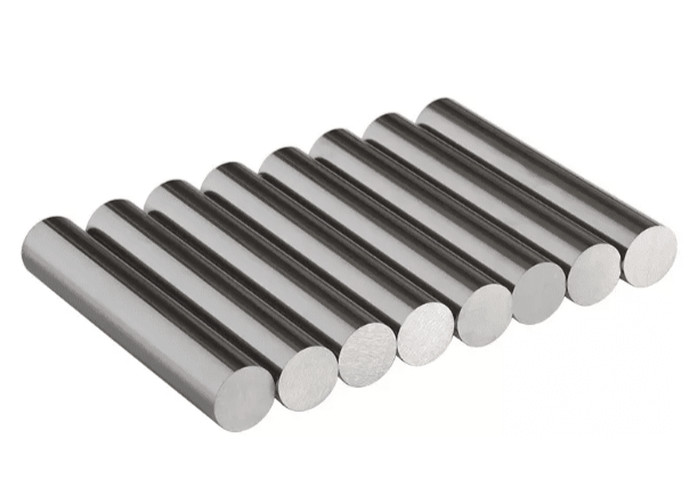

1, Sintered carbide rods(Blanks)

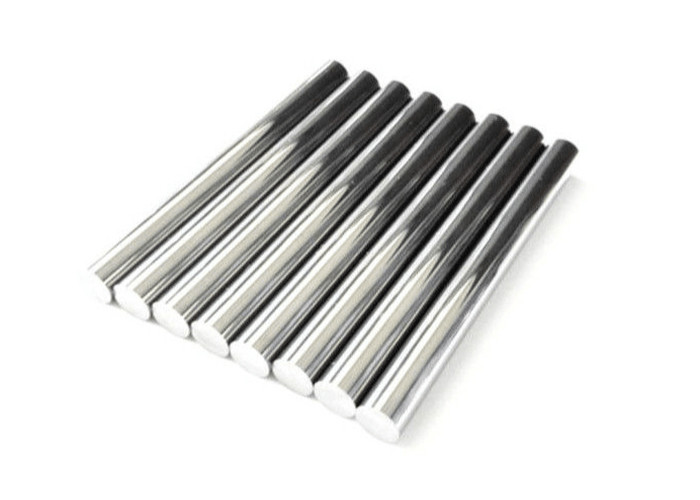

2, Carbide rods grounded to h6 (or any required tolerance)

3, Chamfer carbide rods(one or both ends)

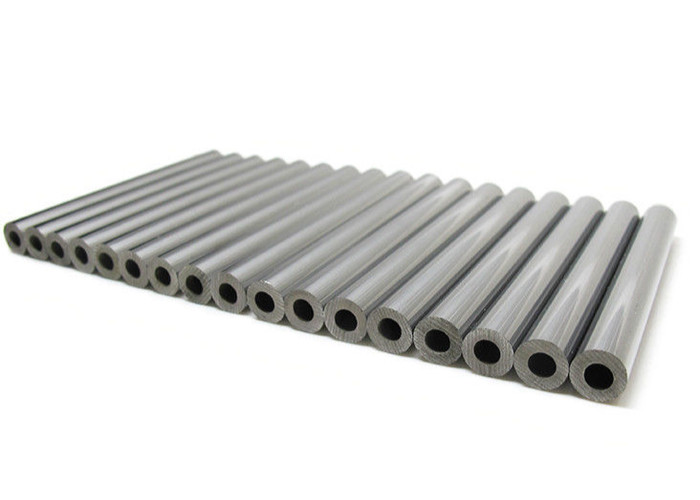

4, Carbide rods with single straight holes (extruded)

5, Carbide rods with double straight holes

6, Carbide rods with helical holes

We supply a wide range of grades and sizes of carbide rods to meet any of your applications. The quality of WC material, our service and competitive prices will be guaranteed, to Increase your productivity and control the cost. We are the right choice!





Grinding Solid Cemented Carbide Rods With Coolan / One Side Chamfer Rod 0

Unground Ground h6 TK Tol. D Tol. L a
D Tol.
6.3

+0.3/0
6.0 1.5 0/-0.20 0.80




±0.15







330
0.15
7.3 7.0 1.5 0.80 0.15
8.3 8.0 2.6




0/-0.30
1.00 0.15
9.3 9.0 2.6 1.00 0.20
10.3 10.0 2.6 1.00 0.20
11.3

+0.4/0
11.0 3.5 1.20 0.28
12.3 12.0 3.5 1.20 0.30
13.3 13.0 3.5 1.20 0.34
14.3 14.0 5.0 1.50 0.37
15.3 15.0 5.0 1.50 0.40
16.3 16.0 5.0 1.50

±0.20
0.40
17.3
+0.5/0
17.0 6.2 2.00 0.47
18.3 18.0 6.2 2.00 0.50
19.3 19.0 6.2 2.00 0.50
20.3 20.0 6.2 0/-0.40 2.00 ±0.30 0.50

<span color:#333333;"="" style="box-sizing: border-box; font-size: 11pt;">

Grinding Solid Cemented Carbide Rods With Coolan / One Side Chamfer Rod 1



More information, please kindly contact us.



Waiting for your kindly inquiry.



Best regards

GREWIN CARBIDE
