Solid Metal Cutting 4 Fluted Tungsten Carbide End Mill
10pcs
MOQ
negotiable
Price
Solid Metal Cutting 4 Fluted Tungsten Carbide End Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

25mm ball nose cutter

,

25mm end mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Flute Number: 4
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Sample: Free
Production Period: 7-10 Days
Cutting Form: Ball Nose, Corner Radius
Usage: General High Speed Cutting
Coating: Blue Nano Coating
Flute Diameter: 0.5mm-25mm,Customized
Product Description

Our Carbide Endmills are ground by imported high precision CNC Tool ginder that make our endmills pefect in tolernace, precision, gometry and concentricity,which helps the tool peformance and production efficiency.

Longer Tool life, Lower cost, Higher Efficiency are our permanent Aim toward the Endmills and other Carbide or Tools.

Standard Sizes of the 2 Fluted Carbide Endmills

Specifications (mm)
Dc Ds Lc L
Φ0.5 4 1 50
Φ0.8 4 2 50
Φ1 4 3 50
Φ1.5 4 5 50
Φ2 4 5 50
Φ2.5 4 8 50
Φ3 4 8 50
Φ3.5 4 10 50
Φ4 4 10 50
Φ5 6 15 50
Φ6 6 15 50
Φ8 8 20 60
Φ10 10 25 75
Φ12 12 30 75
Φ14 14 35 83
Φ16 16 40 100
Φ18 18 40 100
Φ20 20 45 100
Φ25 25 45 110
** Coated and Uncoated carbide end mills are both available as per the specific demand and application
** Custom-size are also available as per the requirement.

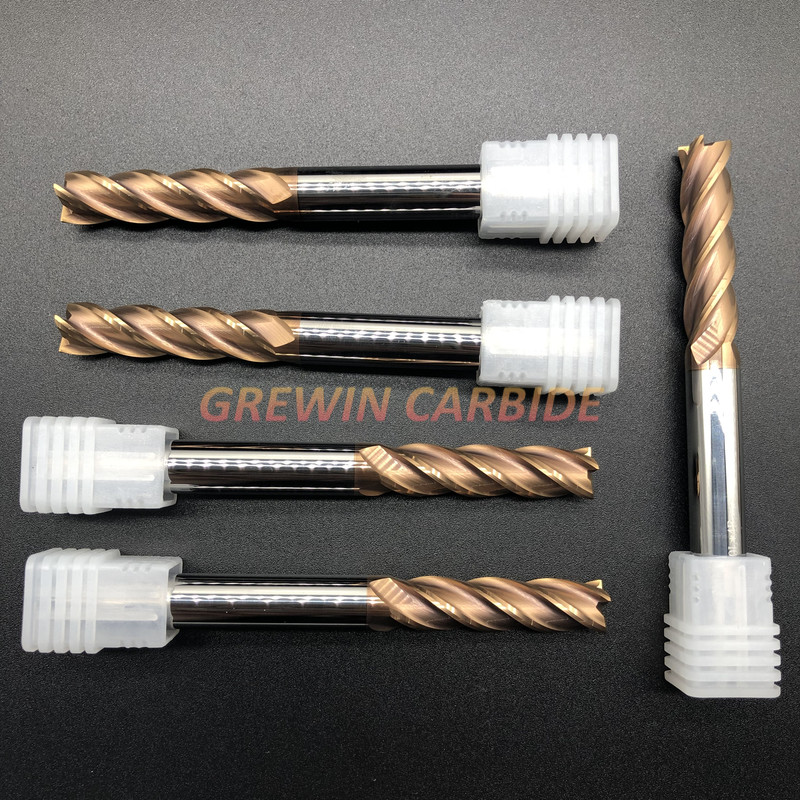

Solid Metal Cutting 4 Fluted Tungsten Carbide End Mill 0

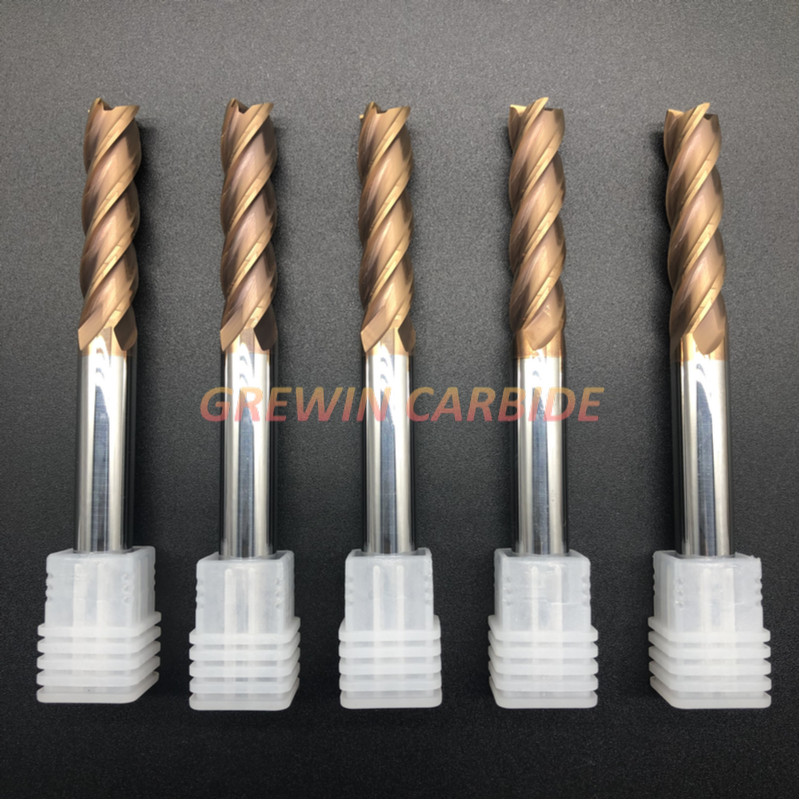

Solid Metal Cutting 4 Fluted Tungsten Carbide End Mill 1
