Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool
5PCS
MOQ
negotiable
Price
Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: standard and non standard sizes
High Light:

Grind carbide brazing rod

,

H6 carbide brazing rod

,

Yg15 Carbide
Payment & Shipping Terms

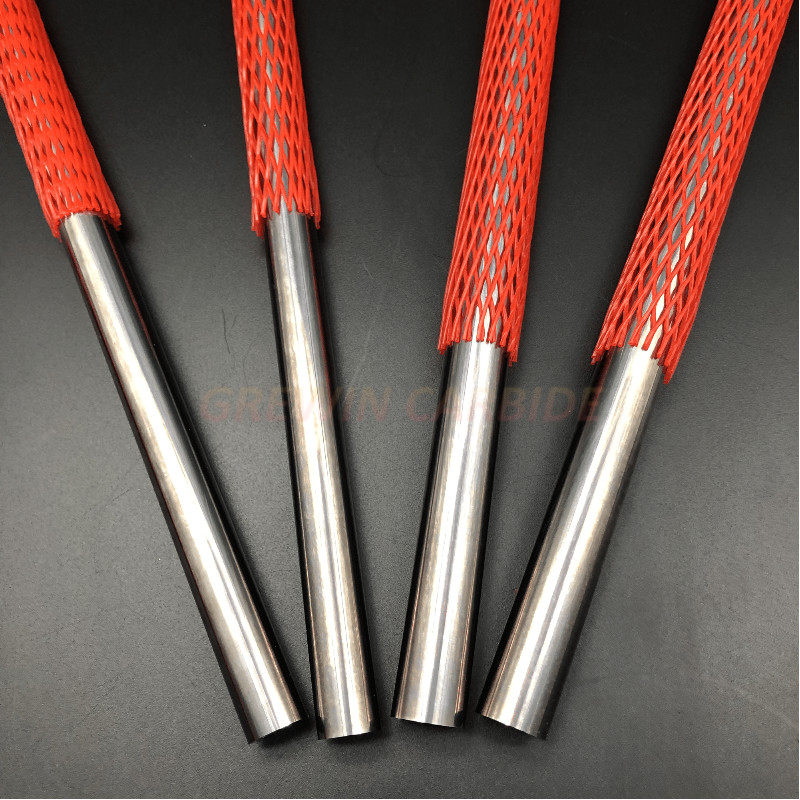

Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
SIZE: 3X330mm,25X330mm, 3x10x310mm, 25x100x310mm As Drawing
SURFACE: GRIDING OR BLANK
MATERIAL: TUNGSTEN CARBIDE
GRADE: YL10.2, H10F, K10, K20, K30, K40
ORIGINAL: ZHUZHOU, HUNAN
Usage: Metal, End Mill, Drill
Standard And Non Standard Sizes: Within7~15workdays
Product Description


Tungsten Carbide Rod


Size:

Diameter: 0.5mm-50mm (HIP Extrusion)

Standard Length: cut to length, standard length in 310/330mm

Widely used in endmills, drills, PCB drills, PCB routers etc.

Advantages of our carbide products:
1. high quality durable tungsten carbide welding rods/cemented rods for milling for router bits made from 100% virgin raw material.
2. produced with advanced equipments and process.
3. all products go through in-process and final inspection.
4. free online technical service available.
5. stable and continuous production ability.



Grade ISO range Cobalt % Density
g/cm3		 Hardness
HRA		 TRS
N/mm2
YG8 K30 8 14.80 89.5 2200
YG6 K20 6 14.95 90.5 1900
YG6X K10 6 14.95 91.5 1800
YL10.2 K30 10 14.50 91.8 2400
YG13X K30-K40 13 14.30 89.5 2600
YG15 K40 15 14.00 87.5 2800

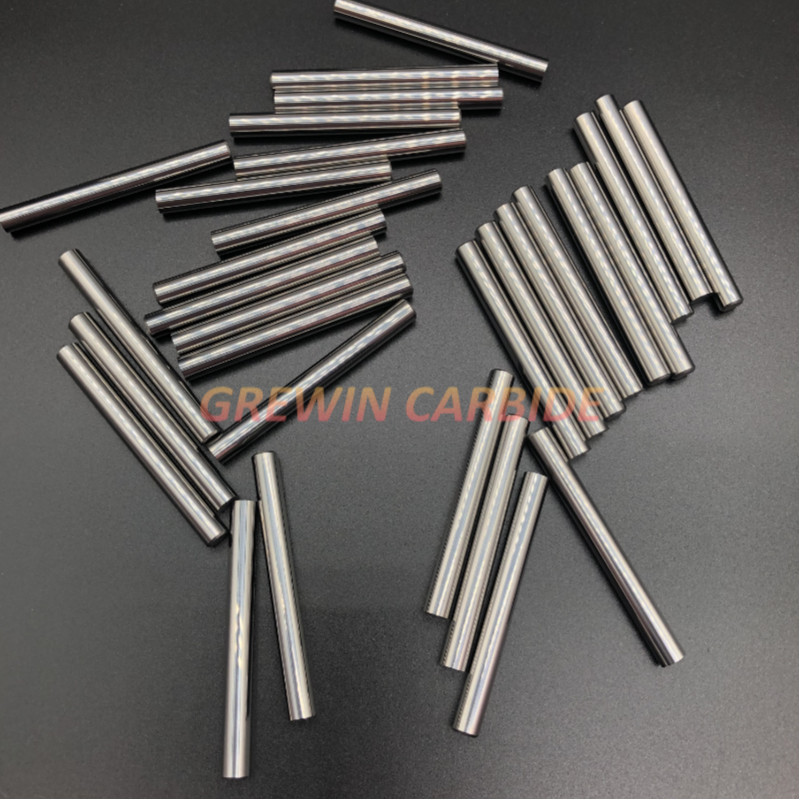

Solid Rods (Metric) 330mm

Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 0​



Unground h6 L Tol. Unground h6 L Tol.
D Tol. D Tol.
Ø2.2 +0.3/+0 2.0 330 +5/+0 Ø17.2 +0.3/+0 17 330 +5/+0
Ø3.2 +0.3/+0 3.0 330 +5/+0 Ø18.2 +0.3/+0 18 330 +5/+0
Ø4.2 +0.3/+0 4.0 330 +5/+0 Ø19.2 +0.3/+0 19 330 +5/+0
Ø5.2 +0.3/+0 5.0 330 +5/+0 Ø20.2 +0.3/+0 20 330 +5/+0
Ø6.2 +0.3/+0 6.0 330 +5/+0 Ø21.2 +0.3/+0 21 330 +5/+0
Ø7.2 +0.3/+0 7.0 330 +5/+0 Ø22.2 +0.3/+0 22 330 +5/+0
Ø8.2 +0.3/+0 8.0 330 +5/+0 Ø23.2 +0.3/+0 23 330 +5/+0
Ø9.2 +0.3/+0 9.0 330 +5/+0 Ø24.2 +0.3/+0 24 330 +5/+0
Ø10.2 +0.3/+0 10.0 330 +5/+0 Ø25.2 +0.3/+0 25 330 +5/+0
Ø11.2 +0.3/+0 11.0 330 +5/+0 Ø26.2 +0.3/+0 26 330 +5/+0
Ø12.2 +0.3/+0 12.0 330 +5/+0 Ø27.2 +0.3/+0 27 330 +5/+0
Ø13.2 +0.3/+0 13.0 330 +5/+0 Ø28.2 +0.3/+0 28 330 +5/+0
Ø14.2 +0.3/+0 14.0 330 +5/+0 Ø29.2 +0.3/+0 29 330 +5/+0
Ø15.2 +0.3/+0 15.0 330 +5/+0 Ø30.2 +0.3/+0 30 330 +5/+0
Ø16.2 +0.3/+0 16.0 330 +5/+0

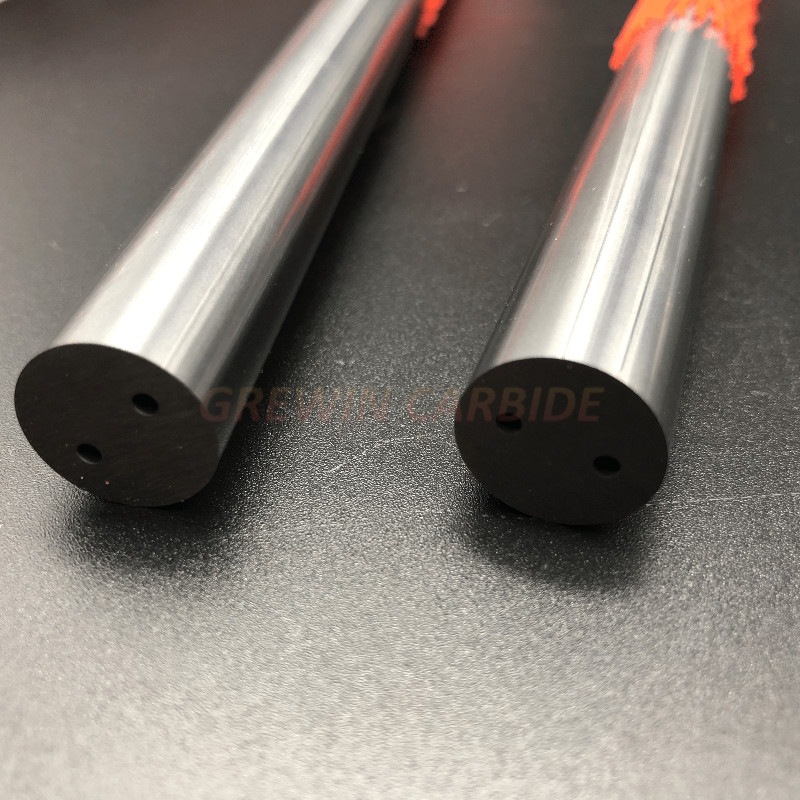

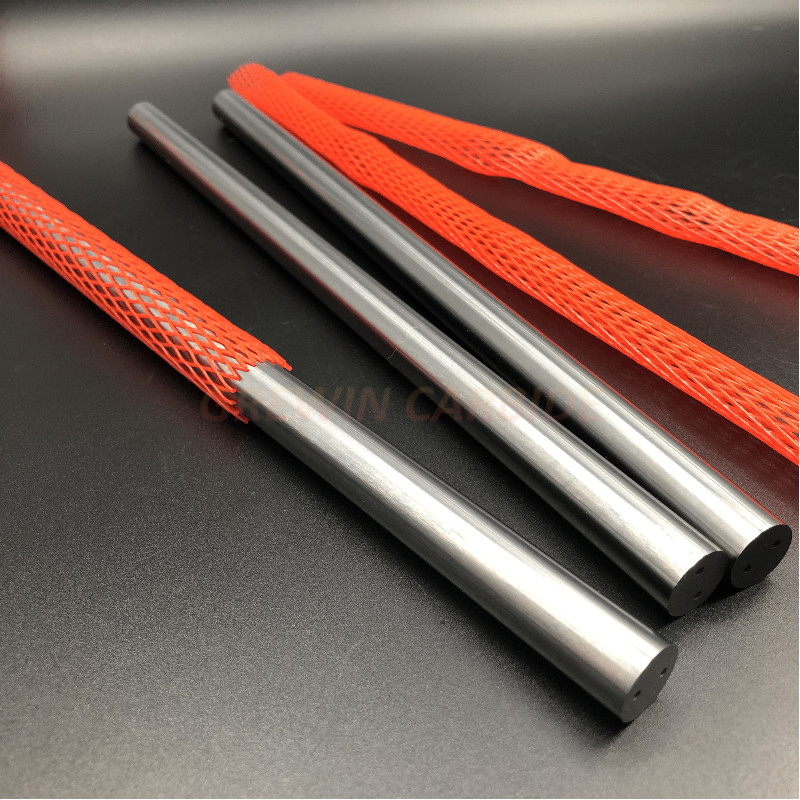

Two straight coolant ducts rods, Reduced TK

Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 1​


Unground Ground h6 TK Tol. D Tol. L a
D Tol.
6.3

+0.3/0		 6.0 1.5 0/-0.20 0.80




±0.15






330		 0.15
7.3 7.0 1.5 0.80 0.15
8.3 8.0 2.6




0/-0.30		 1.00 0.15
9.3 9.0 2.6 1.00 0.20
10.3 10.0 2.6 1.00 0.20
11.3

+0.4/0		 11.0 3.5 1.20 0.28
12.3 12.0 3.5 1.20 0.30
13.3 13.0 3.5 1.20 0.34
14.3 14.0 5.0 1.50 0.37
15.3 15.0 5.0 1.50 0.40
16.3 16.0 5.0 1.50

±0.20		 0.40
17.3
+0.5/0		 17.0 6.2 2.00 0.47
18.3 18.0 6.2 2.00 0.50
19.3 19.0 6.2 2.00 0.50
20.3 20.0 6.2 0/-0.40 2.00 ±0.30 0.50


30° Two Helical Coolant Ducts(Type HE-30°)
Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 2​



Unground Ground h6 L Tol. +5.0 TK Tol. D Tol. Pitch
D Tol.
6.3

+0.4/+1.0		 6.0 330 2.7
±0.2		 0.80


±0.15		 32.65
7.3 7.0 330 3.5 1.00 38.09
8.3 8.0 330 3.4 1.00 43.53
9.3 9.0 330 4.5 ±0.3 1.40 48.97
10.3 10.0 330 4.8 1.30 54.41
11.3

+0.4/+1.2		 11.0 330 4.9



±0.4		 1.40 59.86
12.3 12.0 330 6.3 1.70 65.30
13.3 13.0 330 6.1 1.75
±0.20		 70.74
14.3 14.0 330 6.7 1.80 76.18
15.3 15.0 330 7.3 1.75 81.82
16.3

+0.4/+1.4		 16.0 330 8.0 2.00 87.06
17.3 17.0 330 8.5 1.75
±0.25		 92.50
18.3 18.0 330 9.0 2.30 97.95
19.3 19.0 330 9.7 2.00 103.39
20.3 20.0 330 10.0 ±0.5 2.50 108.83





Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 3Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 4

Company Profile
Company Information

Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company hasmore than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include:Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips,mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments,strong R&D center and QC teams. With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to morethan 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet thedemand of our customers from all over the world.
Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 5
Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 6
Yg15 Carbide Brazing Rod H6 Finish Grind For Cutting Tool 7
FAQ
1) When can I get the price?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us in
your email so that we will regard your inquiry priority.

2) How can I get a sample to check your quality?
After price comfirmed, you can place an small trial order to test, but if you need only 1-2 pcs, we can send the free to you, and you need to pay the shipping cost, please noted.

3) How long does the whole procedure being worked out?
After you place a order,the production handling time is about 25-30 days.

4) What about the transportation and delivery date?
Normally, we use the DHL, TNT, UPS, FeDEx to send the goods, the shipping time around 5-7 days can be reach in your local
