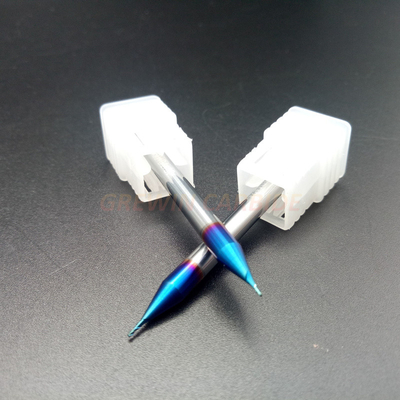

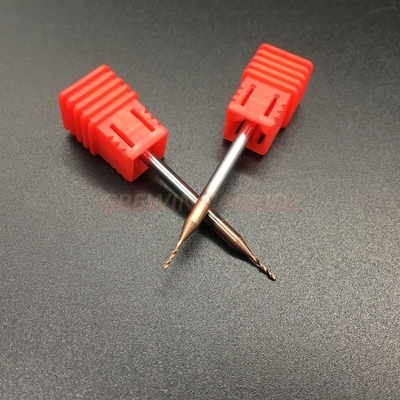

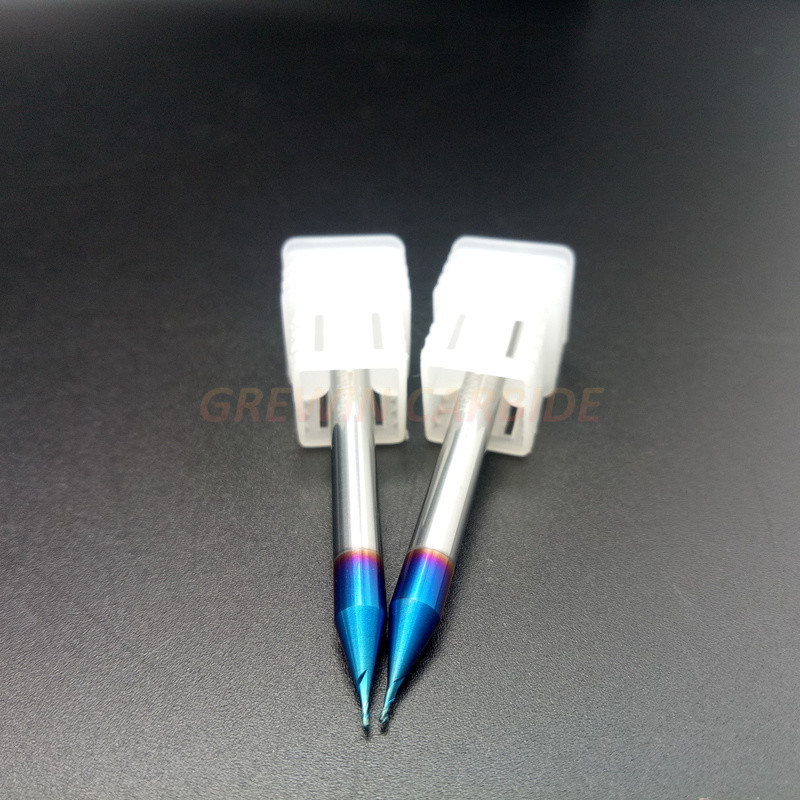

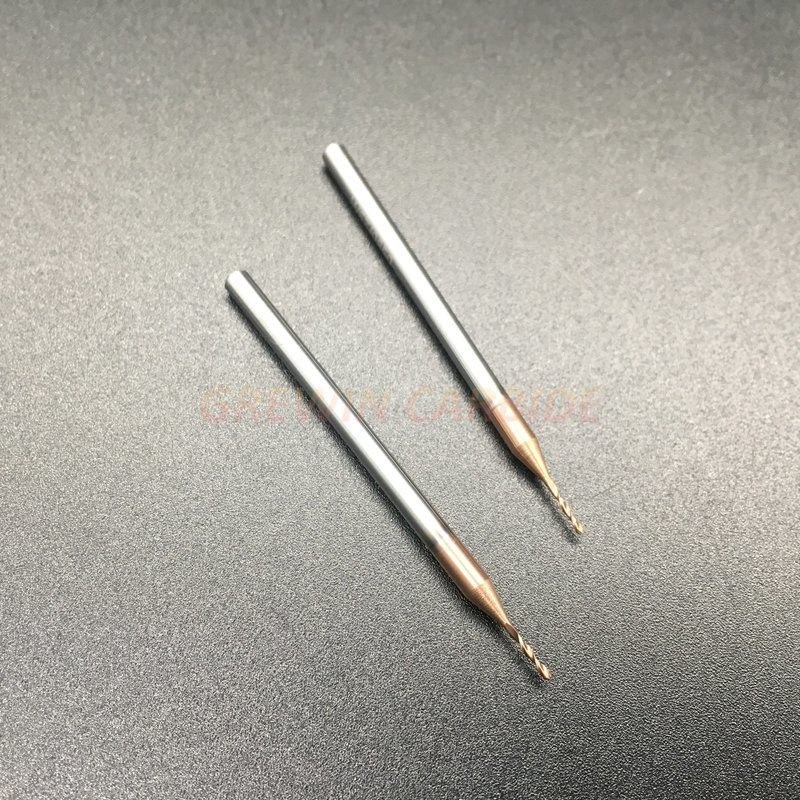

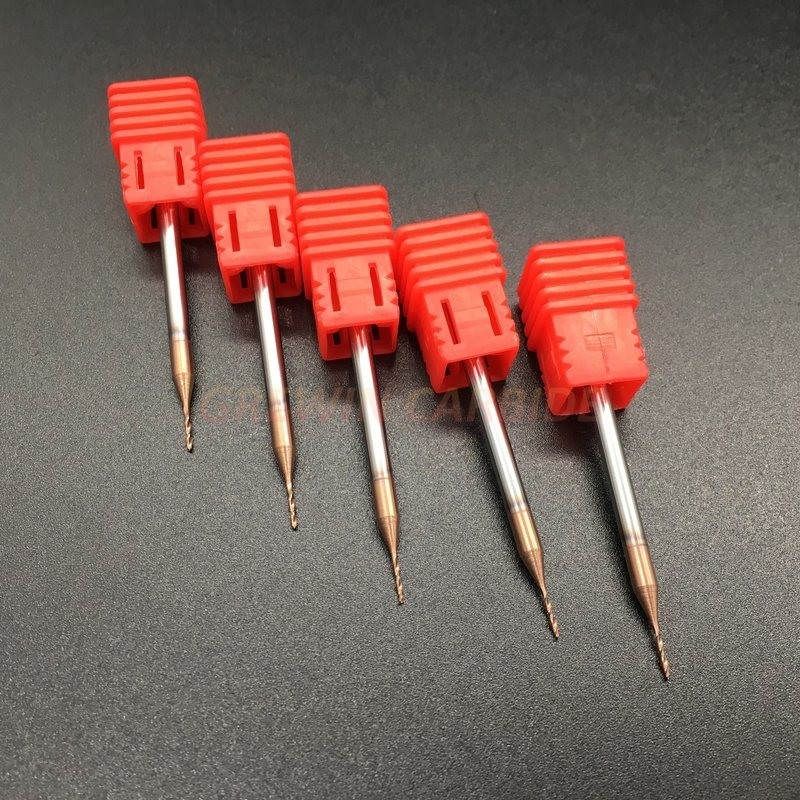

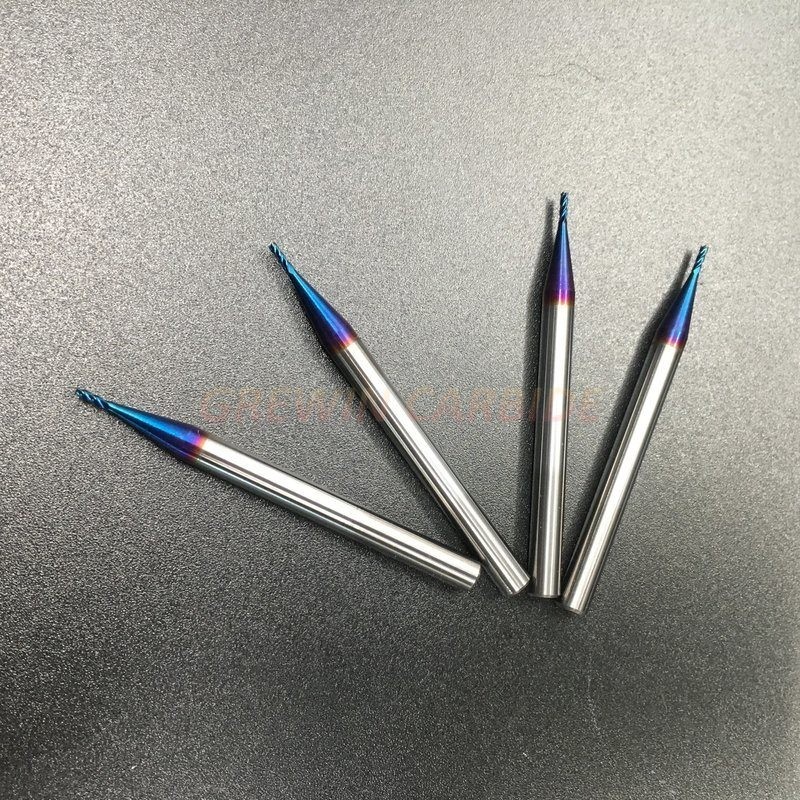

Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill
10 pcs
MOQ
USD 0.8~20/PCS
Price
Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: ZhuZhou,China
Brand Name: GW Or OEM
Certification: ISO9001-2008-SGS
Model Number: HRC65 HRC55 HRC45
Payment & Shipping Terms
Packaging Details: Standard Export Carton
Delivery Time: 7~15 working days
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 50000pcs/month
Specifications
Features: Good Wear Resistance, High Precision
Cutting Form: Flat, Ball Nose, Corner Radius, Roughing
Coating: Tisin, Tialn, Altin, Ticn, Blue Nano
Work Piece: HRC 65 HRC55 HRC45
Flutes Number: 2, 3, 4, 5, 6
Cutting Length: 1-50mm
Overall Length: 5-150mm
Certificates: ISO9001-2008-SGS
Shipment: FedEx,DHL,TNT
Delivery Time: 7~10days
Product Description
Product Description

1.One plastic pipe pack one piece,10 pcs per group
2.Put goods enclosed with air bubble paper into box
3.Other package is accepted according to customer's requirement
for Carbide Fresa CNC 2 Flutes Micro Diameter End Mill Cutters

Product Name
CNC 2 Flutes Micro Diameter End Mill Cutters
Material
100% new material
Coating
AlTiSiN Coating
Standard
ISO
HRC
55
OEM
Supply
Machining
Carbon Steel/Mould steel /Stainless steel
HRC45 HRC55 HRC60 HRC65
Grain Size:0.6um
Co:10 %
Flexural strength:3350N/mm2
Grain Size:0.6um
Co:10 %
Flexural strength:4000N/mm2
Grain Size:0.5um
Co:12 %
Flexural strength:4300N/mm2
Grain Size:0.4um
Co:12.5 %
Flexural strength:4300N/mm2



2. Application

Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

3.Excellent Raw Material and Coating Type

Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co: 10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co: 12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co: 12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co: 12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



4. Coating



Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AlTiN Black <600 °C 3-5 3500 900 °C 0.3
TiSiN Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
CrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



Super Coating



Coating Classifying and Advantage
Item
Coating Type
AlTin
TiAlN
TiSiN
Naco













Characteristic
Hardness(HV)
3300
2800
4300
42(GPA)
Thickness(UM)
2.5-3
2.5-3
3
3
Oxidation Temp.(°C)
900
800
1000
1200
Friction Coefficient
0.35
0.3
0.25
0.4
Color
Black
Bronze
Bronze and gold
Blue
Advantages
High heat stability
Normally cutting
Suitable for heavy cutting, and high hardness cutting
For high precision cutting
Suitable for high speed, dry cutting
Suitable for cutting mould steel, stainless
steel
Suitable for high hardness cutting, mould steel processing
Most suitable for carbide cutting tools, turning insert


Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 0
Specification
Flute Dia(φ)
Flute Length (C)
Shank Dia(D)
Overall Length(L)
Φ1x3Cx4x50L
1.0
3
4
50
Φ2x6Cx4x50L
2.0
6
4
50
Φ3x8Cx4x50L
3.0
8
4
50
Φ4x10Cx4x50L
4.0
10
4
50
Φ5x13Cx6x50L
5.0
13
6
50
Φ6x15Cx6x50L
6.0
15
6
50
Φ8x20Cx8x60L
8.0
20
8
60
Φ6x20Cx6x75L
6.0
20
6
75
Φ8x25Cx8x75L
8.0
25
8
75
Φ10x25Cx10x75L
10.0
25
10
75
Φ12x30Cx12x75L
12.0
30
12
75
Φ10x40Cx10x100L
10.0
40
10
100
Φ12x45Cx12x100L
12.0
45
12
100
Φ14x40Cx14x100L
14.0
40
14
100
Φ16x40Cx16x100L
16.0
40
16
100
Φ18x40Cx18x100L
18.0
40
18
100
Φ20x45Cx20x100L
20.0
45
20
100
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could becustomized.

Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 1

7.Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.

8.Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc

The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.



Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 2Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 3Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 4Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 5Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 6Tungsten Carbide Coated Micro-Diameter Milling Cutter Taper 2 Flutes End Mill 7
