HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated
10pcs
MOQ
negotiable
Price
HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
HRC: 45, 50, 60, 65
Cutting Form: Corner Radius, Roughing, Ball Nose, Flat
Coating: Tisin, Tialn, Altin, Ticn, Blue Nano
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Flutes Number: 2,4
Delivery Time: 7-15 Days
Shipment: FedEx,DHL,TNT,UPS,EMS,etc.
Flute Diameter: 0.5mm-1mm,Customized
Product Description

HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated





Product Specification

Raw Material
HRC Meterial MG Grain Size(μm) CO(%) Flexural Strength(N/mm²)
45° ZK30 0.7 10 3320
50° WF25 CB 0.6 10 4000
55° K44UF Gurhing 0.5 12 4300
65° CTU08L CERATIZIT 0.4 10 3700



Super Coating
  AlTiN TiAIN TiSiN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(μm) 2.5-3 2.5-3 3 3
Oxidation Temp(ºC) 900 800 1000 1200
Friction Coeffient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminum, etc.

Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER


Standard Sizes

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100

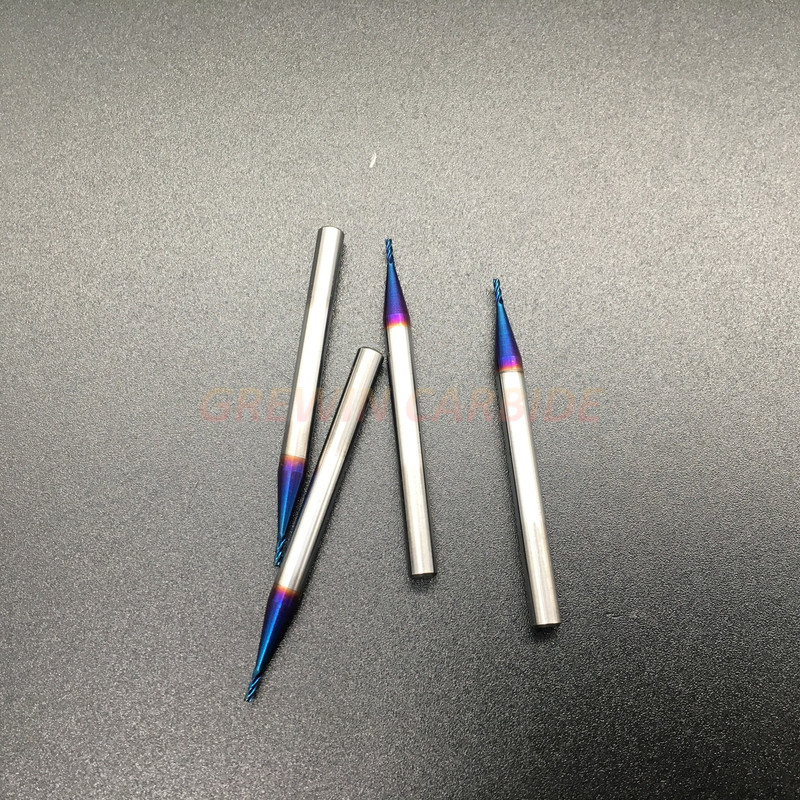

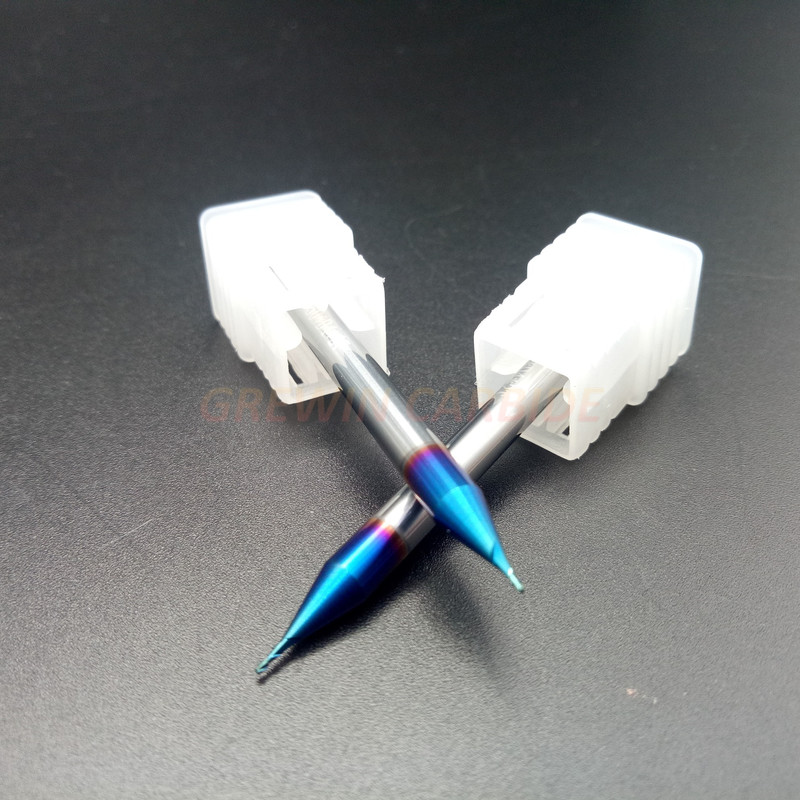

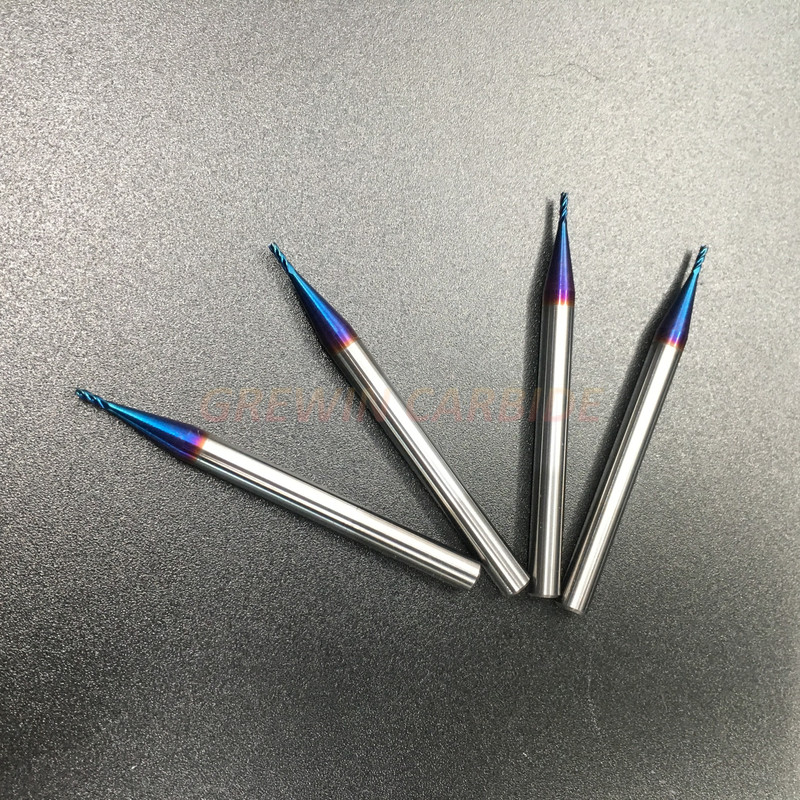

Product Show:

 HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated 0HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated 1HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated 2HRC 65 Tungsten Carbide Micro End Mill / Carbide Endmill with Blue Nano Coated 3



Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
The products we can offer:
Tungsten Carbide products: carbide inserts, tool holders, milling cutters, end mills, drill bits, reamers, wear parts, router bits, and other carbide products.
HSS products: machine taps, drill bits, end mills, gear hobs and other OEM products.
Accessories of CNC toolholders.



Any of your inqiury, we are always welcome!
