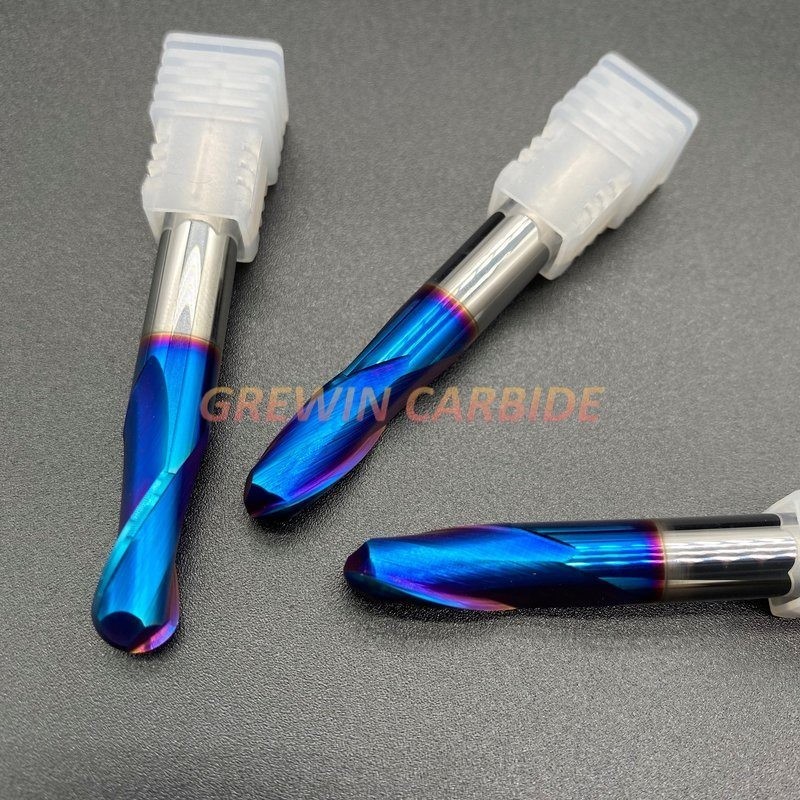

Tungsten Carbide 2f Ball Nose End Mill with HRC 65 Blue Naco Coating
10pcs
MOQ
negotiable
Price
Tungsten Carbide 2f Ball Nose End Mill with HRC 65 Blue Naco Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Delivery Time: 7-10 Days
Flutes: 2, 3, 4, 5, 6
HRC: 45, 55, 60, 65
Type: Flat, Ball Nose, Corner Radius, Roughing
Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Usage: General High Speed Cutting
Coating: Altin, Tiain, Tisin, Ticn, Tin, Tialn, Uncoated
Flute Diameter: 0.5mm-25mm,Customized
Product Description



1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC68
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7

Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue


2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.

Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER

3. Coating


Coating

Color

Coating Temperature

Thickness (um)

HV

Application Temperature

Friction coefficient

TiAlN
Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600 °C 3-5 3500 900 °C 0.3
TiXco Copper <600 °C 3-5 3500 1500 °C 0.4
NaNo Blue <600 °C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3


4. Payment
T/T, Western Union, Paypal (Choose your convenient way)

5. Shipment
FEDEX, TNT,DHL, UPS, EMS,etc.
The port is Beijing,Shanghai ,Guangzhou ,Shenzhen,any port in China. (choose your convenient way)

6. Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group

7. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days

Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100


2 flutes Ballnose End Mill
Tungsten Carbide 2f Ball Nose End Mill with HRC 65 Blue Naco Coating 0
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z

2GW2-01002050 1 2 50 4 2
2GW2-01504050 1.5 3 50 4 2
2GW2-02050500 2 4 50 4 2
2GW2-02507050 2.5 5 50 4 2
2GW2-02008050 3 6 50 4 2
2GW2-04010050 4 8 50 4 2
2GW2-04015075 4 8 75 4 2
2GW2-04020100 4 8 100 4 2
2GW2-05012050 5 10 50 6 2
2GW2-06015050 6 12 50 6 2
2GW2-06020075 6 12 75 6 2
2GW2-06020100 6 12 100 6 2
2GW2-06020060 8 16 60 8 2
2GW2-08025075 8 16 75 8 2
2GW2-08025100 8 16 100 8 2
2GW2-010025075 10 20 75 10 2
2GW2-010040100 10 20 100 10 2
2GW2-012020075 12 24 75 12 2
2GW2-012040100 12 24 100 12 2
2GW2-014020080 14 28 80 14 2
2GW2-014100100 14 28 100 14 2
2GW2-016040100 16 32 100 16 2
2GW2-018040100 18 36 100 18 2
2GW2-020040100 20 40 100 20 2
2GW2-06040150 6 12 150 6 2
2GW2-08050150 8 16 150 8 2
2GW2-010050150 10 20 150 10 2
2GW2-012050150 12 24 150 12 2
2GW2-014060150 14 28 150 14 2
2GW2-016060150 16 32 150 16 2
2GW2-018060150 18 36 150 18 2
2GW2-020060150 20 40 150 20 2



4 flutes Ballnose End Mill
Tungsten Carbide 2f Ball Nose End Mill with HRC 65 Blue Naco Coating 1
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.


Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z

4GW2-0103050 1 2 50 4 4
4GW2-0205050 2 4 50 4 4
4GW2-0308050 3 6 50 4 4
4GW2-04010050 4 8 50 4 4
4GW2-05013050 5 10 50 5 4
4GW2-06015050 6 12 50 6 4
4GW2-08020060 8 16 60 8 4
4GW2-01020075 10 20 75 10 4
4GW2-012030075 12 24 75 12 4
4GW2-06030100 6 12 100 6 4
4GW2-08030100 8 16 100 8 4
4GW2-010040100 10 20 100 10 4
4GW2-012040100 12 24 100 12 4
