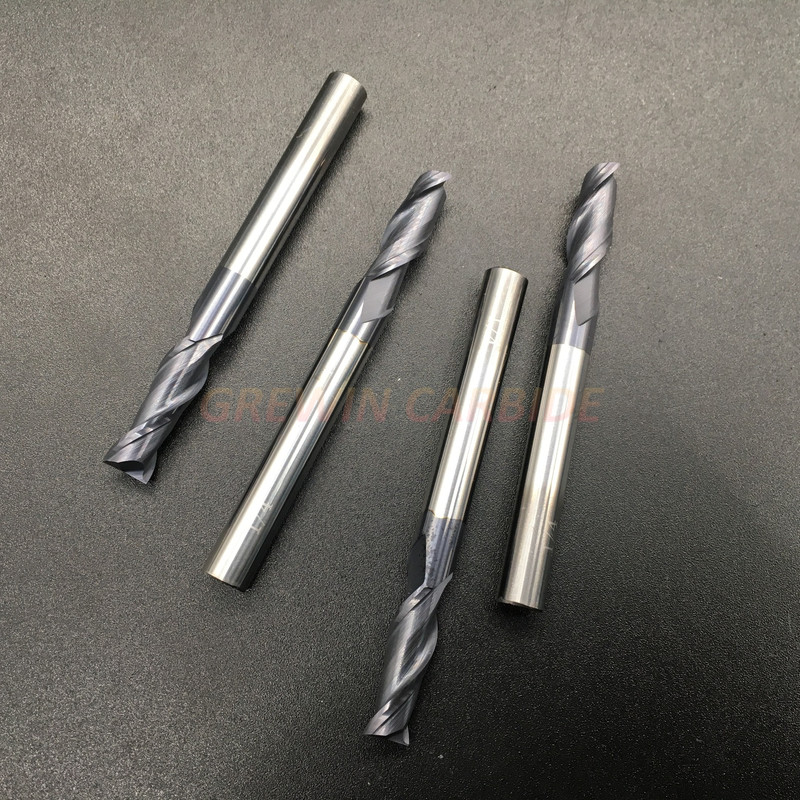

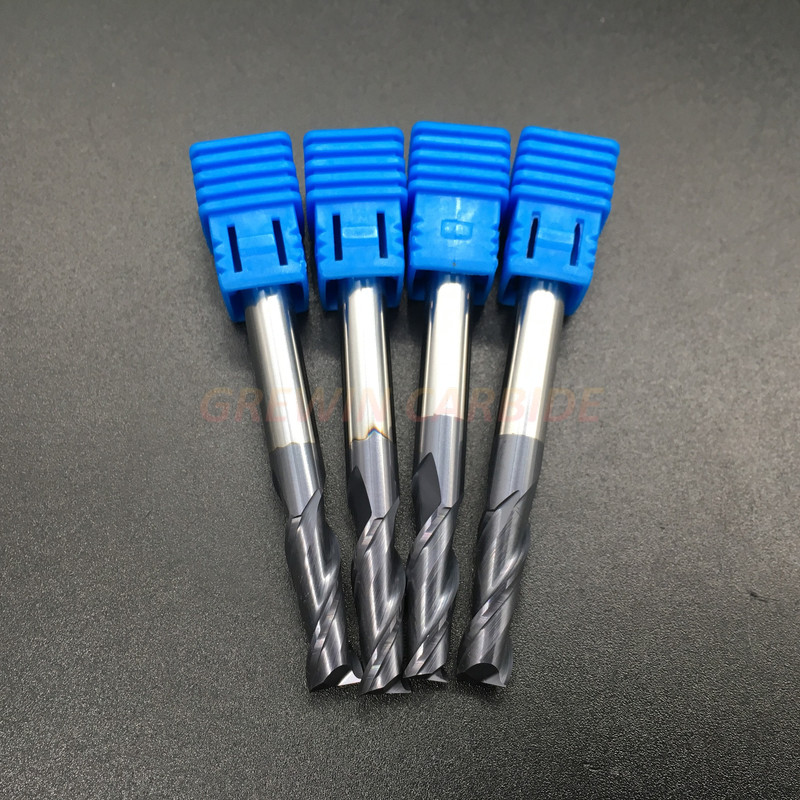

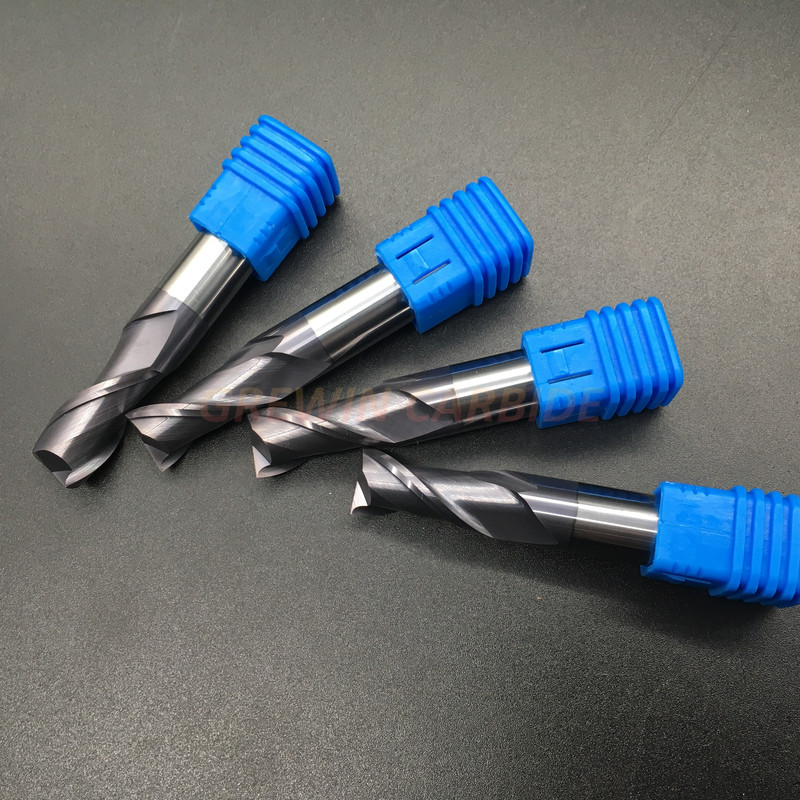

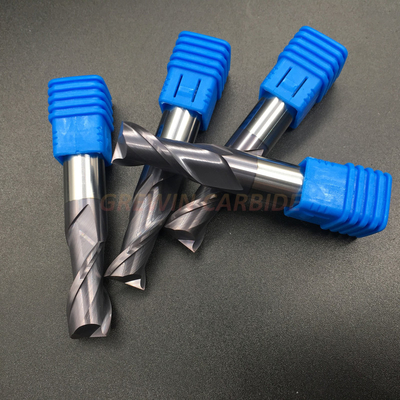

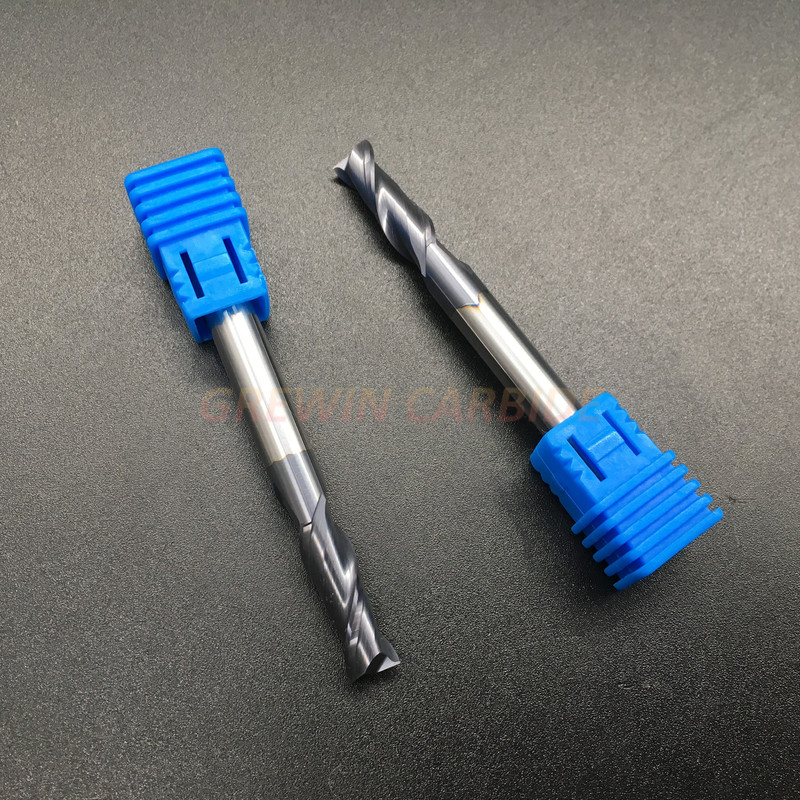

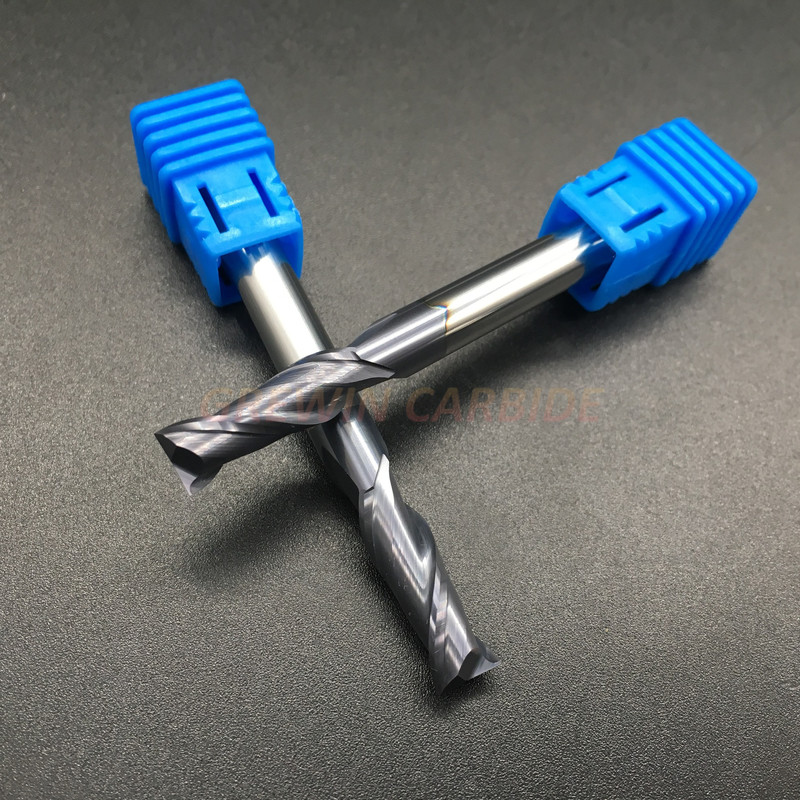

CNC Aluminum Cutting End Mills Aitin Solid Carbide End Mill Cutter HRC45
10pcs
MOQ
negotiable
Price
CNC Aluminum Cutting End Mills Aitin Solid Carbide End Mill Cutter HRC45
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

CNC Aluminum Cutting End Mills

,

Aitin Aluminum Cutting End Mills

,

HRC45 Solid Carbide End Mill Cutter

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Features: Good Wear Resistance, High Precision
Material: Cemented Carbide
Coating: Tiain, Aitin, Tixco, Nano, Aicrn
Hardness: 65,55,45
HRC: HRC45-55
Types: Flat,Ball Nose, Corner Radius, Roughing
Oval Length: 35-160mm
Flutes: 1,2,3,4,5,6
Product Description

Product Description:

1.Original raw micro grain material, high hardness and T.R.S.
Co: 10%,Wc:90%
TRS: >3600 N/mm2
HRA: 91.8-92.4, HRC:45/55/60/65
Grain size: 0.4-0.6μm
Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 4-20mm
Length: 50-100mm
Cutting Form: Square,Ball nose, Corner Radius, Taper Flute, etc.
Flutes No.: 1-6



2.Other products: drills,reamer,tool holders, ER collet, boring cutters,carbide inserts,cutter heads,etc.

3.Application and usage: Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic,etc.

4. Super Coating: TiSiN TiAlN AlTiN TiCN or Blue Nano Coating.



Item AlTiN TiAiN TiSiN nAcO
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp( ° ) 900 800 1000 1200
Friction 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue


Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63


Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue



Main uses:

Generally speaking, it can be divided into:

1. Flat-end milling cutter, rough milling, removal of a large number of blanks, small area of horizontal plane or contour finishing milling.

2. Ball-end milling cutter, semi-finish milling and finish milling of curved surface; small ball-end milling cutter can finish milling small chamfer of steep surface/straight wall and irregular contour.

3. Flat-end milling cutter with chamfer can be used for rough milling to remove a large number of blanks, and can also finish milling small chamfer of smooth surface (relative to steep surface).

4. Forming milling cutters, including chamfer cutter, T-shaped cutter or drum cutter, tooth cutter, internal R cutter.

5. Chamfer cutter, chamfer cutter shape and chamfer shape are the same, divided into milling rounded chamfer and chamfer milling cutter.

6. T-shaped cutter, can milling T-shaped groove.

7. Tooth cutter, milling various tooth types, such as gears.

8. Coarse cutter, which is designed for cutting Al-Cu alloy, can be processed quickly.

Advantages:

1. Solid carbide reamers, we can make different types of machine reamers, usually 2-8 flutes, the delivery time for non-standard customized reamers is just 7-10 days.

2. Carbide drill reamers are made from different grade of material:

HRC45 machine reamer, YG25material, high precision, with 2-8 flutes. Suit for cast iron, carbon steel
HRC55 machine reamer, YL10.2, high precision, with 2-8 flutes, suit for carbon steel, alloy steel.
HRC60 machine reamers, Kennametal2210, high precision, with 2-8 flutes, suit for copper alloy, stainless steel.
HRC65 machine reamer, Germany AF, high precision, with 2-8 flutes, suit for hard metal.

3. We can supply different types of machine reamers, also we can make the boring reamers according your drawing and samples.

4. Depth of cut: This is how deep the tool is under the surface of the material being cut (not shown on the diagram). This will be the height of the chip produced. Typically, the depth of cut will be less than or equal to the diameter of the cutting tool.

☆Grade Recommend

Grade Hardness HRA(hv) Giain size
T.R.S(M Pa)
Performances &applications recommended
YG25 90-91 0.7um 2500-2800 Good Wear resistance,shuit for processing hard wood ,cost iron ,copper ,A3 steel
YL10.2 91-91.5 0.6um >3800 Suit for processing Die Steel,aluminum alloy,stainless steel,cat iron ,copper
Kennametal 2210 91.5 0.5um >4300 Suit for processing Hardneed steel ,hardneed stainless steel ,heat treated material
Germany AF K34 94 0.4um 5000-6000 good grain size ,Fine carbide,high wear resistance,high bending strength,suit for fishing processing



4 flutes Flat End Mill
CNC Aluminum Cutting End Mills Aitin Solid Carbide End Mill Cutter HRC45 0
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.



Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4


More information, please kindly contact us.



Email: matrina-gw@vip.163.com

wechat: 17361606243

whatsapp: +86 18673330151
