Tungsten Solid Carbide Flat End Mill 2 Flutes HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools
10pcs
MOQ
negotiable
Price
Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 7-10 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Product Name: HRC55 2F Flat End Mill
Machine Type: /ROLLOMATIC/ANCA
Testing Equipment: ZOLLER
Workpiece Material: Steel , Cast Iron , Aluminum , Copper , Plastic , SS , HSS , Etc.
Cutting Form: Flat,
Controlling Mode: CNC Tooling System
Precision: 0.005-0.01mm
Color: Copper
Flutes: 2
Coated: TiAIN、
Material: Carbide, Tungsten Cobalt Alloy, HSS Etc, 100% Virgin Tungsten Carbide, Solid Tungsten Carbide
Coating: TiAIN
Type: End Mill,2 Flutes Flatten End Mill
Overall Length: 50-150mm
Diameter: 1-20mm
Hrc: 55
Product Description

HRC55 2 FLUTES FLAT SOLI D CARBIDE ENDMILL

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 0



Choose good solid carbide, good quality with cost-effective.



1. GOOD WEA R RESISTANCE, LONG WORKING LIFE, NANO COATING

Made with Anka machine tools and German technology, it can perform finishing and semi-finishing on heat-treated materials below 55 degrees, enhance tool life, reduce the number of roundabouts, and provide machine tool operation.

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 1

  • BIG DIAMETER DESIGN , SHARP CHIP REMOVAL

The unique helix angle is ground by first-class precision machine tools. The large core diameter design enhances rigidity and shock resistance .The large chip removal space is not easy to accumulate chips, and is not easy to break. It is sharp and wear-resistant, cutting smoothly, and improving milling efficiency.





Sharp Cutting Edge

Improve the effective

Hard and long working life

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 2







  • WITH PASSIVATION TREATMENT, DURABLE AND ANTI-CORROSION

Imported passivation equipment, finely densified sand, increases the corrosion resistance and wear resistance of the end mill. Good grinding makes the cutting edge without chips. It can Extended the working life.

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 3

  • SPECIFICATION SHEET

HRC55 2 Flutes Flat Solid carbide end mils
Materials:Solid Carbide

Brand: GREWIN

Coating:Copper coating
Flute:2 flutes
Hardness: HRC55

Spiral Angle: 35
Materials to be cut: 45# steel, cast lron, tool steel and mould steel within HRC55
Machine to be used: CNC machining centers, engraving machines and other high-speed CNC milling machines



Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 4

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 5







5. A SOLID CARBIDE END MILL WHO UNDERSTAND WHAT YOU WANT

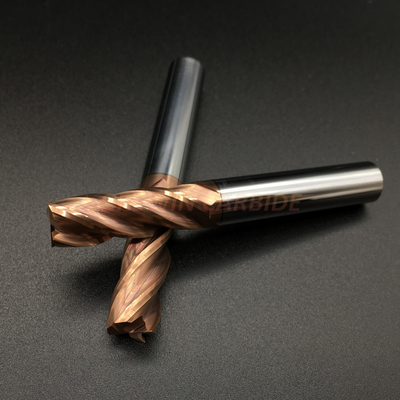

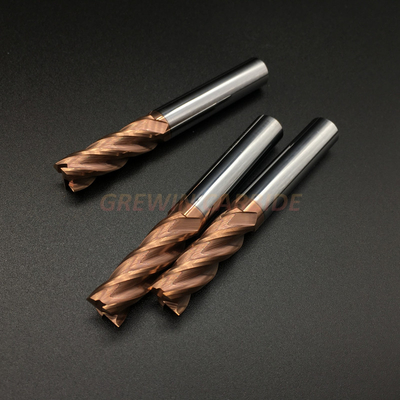

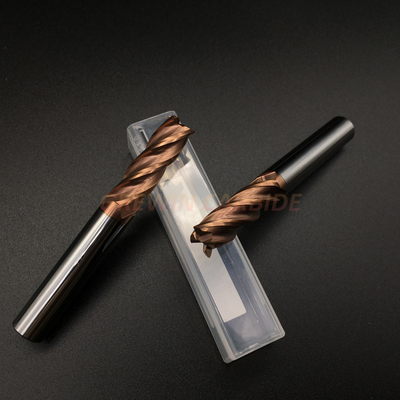

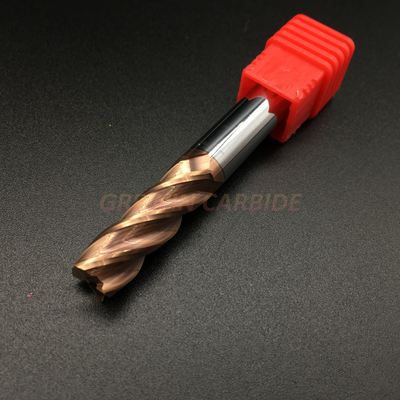

Real end mill photo, you will get what you read from the picture

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 6

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 7Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 8

Tungsten Solid Carbide Flat End Mill 2 Flutes  HRC55 Copper Color TiAIN Coated Sharp Cutting Tools Machine Tools 9





6. WARMLYTIPS
01Properly reducing the cutting speed and feed rate can prolong the trial life of the milling cutter.

02When working, it is necessary to add cutting fluid to protect the cutting edge, which makes the cutting smoother.

03When there is an oxide film or other hardened layer remaining on the surface of the work-piece, it can be removed by reversible milling.





7. INSTRUCTIONS FOR USE
What buyers need to know about end mill selection and operating instructions

01.Before using the tool, please measure the tool deflection. If the tool deflection accuracy exceeds 0.01mm, please correct it before cutting.

02.The shorter the length of the end mill sticking out of the chuck, the better.If the end mill sticks out for a long time, it is necessary to reduce the rotational speed, feed rate or cutting amount.

03.During cutting, if abnormal vibration or sound occurs, please reduce the cutting speed and the cutting feed rate until the situation improves.

04.The steel cooling is preferably spray and air jet, which can effectively improve the use effect of the milling cutter.
