Solid Carbide 2 Flutes Ball Nose End Mill Milling Cutter For Cutting SS304
10pcs
MOQ
USD1-50/PCS
Price
Solid Carbide 2 Flutes Ball Nose End Mill Milling Cutter For Cutting SS304
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou,Hunan.
Brand Name: GREWIN/OEM
Certification: ISO9001
Model Number: D1-D20
Payment & Shipping Terms
Packaging Details: 1pcs for 1 plastic box,10pcs for a group.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000000PCS per month
Specifications
Product Name: 2 Flutes Ball Nose End Mill
Coating: NANO
Suitable For: Carbon Steel,Cooper.Cast Iron.Carbon Steel.Mould Steel,tool Steel
Diameter: D1.0mm To D20.0mm
Overall Length: 50mm 75mm 100mm
Hrc: HRC50 HRC58 HRC60 HRC65
Flute: 2-4 Flutes
Machine Type: ANCA,WALTER
Product Description

Solid Carbide 2 Flutes Ball Nose End Mill Milling Cutter For Cutting SS304



HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.



Size sheel:

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
2GW2-01002050 1 2 50 4 2
2GW2-01504050 1.5 3 50 4 2
2GW2-02050500 2 4 50 4 2
2GW2-02507050 2.5 5 50 4 2
2GW2-02008050 3 6 50 4 2
2GW2-04010050 4 8 50 4 2
2GW2-04015075 4 8 75 4 2
2GW2-04020100 4 8 100 4 2
2GW2-05012050 5 10 50 6 2
2GW2-06015050 6 12 50 6 2
2GW2-06020075 6 12 75 6 2
2GW2-06020100 6 12 100 6 2
2GW2-06020060 8 16 60 8 2
2GW2-08025075 8 16 75 8 2
2GW2-08025100 8 16 100 8 2
2GW2010025075 10 20 75 10 2
2GW2010040100 10 20 100 10 2
2GW2012020075 12 24 75 12 2
2GW2012040100 12 24 100 12 2
2GW2014020080 14 28 80 14 2
2GW2014100100 14 28 100 14 2
2GW2016040100 16 32 100 16 2
2GW2018040100 18 36 100 18 2
2GW2020040100 20 40 100 20 2
2GW2-06040150 6 12 150 6 2
2GW2-08050150 8 16 150 8 2
2GW2010050150 10 20 150 10 2
2GW2012050150 12 24 150 12 2
2GW2014060150 14 28 150 14 2
2GW2016060150 16 32 150 16 2
2GW2018060150 18 36 150 18 2
2GW2020060150 20 40 150 20 2



Features:
Use top quality carbon steel.
Excellent chip removal effect.
Double blade with 35 degree spiral Angle design.
Suitable for processing stainless steel, die steel, heat treatment steel ect.
Highest harness could reach HRC60 for alloy steel mold steel.

Package Included:
1Pc x Ball Nose Milling Cutter

More Details:

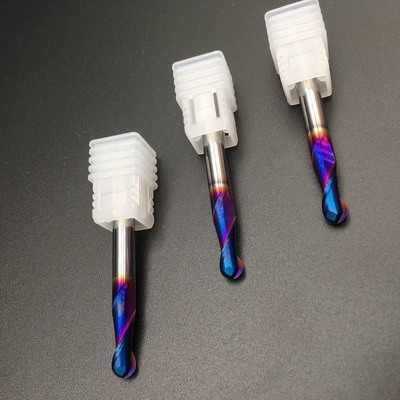

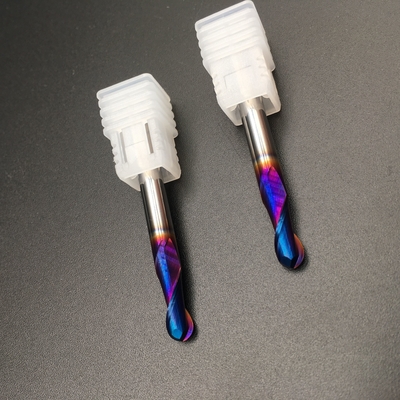

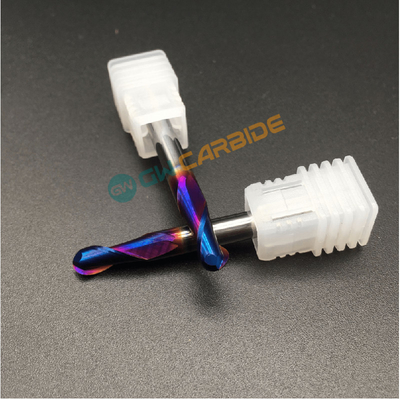

Solid Carbide 2 Flutes Ball Nose End Mill Milling Cutter For Cutting SS304 0Solid Carbide 2 Flutes Ball Nose End Mill Milling Cutter For Cutting SS304 1

FAQ
Q: Are you trading company or manufacturer ?
A: we are the manufacturer Specializing in High-End carbide cutting tools and non-standard cutting tools, OEM&ODM accept;

Q: How long is your delivery time?
A: Generally 5- 15 working days, it depends ;

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.
custom cutting tools negotiated then we will quote the best sample cost.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

If you have another question, pls feel free to contact us.
