D4/6/8/10mm Carbide Roughing End Mill HRC55 TiAIN Coating Milling Cutter
10pcs
MOQ
negotiation
Price
D4/6/8/10mm Carbide Roughing End Mill HRC55 TiAIN Coating Milling Cutter
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou,Hunan.
Brand Name: GREWIN/OEM
Certification: ISO9001
Model Number: D1-D20mm
High Light:

TiAIN Carbide Roughing End Mill

,

HRC55 Carbide Roughing End Mill

,

10 mm milling cutter

Payment & Shipping Terms
Packaging Details: 1pcs for 1 plastic box,10pcs for a group.
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union
Supply Ability: 1000000pcs per month
Specifications
Product Name: Carbide Roughing End Mill
Coating: TiAIN
Diameter: D1-20mm
Overall Length: 50-150mm
Usage: General High Speed Cutting,cnc Machining
Hrc: 55-58
Flutes: 3,4
Color: Bronze
Product Description

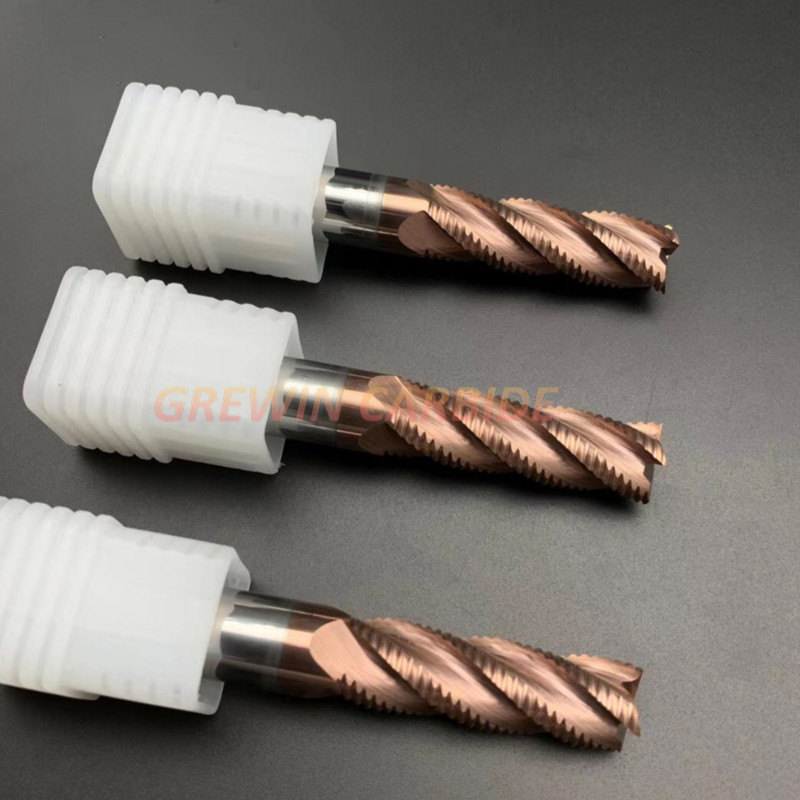

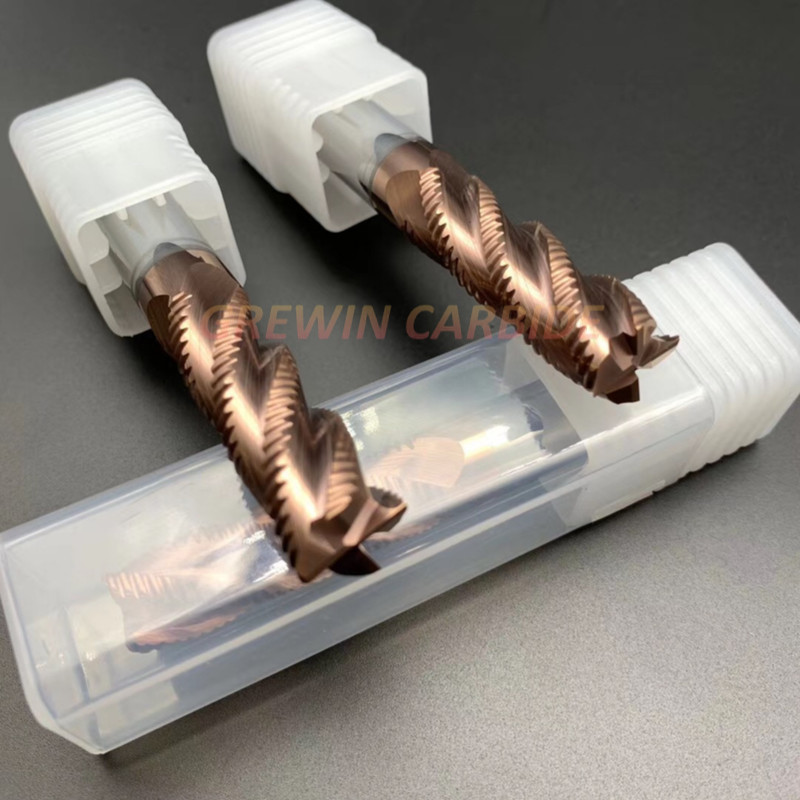

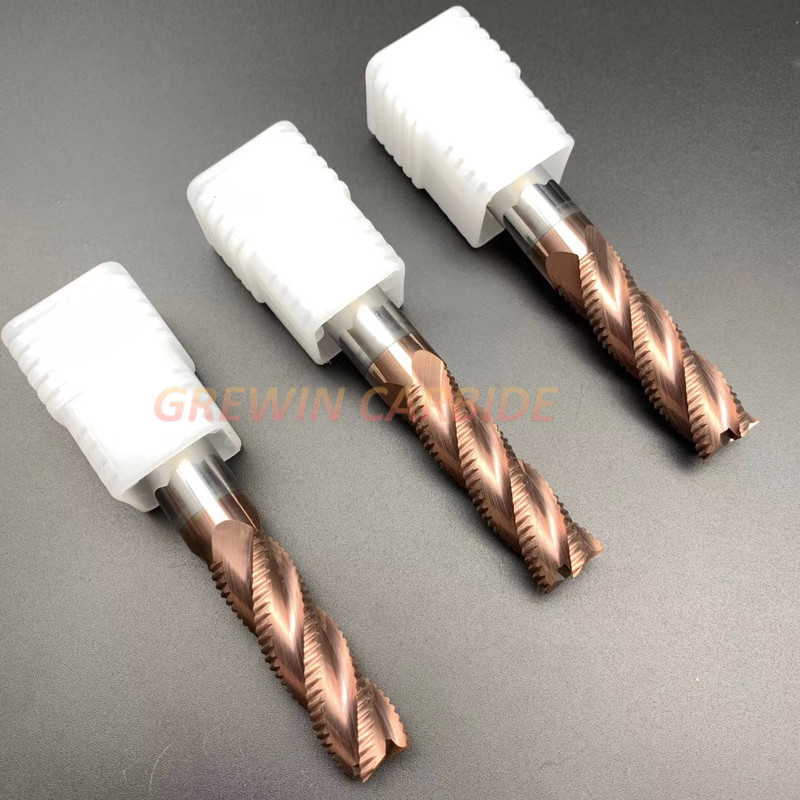

D4/6/8/10mm Carbide Roughing End Mill HRC55 TiAIN Coating Milling Cutter

Roughing End Mills also known as ripping cutters orhoggers, are designed to remove large amounts ofmetal quickly and more efficiently than standard endmills. Coarse tooth roughing end mills remove largechips for heavy cuts, deep slotting and rapid stockremoval on low to medium carbon steel and alloy steel prior to a finishingapplication.



3 Flutes Rough Machining End Mill

HRC choice: HRC38-45, HRC55-58
Coating choice: AITiN, AITiCrSIN
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
3GW5-0103050 1 3 50 4 3
3GW5-0205050 2 5 50 4 3
3GW5-0308050 3 8 50 4 3
3GW5-04010050 4 10 50 4 3
3GW5-06015050 6 15 50 6 3
3GW5-08020060 8 20 60 8 3
3GW5-01020075 10 20 75 10 3
3GW5-012030075 12 30 75 12 3
3GW5-014040100 14 40 100 14 3
3GW5-016040100 16 40 100 16 3



4 Flutes Rough Machining End Mill

HRC choice: HRC38-45, HRC55-58
Coating choice: AITiN, AITiCrSIN
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.

Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW5-0103050 1 3 50 4 4
4GW5-0205050 2 5 50 4 4
4GW5-0308050 3 8 50 4 4
4GW5-04010050 4 10 50 4 4
4GW5-06015050 6 15 50 6 4
4GW5-08020060 8 20 60 8 4
4GW5-01020075 10 20 75 10 4
4GW5-012030075 12 30 75 12 4
4GW5-014040100 14 40 100 14 4
4GW5-016040100 16 40 100 16 4



Features:
- Quality materials, durable, precision processing, efficient work, humanized design.
- Spiral design, large capacity smooth chip removal, prevent sticking and reduce heat.
- Cemented carbide has good pressure resistance, good toughness, high hardness and good wear resistance.
- Round smooth handles with precise chamfering are easier.



Package Included:
1pc x Milling Cutter



More Details:

D4/6/8/10mm Carbide Roughing End Mill HRC55 TiAIN Coating Milling Cutter 0D4/6/8/10mm Carbide Roughing End Mill HRC55 TiAIN Coating Milling Cutter 1

FAQ
Q: Are you trading company or manufacturer ?
A: Yes ,We are factory for more than 10 years in CNC tools.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you make OEM ?
A: Yes, we do. OEM is accepted with your brand lase in the products by our laser machine and label of the OEM brand would be stuck on the box before goods shipped out.
