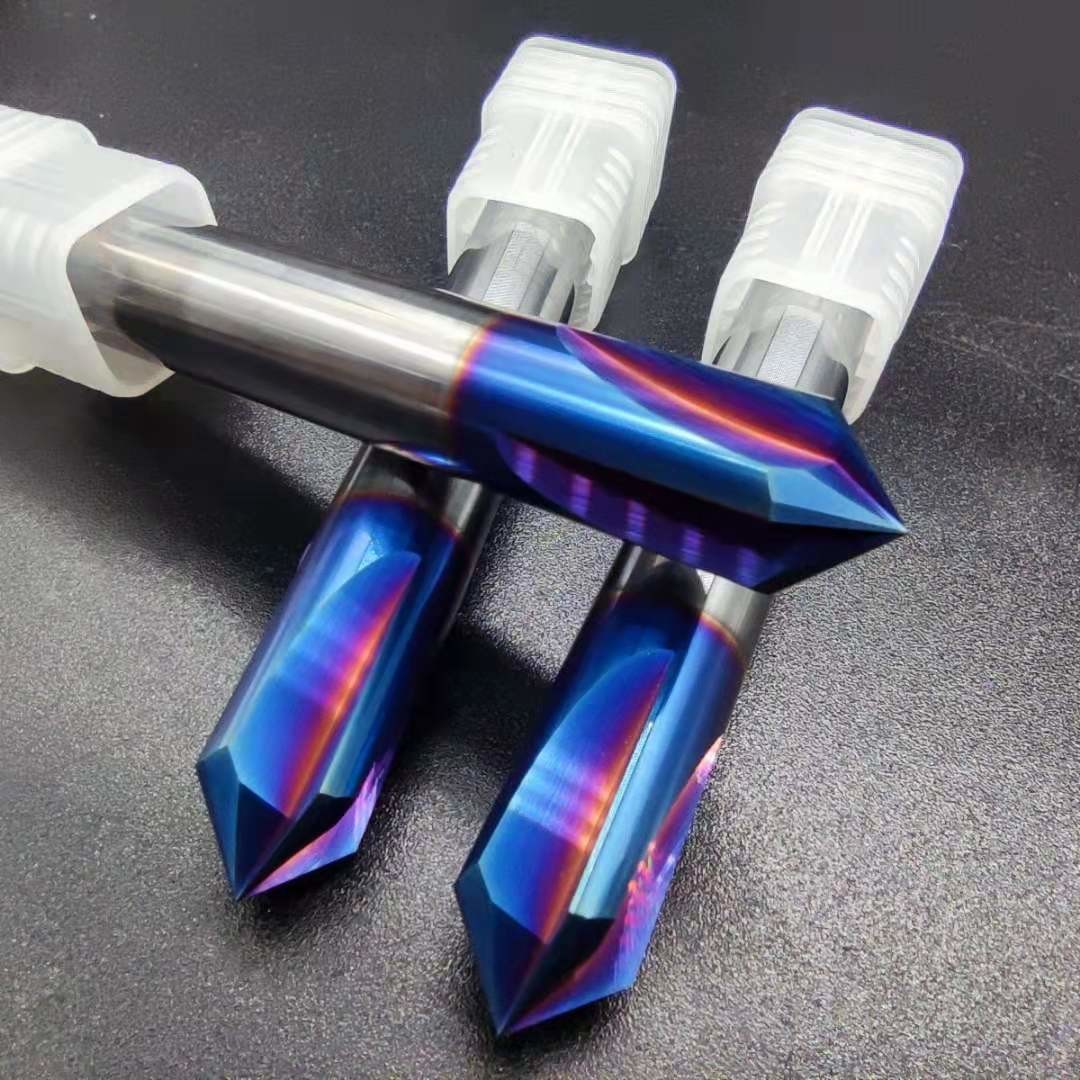

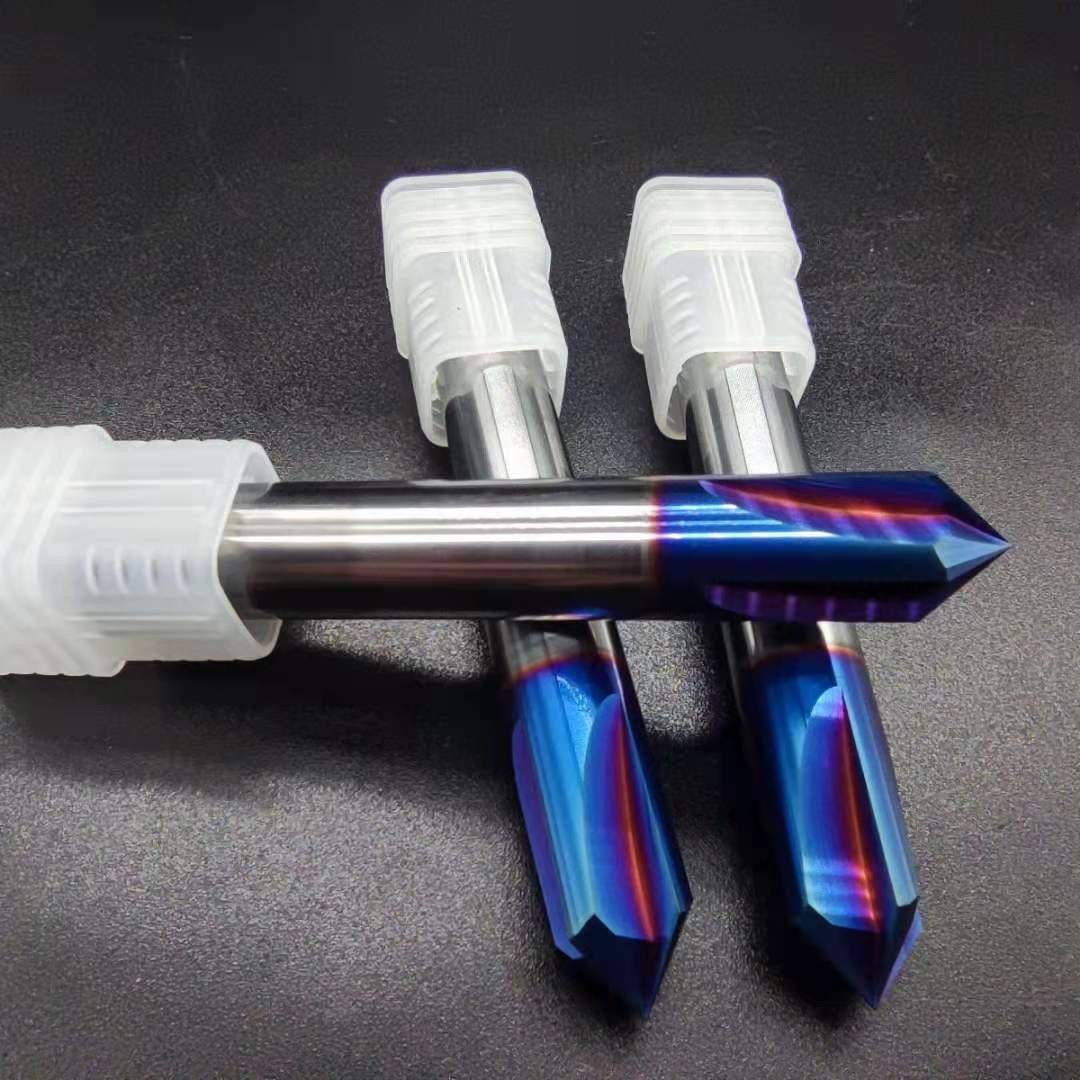

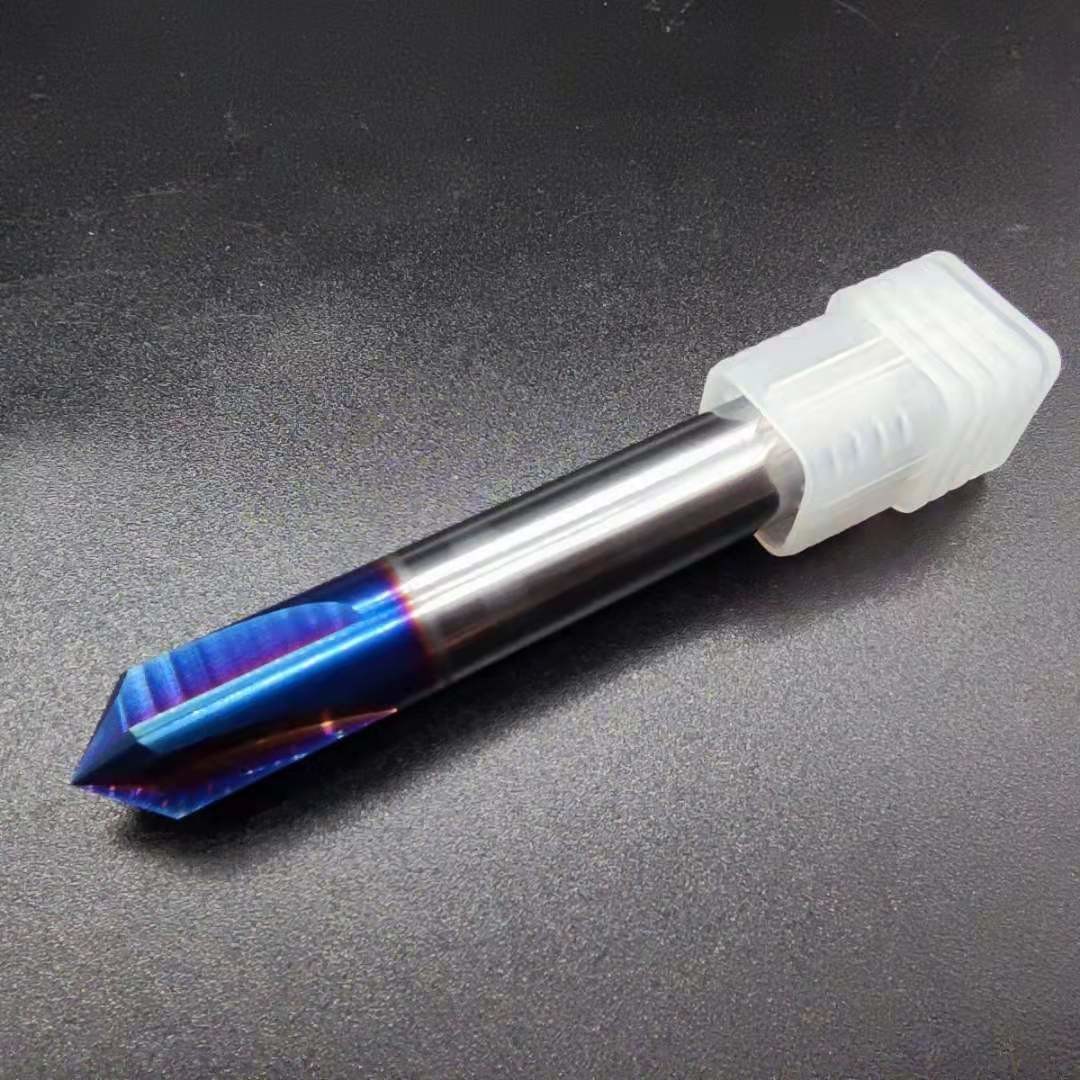

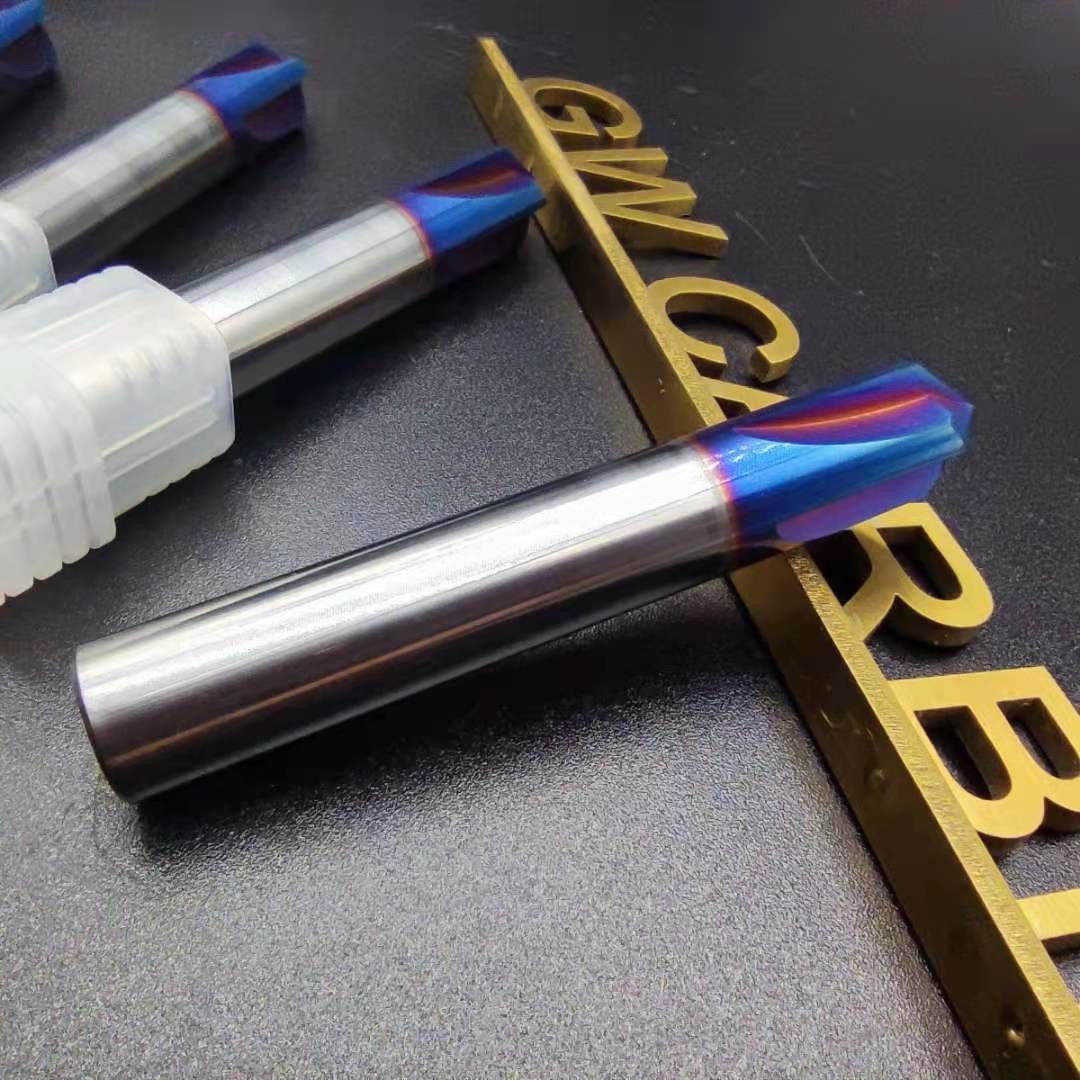

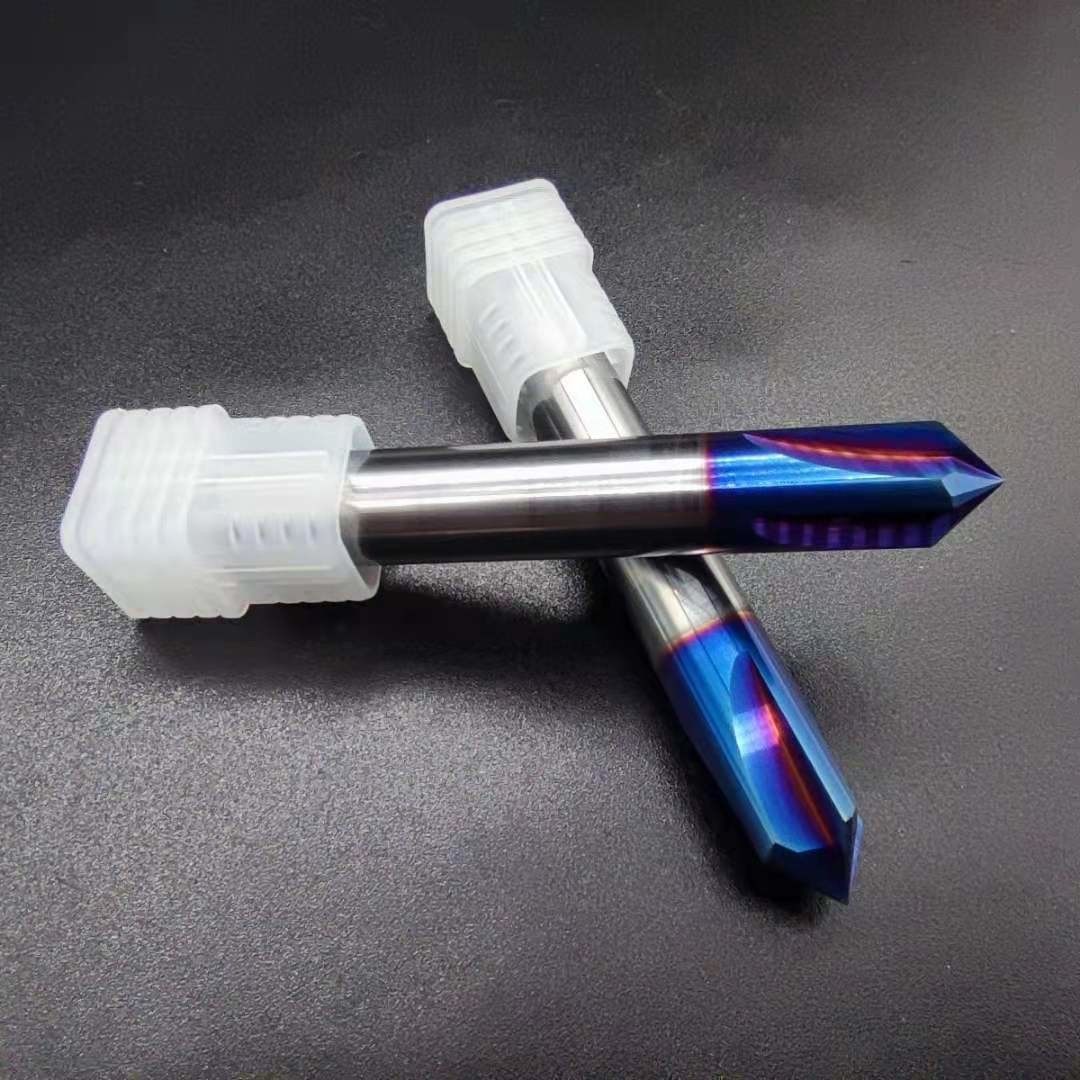

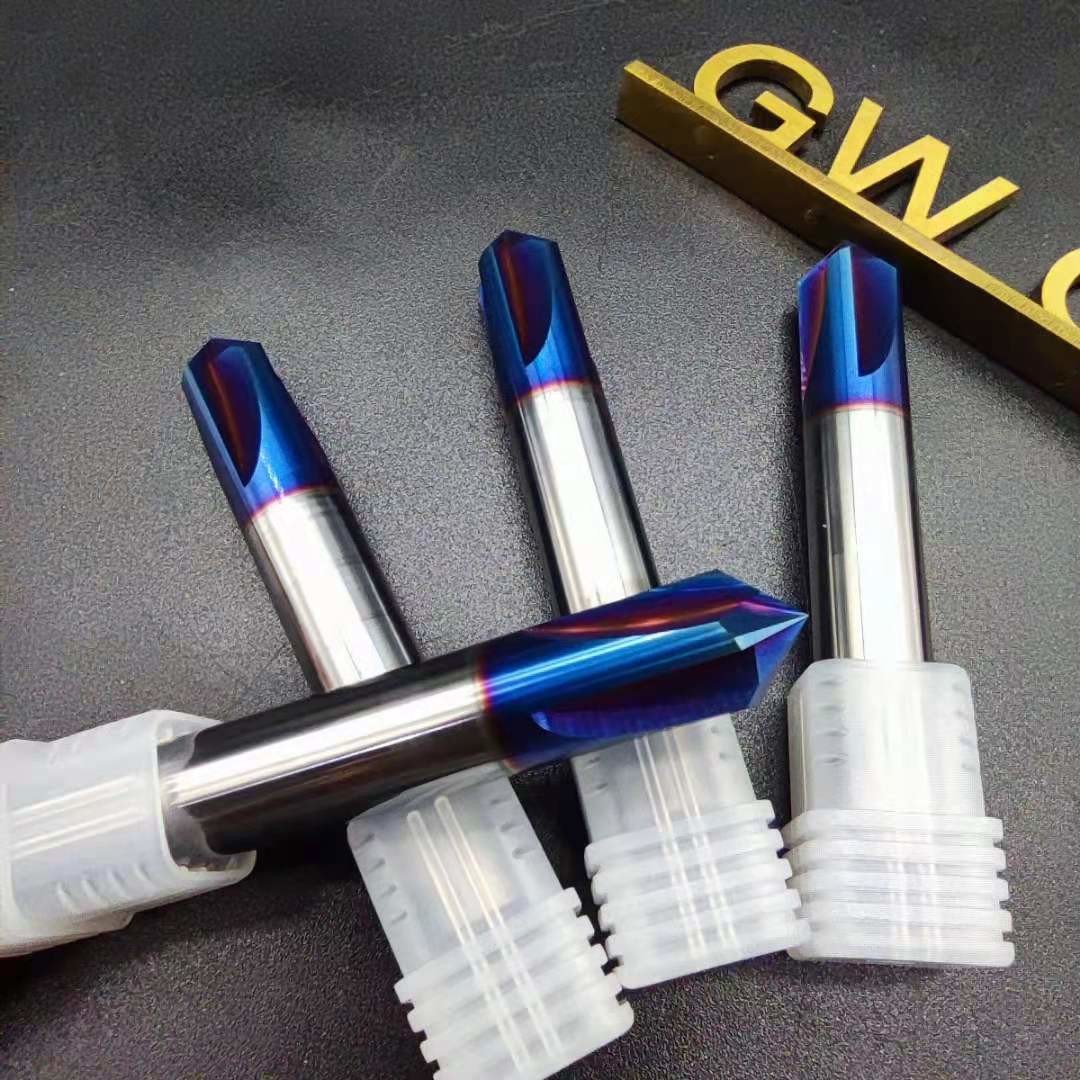

Carbide Chamfering knife With HRC45/60/90 Fixed Point Drill Milling Cutter For Cutting Aluminum, HSS
Description
The chamfering cutter is a tool for milling 60° or 90 degree chamfering and tapering of the workpiece on a milling machine, a drilling machine, a planer, a chamfering machine, etc., and is an end mill. The chamfering knife is also called a chamfering device. The chamfering cutter has a wide application range, and is not only suitable for chamfering of ordinary machined parts, but also suitable for chamfering and deburring of precision hard-to-chamfered workpieces. Such as: aviation, military, automotive industry oil, gas, electric valve, engine block, cylinder, spherical through hole, inner wall hole.
Uses: 60°, 90° chamfer or taper for the round hole of the workpiece, chamfering and chamfering of each surface.
Features: It can finish the processing of the cone at one time. Suitable for small cutting volume machining
Material: HSS, high speed steel
| Size | diameter | Total |
| D4*50 | 4 | 50 |
| D6*50 | 6 | 50 |
| D8*60 | 8 | 60 |
| D10*75 | 10 | 75 |
| D12*75 | 12 | 75 |
| D14*100 | 14 | 100 |
| D16*100 | 16 | 100 |
| D18*100 | 18 | 100 |
| D2*100 | 2 | 100 |
| D4*100 | 4 | 100 |
| D6*100 | 6 | 100 |
| D8*100 | 8 | 100 |
| D10*100 | 10 | 100 |
| D12*100 | 12 | 100 |
| Custimized |
Coating Types
| Main Coating Types | ||||
| Item | AITiN | TiAIN | TiSIN | nAcO |
| Hardness (HV) | 3200 | 2800 | 3600 | 42(GAP) |
| Thickness (μm) | 2.5-3.0 | 2.5-3.0 | 3.0 | 3.0 |
| Oxidation (°) | 900 | 800 | 1000 | 1200 |
| Friction | 0.30 | 0.30 | 0.45 | 0.40 |
| Color | Black | Voilet | Copper | Blue |
Payment
T/T, Western Union, Paypal (Choose your convenient way)
Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
Delivery time
15days
Our Services
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have FedEx,DHL,TNT,UPS,EMS,etc.
Product Show
we also have:
Company Introduction
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, middle east, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
The products we can offer:
Tungsten Carbide products: carbide inserts, tool holders, milling cutters, end mills, drill bits, reamers, wear parts, router bits, and other carbide products.
HSS products: machine taps, drill bits, end mills, gear hobs and other OEM products.
Accessories of CNC toolholders.
Any of your inquiry, we are always welcome!
