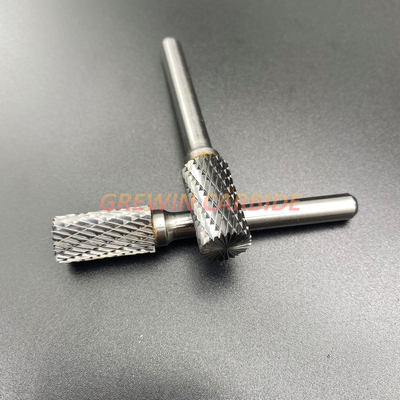

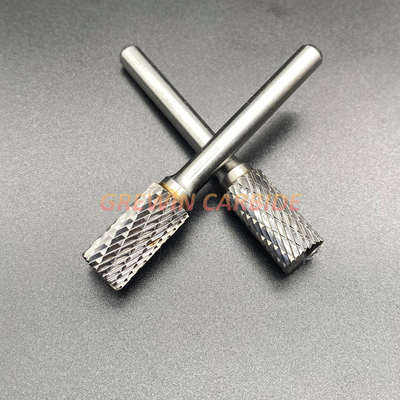

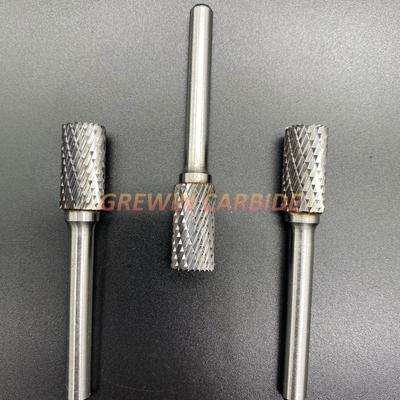

Cylindrical End Cut Burrs Typeb1625m06 Double Cut Tungsten Carbide Burr
Tungsten Carbide Rotary Burr
Tungsten carbide rotary burrs are small cutting tools used in grinding, shaping, and de-burring for materials like ceramics, stone, steel, aluminum, plastics, and hardwood. It offers a high stock removal rate with a smooth milling action to reduce vibration and noise. And it delivers large and good chip removal.
Single Cut
Single cut carbide burr is a general-purpose tool designed for cast iron, steel, some copper and brass, and other ferrous materials. It will give good material removal and a good workpiece finish.
Double Cut
The double-cut allows for rapid stock removal in harder materials. The addition of the left-hand flutes reduces the pulling action, which allows for better operator control. It reduces the size of the chips, and it can be used at slower than normal speeds.
Diamond Cut
The diamond cut is very effective in heat treated and tough alloy steels, producing extremely small chips. It offers very good operator control with good stock removal at the sacrifice of finish. The diamond grind will reduce tool life.
Fast Mill Cut
For use on non-ferrous and non-metallic materials. It is designed for rapid stock removal with minimum chip loading.
Size sheet:
Shape & Type |
Order No. |
Size | Tooth |
||||
Cut Dia |
Cut Length |
Shank Dia |
Overall Length |
Taper Angle |
|||
Cylindrical Type A |
A0313M03 | 3 | 13 | 3 | 50 | S | |
A0413M04 | 4 | 13 | 4 | 50 | S | ||
A0616M06 | 6 | 16 | 6 | 61 | S | ||
A0820M06 | 8 | 20 | 6 | 65 | S | ||
A1020M06 | 10 | 20 | 6 | 65 | S | ||
A1225M06 | 12 | 25 | 6 | 70 | S | ||
A1425M06 | 14 | 25 | 6 | 70 | S | ||
A1625M06 | 16 | 25 | 6 | 70 | S | ||
Cylindrical End Cut Type B |
B0313M03 | 3 | 13 | 3 | 50 | S | |
B0413M04 | 4 | 13 | 4 | 50 | S | ||
B0616M06 | 6 | 16 | 6 | 61 | S | ||
B0820M06 | 8 | 20 | 6 | 65 | S | ||
B1020M06 | 10 | 20 | 6 | 65 | S | ||
B1225M06 | 12 | 25 | 6 | 70 | S | ||
B1425M06 | 14 | 25 | 6 | 70 | S | ||
B1625M06 | 16 | 25 | 6 | 70 | S | ||
Cylindrical Ball Nose Type C |
C0313M03 | 3 | 13 | 3 | 50 | S | |
C0413M04 | 4 | 13 | 4 | 50 | S | ||
C0616M06 | 6 | 16 | 6 | 61 | S | ||
C0820M06 | 8 | 20 | 6 | 65 | S | ||
C1020M06 | 10 | 20 | 6 | 65 | S | ||
C1225M06 | 12 | 25 | 6 | 70 | S | ||
C1425M06 | 14 | 25 | 6 | 70 | S | ||
C1625M06 | 16 | 25 | 6 | 70 | S | ||
Ball Shape Type D |
D0303M03 | 3 | 2.7 | 3 | 50 | S | |
D0403M04 | 4 | 3.6 | 4 | 50 | S | ||
D0605M06 | 6 | 5.4 | 6 | 50 | S | ||
D0807M06 | 8 | 7.5 | 6 | 52 | S | ||
D1009M06 | 10 | 9 | 6 | 54 | S | ||
D1210M06 | 12 | 10 | 6 | 55 | S | ||
D1412M06 | 14 | 12 | 6 | 57 | S | ||
D1614M06 | 16 | 14 | 6 | 59 | S | ||
Oval Type E |
E0610M06 | 6 | 10 | 6 | 55 | S | |
E0813M06 | 8 | 13 | 6 | 58 | S | ||
E1016M06 | 10 | 16 | 6 | 61 | S | ||
E1220M06 | 12 | 20 | 6 | 65 | S | ||
E1422M06 | 14 | 22 | 6 | 67 | S | ||
E1625M06 | 16 | 25 | 6 | 70 | S | ||
Round Tree Type F |
F0313M03 | 3 | 13 | 3 | 50 | S | |
F0618M06 | 6 | 18 | 6 | 63 | S | ||
F0820M06 | 8 | 20 | 6 | 65 | S | ||
F1020M06 | 10 | 20 | 6 | 65 | S | ||
F1225M06 | 12 | 25 | 6 | 70 | S | ||
F1425M06 | 14 | 25 | 6 | 70 | S | ||
F1625M06 | 16 | 25 | 6 | 70 | S | ||
Pointed tree Type G |
G0313M03 | 3 | 13 | 3 | 50 | S | |
G0618M06 | 6 | 18 | 6 | 63 | S | ||
G0820M06 | 8 | 20 | 6 | 65 | S | ||
G1020M06 | 10 | 20 | 6 | 65 | S | ||
G1225M06 | 12 | 25 | 6 | 70 | S | ||
G1425M06 | 14 | 25 | 6 | 70 | S | ||
G1625M06 | 16 | 25 | 6 | 70 | S | ||
Flame Type H |
H0307M03 | 3 | 7 | 3 | 50 | S | |
H0618M06 | 6 | 18 | 6 | 63 | S | ||
H0820M06 | 8 | 20 | 6 | 65 | S | ||
H1025M06 | 10 | 25 | 6 | 70 | S | ||
H1232M06 | 12 | 32 | 6 | 77 | S | ||
H1636M06 | 16 | 36 | 6 | 81 | S | ||
60°Included Angle Type J |
J0605M06 | 6 | 5.2 | 6 | 50 | 60° | S |
J0807M06 | 8 | 7 | 6 | 52 | 60° | S | |
J1008M06 | 10 | 8.7 | 6 | 53 | 60° | S | |
J1210M06 | 12 | 10.4 | 6 | 55 | 60° | S | |
J1613M06 | 16 | 13.8 | 6 | 58 | 60° | S | |
90°Included Angle Type K |
K0603M06 | 6 | 3 | 6 | 48 | 90° | S |
K0804M06 | 8 | 4 | 6 | 49 | 90° | S | |
K1005M06 | 10 | 5 | 6 | 50 | 90° | S | |
K1206M06 | 12 | 6 | 6 | 51 | 90° | S | |
K1608M06 | 16 | 8 | 6 | 53 | 90° | S | |
Included Angle Type L |
L0313M03 | 3 | 13 | 3 | 50 | 10° | S |
L0413M04 | 4 | 13 | 4 | 50 | 10° | S | |
L0616M06 | 6 | 16 | 6 | 61 | 14° | S | |
L0822M06 | 8 | 22 | 6 | 67 | 14° | S | |
L1025M06 | 10 | 25 | 6 | 70 | 14° | S | |
L1228M06 | 12 | 28 | 6 | 73 | 14° | S | |
L1428M06 | 14 | 28 | 6 | 73 | 14° | S | |
L1633M06 | 16 | 33 | 6 | 78 | 14° | S | |
Cone Type M |
M0313M06 | 3 | 13 | 3 | 50 | 14° | S |
M0413M06 | 4 | 13 | 4 | 50 | 14° | S | |
M0618M06 | 6 | 18 | 6 | 63 | 14° | S | |
M0820M06 | 8 | 20 | 6 | 65 | 25° | S | |
M1020M06 | 10 | 20 | 6 | 65 | 25° | S | |
M1225M06 | 12 | 25 | 6 | 70 | 25° | S | |
M1425M06 | 14 | 25 | 6 | 70 | 30° | S | |
M1625M06 | 16 | 25 | 6 | 70 | 32° | S | |
Inverted Cone Type N |
N0607M06 | 6 | 7 | 6 | 52 | 20° | S |
N0809M06 | 8 | 9 | 6 | 54 | 20° | S | |
N1011M06 | 10 | 11 | 6 | 56 | 20° | S | |
N1213M06 | 12 | 13 | 6 | 58 | 20° | S | |
N1616M06 | 16 | 16 | 6 | 61 | 20° | S |
