Material | 100% carbide raw material |
Type | Double/Single cut or others |
Brand | GREWIN /OEM |
Moq | 10pcs (sample are available) |
Sample time | 7-15 days |
Packaging | plastic box and the carton to keep the goods safe. |
Certificate | ISO9001 |
Professional shipping ways | DHL,Fededx,UPS,TNT and etc |
A-Shape | Cylinder Square End |
B-Shape | Cylinder End Cut |
C-Shape | Cylinder Radius End |
D-Shape | Ball |
E-Shape | Oval |

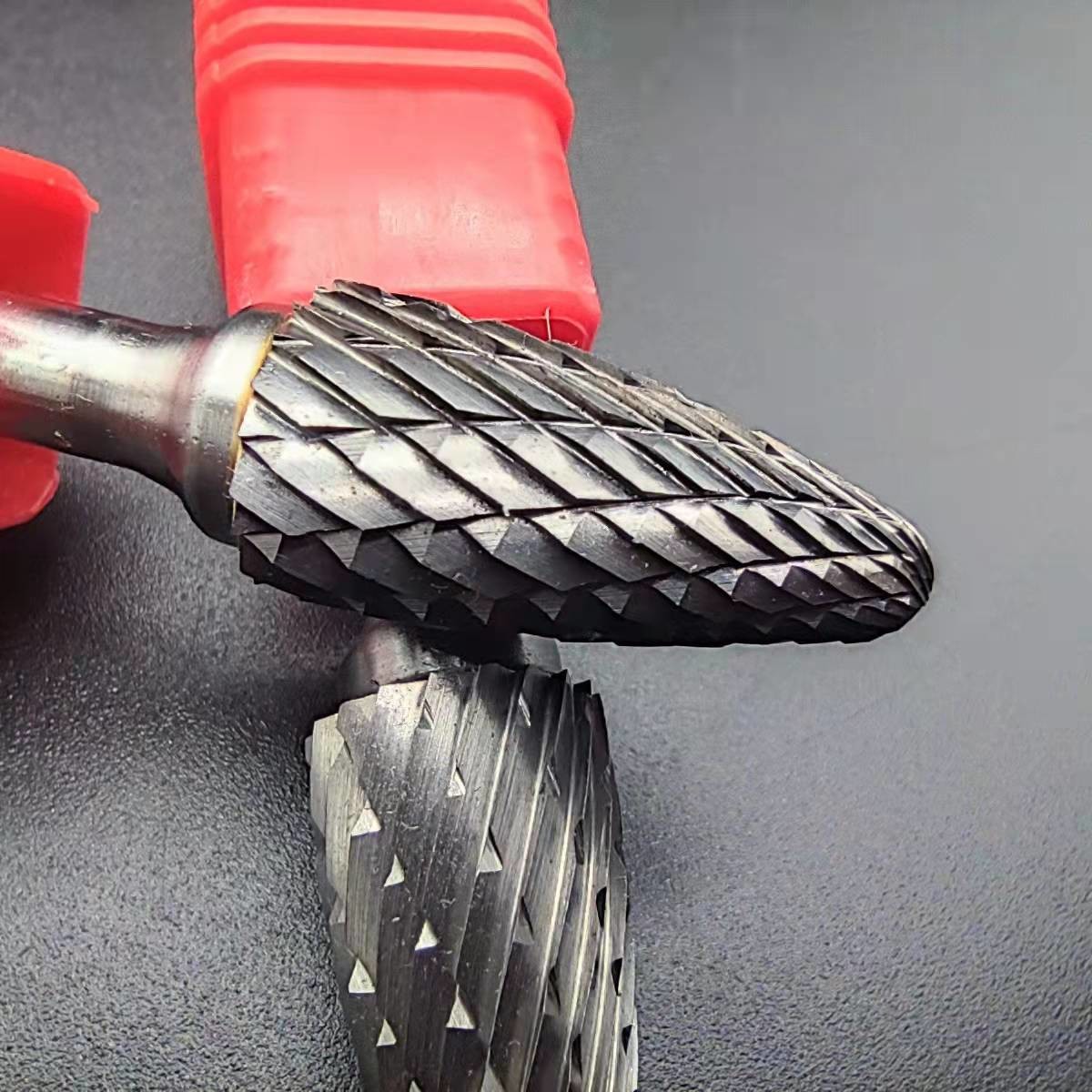

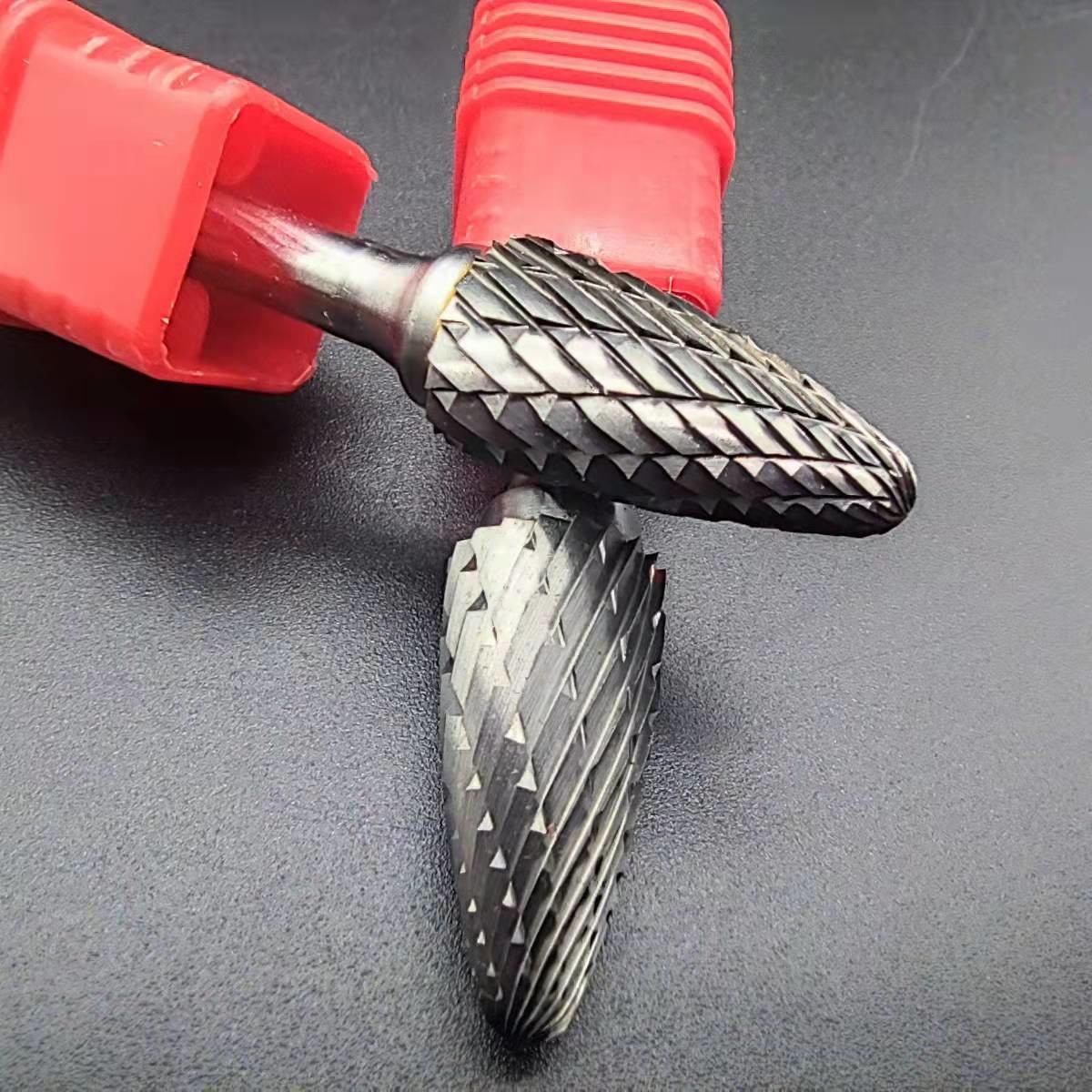

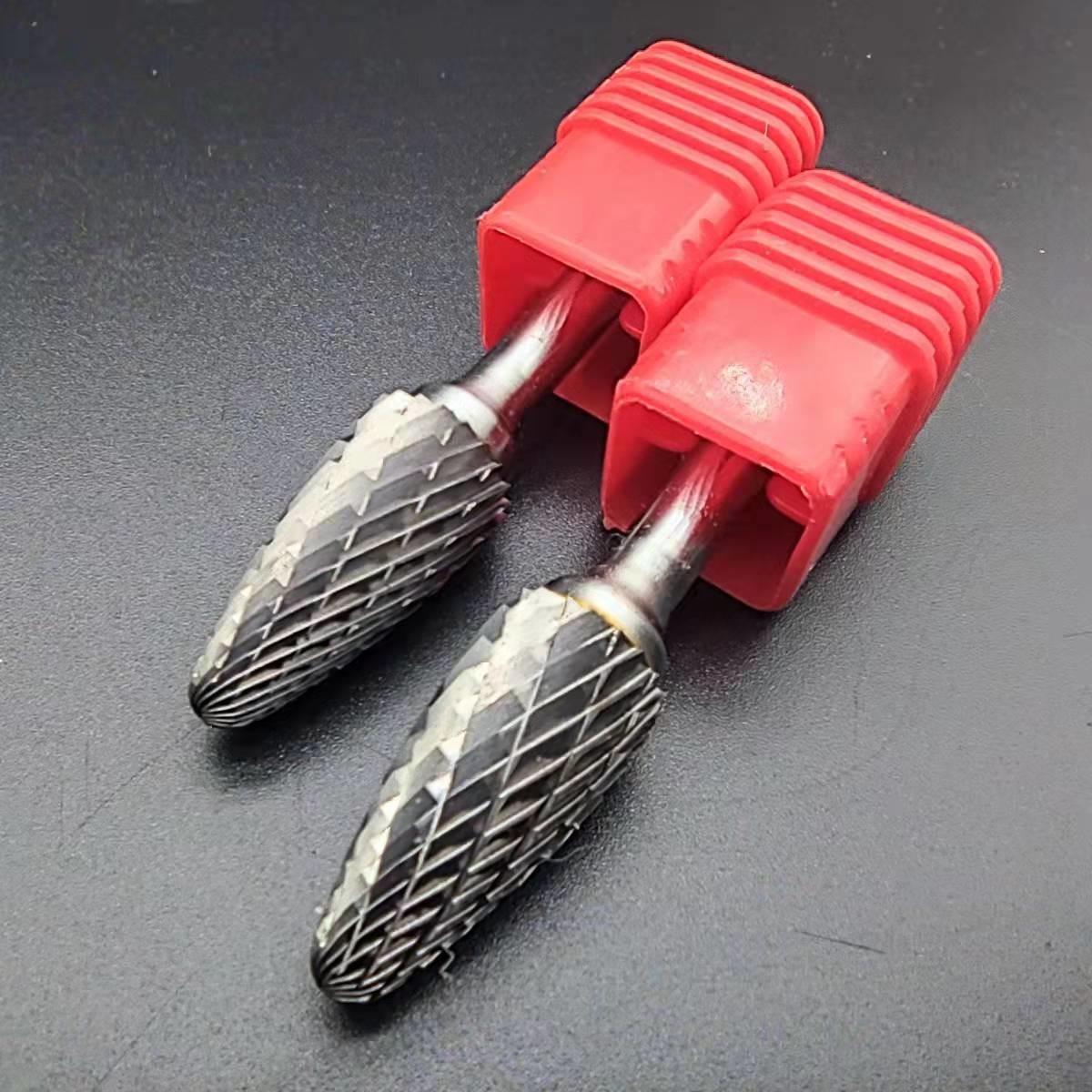

F-Shape | Tree Radius End |
G-Shape | Tree Pointed End |
H-Shape | Flame |
J-Shape | Cone 60° |
K-Shape | Cone 90° |
L-Shape | Taper Radius End |
M-Shape | Cone |
N-Shape | Inverted Cone |
**allows the operator to work more safely,
**reduces tool drive wear,
**provides smooth operating action,
**prevents chatter marks,
**increases tool life and stock removal performances
Application examples
**Deburring.
**Contouring.
**Milling in preparation for build-up welding.
**Weld dressing.
**Milling of acute-angled surfaces.
**Inner contour work, i.e. peripheral and face milling
Code | Cut Dia | Cut Length | Shank Dia | Shank Length |
C0513M03 | 5.0 | 12.7 | 3 | 61 |
C0516M06 | 5.0 | 16 | 6 | 61 |
C0613M03 | 6.3 | 12.7 | 3 | 51 |
C0616M06 | 6.0 | 16 | 6 | 61 |
C0818M06 | 8.0 | 18 | 6 | 63 |
C0820M06 | 8.0 | 20 | 6 | 65 |
C1020M06 | 10.0 | 20 | 6 | 65 |
C1225M06 | 12.0 | 25 | 6 | 70 |
C1625M06 | 16.0 | 25 | 6 | 70 |
