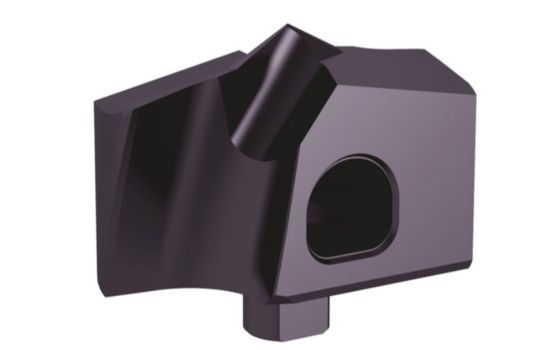

Product Description:
Exchangeable Tip Drilling is a drilling method that involves the use of a tool body that can be reused, with replaceable cutting tips. This innovative technique provides a cost-effective solution for high-volume machining operations.
One of the key advantages of Exchangeable Tip Drilling is its ability to offer consistent performance. By utilizing replaceable cutting tips, this method ensures the reliability and uniformity of the drilling process, resulting in precision and accuracy in the final product.
Moreover, Exchangeable Tip Drilling helps in reducing downtime during machining operations. With its quick and easy tip replacement feature, machining processes can be efficiently carried out without prolonged interruptions, leading to improved productivity.
Features:
Key Advantages of Exchangeable Tip Drilling:
Reduced Tooling Costs
Only the tip needs to be replaced, minimizing the cost per hole compared to solid drills.
Minimized Downtime
Quick and easy tip changes reduce machine setup time and increase productivity.
Consistent Hole Quality
Precision-manufactured tips ensure high repeatability in hole diameter, roundness, and surface finish.
Extended Tool Body Life
The durable tool holder can be reused for many cycles, reducing waste and total tool replacement frequency.
High Flexibility
A single tool body can accommodate different tip geometries and sizes for various materials and applications.
Lower Inventory Requirements
Fewer complete tools need to be stocked; just a range of tips and a few tool bodies are sufficient.
Environmentally Friendly
Less material waste compared to replacing entire drills supports sustainable manufacturing practices.
Technical Parameters:
|
Order Code
|
Cutting
Edges No.
|
Dc
|
L2
|
L1
|
Seat Size
|
Matching Drill Body
|
|
EP197-P-1250
EP197-P-1270
EP197-P-1280
|
2
|
12.50 12.70
12.80
|
5.4
5.4
5.4
|
10.6
10.6
10.6
|
C
C
C
|
EP-G8810.-125-B16
|
|
EP197-P-1300
EP197-P-1310
EP197-P-1320
|
2
|
13.00 13.10
13.20
|
5.4
5.4
5.4
|
10.6
10.6
10.6
|
C
C
C
|
EP-G8810.-13-B16
|
|
EP197-P-1350
|
2
|
13.50
|
5.4
|
10.6
|
C
|
EP-G8810.-135-B16
|
|
EP197-P-1351
EP197-P-1370
EP197-P-1380
EP197-P-1389
|
2
2
2
2
|
13.51 13.70 13.80
13.89
|
5.8
5.8
5.8
5.8
|
11.1
11.1
11.1
11.1
|
B
B
B
B
|
EP-G8810.-136-B16
|
|
EP197-P-1400
EP197-P-1410
EP197-P-1420
EP197-P-1429
EP197-P-1440
|
2
2
2
|
14.00 14.10 14.20 14.29
14.40
|
5.8
5.8
5.8
5.8
5.8
|
11.1
11.1
11.1
11.1
11.1
|
B
B
B
B
B
|
EP-G8810.-14-B16
|
|
EP197-P-1450
EP197-P-1451
EP197-P-1468
EP197-P-1480
|
2
2
2
2
|
14.50
|
5.8
|
11.1
|
B
|
EP-G8810.-145-B16
|
|
14.51 14.68
14.80
|
6.2
6.2
6.2
|
11.6
11.6
11.6
|
A
A
A
|
EP-G8810.-146-B20
|
|
EP197-P-1500
EP197-P-1508
EP197-P-1530
|
2
2
2
|
15.00 15.08
15.30
|
6.2
6.2
6.2
|
11.6
11.6
11.6
|
A
A
A
|
EP-G8810.-15-B20
|
|
EP197-P-1550
EP197-P-1560
EP197-P-1570
EP197-P-1580
|
2
2
2
2
|
15.50 15.60 15.70
15.80
|
6.2
6.2
6.2
6.2
|
11.6
11.6
11.6
11.6
|
A
A
A
A
|
EP-G8810.-155-B20
|
|
EP197-P-1588
EP197-P-1600
EP197-P-1610
EP197-P-1620
EP197-P-1625
EP197-P-1633
EP197-P-1640
EP197-P-1650
EP197-P-1690
|
2
2
2
2
2
2
2
|
15.88 16.00 16.10 16.20 16.25 16.33 16.40 16.50
16.90
|
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
7.0
|
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
12.6
|
1
1
1
1
1
|
EP-G8810.-16-B20
|
Applications:
Applications of Exchangeable Tip Drilling
Automotive Industry
Engine blocks, cylinder heads, transmission components for high-volume, high-speed drilling of cast iron, steel, and aluminum alloys.
Aerospace Industry
Aircraft structural components, landing gear parts for drilling high-strength alloys like titanium and Inconel.
General Machining
CNC machining centers, multi-spindle machines for efficient holemaking in various mechanical parts and tools.
Oil & Gas / Energy Sector
Valve bodies, pumps, and pipeline components for deep hole drilling in tough materials like stainless steels.
Heavy Equipment / Construction Machinery
Large frame components, gear housings, hydraulic systems for durable drilling performance under high torque loads.
Die & Mold Industry
Pre-drilling for EDM or cooling channels and precision holemaking in hardened tool steels.
Metal Fabrication
Structural steel fabrication, tubular assemblies for fast and reliable drilling in beams, plates, and hollow sections.
