Features

Specifications

Flute: 3 Flutes

Advantages: High Efficiency, Long Time

Flute Shape: Square

Precision: High Precision

Helix Angle: 45 Degrees

Item: Metal Cutting Tools

Coating: Uncoated

Application: Aluminum Milling

Highlight:

Sharp Edge Aluminum End Mills

45° Helix Angle Aluminum End Mills

45° Helix Angle aluminum milling tools

Basic Infomation

Place of Origin: China

Brand Name: ARNOLD

Certification: ISO9001:2000

Payment & Shipping Terms

Packaging Details: standard packaging

Delivery Time: 7-15day

Supply Ability: 1000000 Piece/Pieces per Month

Gallery

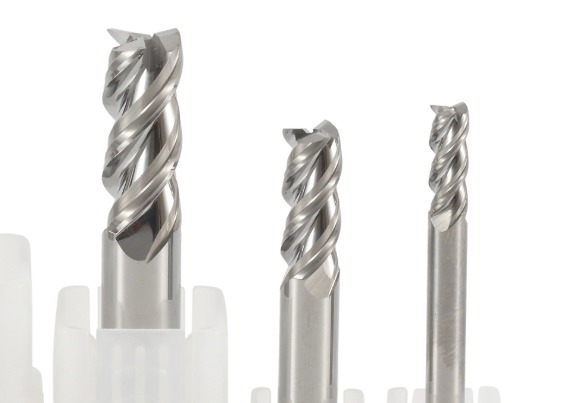

Sharp Edge Aluminum End Mills 45° Helix Angle High Performance Aluminum Cutter

Product Description

Product Description:

Polishing And Passivation Process

Unique polishing passivation process, greatly reduces the coefficient of friction. Especially suitable for aluminum with gold, copper alloy, tempered plastic, and other non-metallic materials;

Sharp Edge Design

The sharp blade design reduces cutting resistance and greatly reduces the generation of burrs and vibration marks. Optimized chip evacuation function through deep groove design;

High Performance Aluminum Cutter

Through fine grinding, the problem of chip sticking is perfectly solved. Can achieve higher requirements on appearance effects and higher metal removal efficiency;

Features:

Key Features of Aluminum End Mills:

Material:

Typically made from carbide (solid carbide or carbide-tipped) for rigidity and heat resistance.

Flute Count:

Usually 2 or 3 flutes.
Fewer flutes prevent chip clogging and improve chip evacuation (important for soft materials like aluminum).

Helix Angle:

High helix angles (typically 35°–45°) enhance chip removal and reduce heat buildup.

Surface Coating (or uncoated):

Often uncoated or coated with ZrN, TiB2, or DLC for better lubricity and reduced aluminum adhesion (galling).
TiN is less common due to aluminum’s tendency to stick to it.

Geometry:

Polished flutes and sharp cutting edges help reduce built-up edge (BUE) and increase tool life.
Corner radius or ball nose may be used for specific applications.

Technical Parameters:

Sharp Edge Aluminum End Mills 45° Helix Angle High Performance Aluminum Cutter 0

Type No.	Diameter	Corner R	Flute length	Effective length	Overall length	Shank Dia	Flutes
ARS0305	D3	R0.5	4.5	9	L50	6	3
ARS0405	D4	R0.5	6	12	L50	6	3
ARS0605	D6	R0.5	9	18	L50	6	3
ARS0610	D6	R1	9	18	L50	6	3
ARS0805	D8	R0.5	12	24	L60	8	3
ARS0810	D8	R1	12	24	L60	8	3
ARS1005	D10	R0.5	15	30	L75	10	3
ARS1010	D10	R1	15	30	L75	10	3
ARS1205	D12	R0.5	18	36	L75	12	3
ARS1210	D12	R1	18	36	L75	12	3
ARS1605	D16	R0.5	24	40	L100	16	3
ARS1610	D16	R1	24	40	L100	16	3
ARS1630	D16	R3	24	40	L100	16	3
ARS2005	D20	R0.5	30	50	L100	20	3
ARS2010	D20	R1	30	50	L100	20	3
ARS2030	D20	R3	30	50	L100	20	3

Applications:

Aerospace components

Automotive parts

Prototyping aluminum housings

General aluminum machining on CNC mills
