3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece

2
MOQ
10—416 USD
Price
3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece
Features Gallery Product Description Chat Now
Features
Specifications
Effective Length: 2D 3D 4D 5D
Surface Treatment: Black Oxide
Coolant Type: Internal/External
Usage: CNC Machine
Suitable Workpiece: Steel, Cast Iron, Aluminum
Shank Type: Straight Shank
Function: Hole Machining Tools
Application: Drilling
Highlight:

3xD CNC Machine U Drill

,

3xD u drill for cnc lathe

,

Black Oxide CNC Machine U Drill

Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Payment & Shipping Terms
Packaging Details: standard packaging
Delivery Time: negotiable
Supply Ability: 100000 sets per month
Product Description

Product Description:

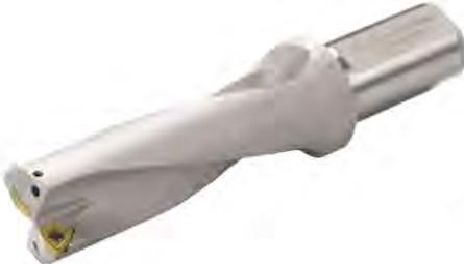

U Drill , also known as an Indexable Insert Drill or Insert-Type Drill , is a high-performance drilling tool designed for efficient hole-making operations in modern CNC machining environments. It combines the strength of a solid body with the versatility of replaceable carbide inserts, offering both productivity and cost-efficiency.



Features:

Features:

Indexable Inserts: Equipped with two or more replaceable carbide inserts, which eliminate the need for regrinding and reduce tool change time.

Multiple Length Options: Available in standard drilling depths such as 2×D, 3×D, 4×D, and 5×D.

Internal Coolant Channels: Provides through-tool coolant delivery for effective chip evacuation and improved tool life.

High Rigidity: The robust shank design ensures high rigidity and vibration resistance, suitable for high-speed machining.

Cost-Effective: Only the inserts need to be replaced, significantly lowering tooling costs over time.

Versatile Material Application: Suitable for machining steel, stainless steel, cast iron, aluminum alloys, and exotic materials.



Technical Parameters:

3xD CNC Machine U Drill Black Oxide For Drilling Aluminum Workpiece 0

Dx3





Cat.No



 ( m m )





Insert





Wren ch





Screw



D



L



L1



L2



L3



d



WC14-03D-C25

WC14.5-03D-C25



14

14.5



121



65



59.5



42

43.5

45

46.5

48

49.5

51

52.5

54

55.5

57

58.5











25











WCMX

030208









M2.5X5









T8



WC15-03D-C25

WC15.5-03D-C25



15

15.5



123



67



61.5



WC16-03D-C25

WC16.5-03D-C25



16

16.5



127



71



65.5



WC17-03D-C25

wC17.5-03D-C25



17

17.5



130



74



68.5



WC18-03D-C25

WC18.5-03D-C25



18

18.5



133



77



71.5



WC19-03D-C25

WC19.5-03D-C25



19

19.5



135



79



73.5



WC20-03D-C25

WC20.5-03D-C25



20

20.5



139



83



77.5



60

61.5

63

64.5

66

67.5

69

70.5









25







WCMX

040208







M2.5X6









T8



WC21-03D-C25

WC21.5-03D-C25



21

21.5



142



86



80.5



WC22-03D-C25

wC22.5-03D-C25



22

22.5



142



86



80.5



WC23-03D-C25

WC23.5-03D-C25



23

23.5



148



92



86.5



WC24-03D-C25

wC24.5-03D-C25



24

24.5



151



95



89.5



72

73.5

75

76.5

78

79.5

81

82.5

84

85.5

87

88.5

90

91.5



25











WCMT

050308











M3.0X7













T10



WC25-03D-C32

WC25.5-03D-C32



25

25.5



160



100



94









32



WC26-03D-C32

WC26.5-03D-C32



26

26.5





165



105



99



wC27-03D-C32

wC27.5-03D-C32



27

27.5



168



108



102



WC28-03D-C32

WC28.5-03D-C32



28

28.5





169





109





103



WC29-03D-C32

wC29.5-03D-C32



29

29.5



172



112



106



WC30-03D-C32

WC30.5-03D-C32



30

30.5



175



115





109



WC31-03D-C32

WC31.5-03D-C32



31

31.5



176



116



110



93

94.5

96

97.5



32





WCMT

06 T308





M3.5X8





T15



WC32-03D-C32

WC32.5-03D-C32



32

32.5



179



119



113



Applications:

Typical Applications:

High-efficiency drilling is often utilized in CNC lathes and machining centers for precision operations.

Rough boring operations, which involve removing large amounts of material quickly, can benefit from specialized drilling techniques.

Pre-machining is commonly done before reaming or finishing boring processes to prepare the workpiece for further refinement.

Large diameter hole machining, typically with diameters of Ø14 mm and above, can be efficiently carried out using advanced drilling methods.
