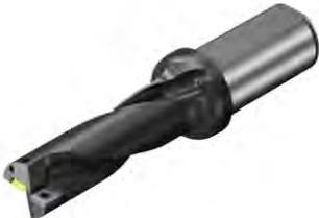

Black Oxide High Precision U Drill Multi Purpose Drilling On CNC Machine 3D

The U Drill , also recognized as an indexable insert drill, is a premium drilling equipment extensively applied in contemporary CNC machining. It is engineered for swift, effective, and cost-efficient drilling of both through and blind holes, commonly with a diameter exceeding 10 mm.

Distinguished from conventional solid drills, the U Drill showcases interchangeable carbide inserts affixed on a sturdy steel body. This setup enables simple upkeep, financially advantageous performance, and augmented productivity, particularly in large-scale production setups.

Features:

Indexable Insert Design: The replaceable inserts in this tool design help eliminate the need for regrinding and significantly reduce tool change time.

Internal Coolant Channels: The internal coolant channels allow for coolant to flow through the drill body directly to the cutting edge. This enhances chip evacuation and extends the tool's life span.

Various Lengths Available: This tool is available in different lengths, including 2×D, 3×D, 4×D, and 5×D effective drilling depths to suit various drilling needs.

High Rigidity: The robust body construction of this tool ensures stability, making it suitable for high-speed or heavy-duty machining operations.

Wide Material Compatibility: This tool is compatible with a wide range of materials including steel, stainless steel, cast iron, aluminum alloys, and more, making it a versatile choice for machining applications.

Technical Parameters:

Applications:

High-speed drilling in CNC lathes and machining centers

Pre-machining for boring, reaming, or tapping

Rough boring of large-diameter holes

Mass production and automated environments
