NaNo Blue Carbide Corner Radius End Mill Tungstan 0.01mm
10pcs
MOQ
negotiable
Price
NaNo Blue Carbide Corner Radius End Mill Tungstan 0.01mm
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

NaNo Carbide Corner Radius End Mill

,

Tungstan Carbide Corner Radius End Mill

,

0.01mm Blue End Mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications

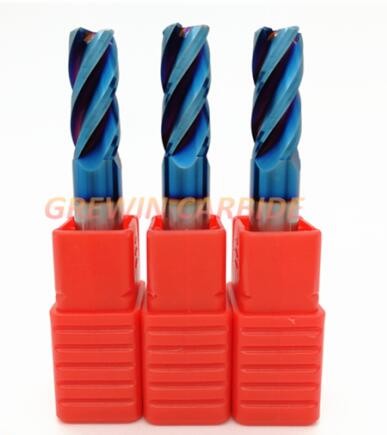

Package: 1 PCS In A Plastic Tube, 10 PCS Per Group
Application: Milling Machining
Processing Type: Metal Cutting Tools
Machine Type: ROLLOMATIC ANCA
Testing Equipment: ZOLLER
Precision: 0.005-0.01mm
Controlling Mode: CNC Tooling System
Flute Number: 1-6 F
Product Description

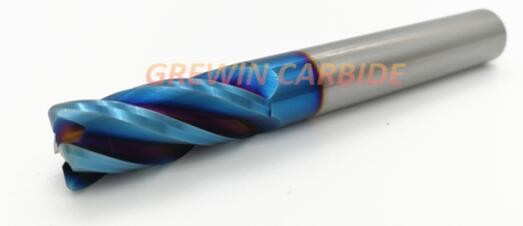

NaNo Blue Color Tungstan Carbide Material Corner Radius End Mill with 2/4 Flutes

Common Problem
(1)Are you manufacturer? Do you have factory?
We are not Professional manufacturer, but we have more than 20 years experience with excellent manufacturer cooperation in this field.
(2)Will you give me a sample?
You can arrange transportation. We can provide samples.
(3) Do you make label?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
(4) How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 3~5 days. We can tell you exact inventory state if you need.
(5) Can you produce carbide Special Tool ?
Yes We can. We can special tool according your drawing and sample.

Introduction:

Coating Color Coating Temperature Thickness (um) HV Application Temperature Friction coefficient
TiAlN Purple-Gray <600°C 3-5 3300 800 °C 0.3
AiTiN Black <600°C 3-5 3500 900 °C 0.3
TiXco Copper <600°C 3-5 3500 1500 °C 0.4
NaNo Blue <600°C 3-5 3800 1200 °C 0.4
AiCrN Silver Gray <480 °C 2-2.5 2500 700 °C 0.3



HRC45 HRC55 HRC60 HRC65
Grain Size: 0.6um
Co: 10 %
Flexural strength: 3350N/mm2
Grain Size: 0.6um
Co: 10 %
Flexural strength: 4000N/mm2
Grain Size: 0.5um
Co: 12 %
Flexural strength: 4300N/mm2
Grain Size: 0.4um
Co: 12.5 %
Flexural strength: 4300N/mm2





 NaNo Blue Carbide Corner Radius End Mill Tungstan 0.01mm 0

Standard Sizes:

Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0×2.5×4D×50L 1.0 2.5 4 50
1.5×4×4D×50L 1.5 4 4 50
2.0×5×4D×50L 2.0 5 4 50
2.5×7×4D×50L 2.5 7 4 50
3.0×8×4D×50L 3.0 8 4 50
3.5×10×4D×50L 3.5 10 4 50
4.0×10×4D×50L 4 10 4 50
4.5×11×6D×50L 4.5 11 6 50
5.0×13×6D×50L 5.0 13 6 50
5.5×13×6D×50L 5.5 13 6 50
6.0×15×6D×50L 6.0 15 6 50
6.5×15×8D×60L 6.5 15 8 60
7.0×17×8D×60L 7.0 17 8 60
7.5×17×8D×60L 7.5 17 8 60
8.0×20×8D×60L 8.0 20 8 60
8.5×25×10D×75L 8.5 25 10 75
9.0×25×10D×75L 9.0 25 10 75
9.5×25×10D×75L 9.5 25 10 75
10.0×25×12D×75L 10.0 25 12 75
10.5×25×12D×75L 10.5 25 12 75
11.0×28×12D×75L 11.0 28 12 75
11.5×28×12D×75L 11.5 28 12 75
12.0×30×12D×75L 12.0 30 12 75
13.0×33×16D×100L 13.0 33 16 100
14.0×40×16D×100L 14.0 40 16 100
15.0×40×16D×100L 15.0 40 16 100
16.0×40×16D×100L 16.0 40 16 100
17.0×40×20D×100L 17.0 40 20 100
18.0×40×20D×100L 18.0 40 20 100
19.0×40×20D×100L 19.0 40 20 100
20.0×40×20D×100L 20.0 40 20 100
25.0×40×25D×100L 25.0 40 25 100
