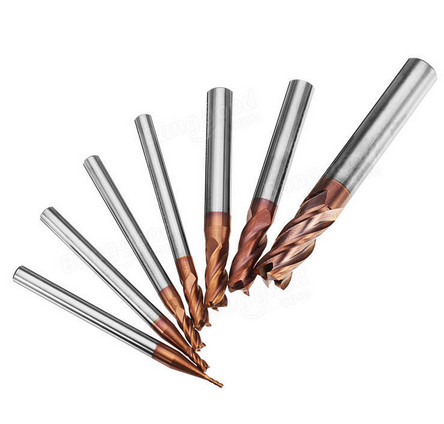

3 4 Flute Carbide Square End Mill Tialn Coating For Metal Milling
10pcs
MOQ
negotiable
Price
3 4 Flute Carbide Square End Mill Tialn Coating For Metal Milling
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

4 Flute Carbide Square End Mill

,

Metal Carbide Square End Mill

,

Tialn End Mill

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Name: Carbide Square End Mill
Length: 50-150mm, Customized
Flute: 3 Flutes For Aluminum, 4 Flutes For Steel
Material: Tungsten Cobalt Alloy
Place Of Origin: Zhuzhou, Hunan, China
Processing Precision: 0.02mm
Coating: Altin, Tialn, OEM
Suitable For: Steel, Mould Steel, Stainless Steel
Product Description



3/4 Flutes, Carbide Square End Mills with Coating For Metal Milling









4 flutes Flat End Mill

Tungsten Carbide 4 Flutes Flat and Square End Mills

Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4




HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc



Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper

Blue





Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets " HP" from Germany, specializing in manufacture large diameter tools;
1 set " Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.

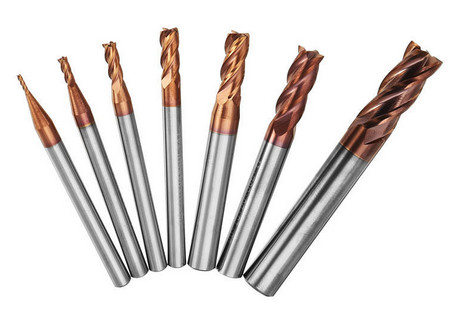

3 4 Flute Carbide Square End Mill Tialn Coating For Metal Milling 1
