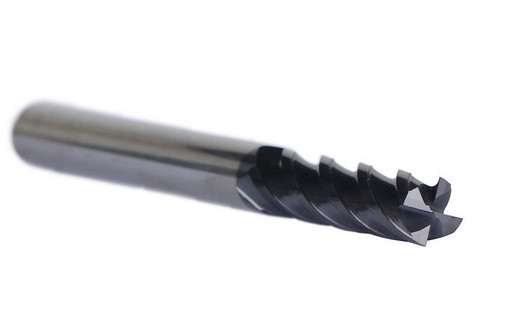

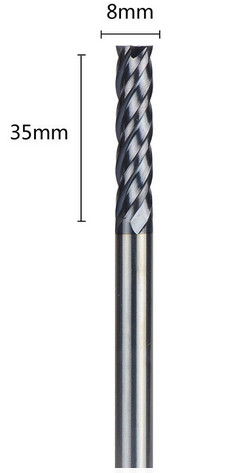

Tungsten Carbide Square end mill, HRC 45 Cutter For Heavy Cutting Dia 8mm
Features:
- Quality materials, durable, precision processing, efficient work, humanized design.
| Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
| TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
| AiTiN | Black | <600°C | 3-5 | 3500 | 900 °C | 0.3 |
| TiXco | Copper | <600°C | 3-5 | 3500 | 1500 °C | 0.4 |
| NaNo | Blue | <600°C | 3-5 | 3800 | 1200 °C | 0.4 |
| AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C |
0.3 |
sizes:
|
Code No.
|
Diamter d |
Cutting length l |
Total length L |
Shank D |
Flutes Z |
| 2GW4-01002050 | 1 | 3 | 50 | 4 | 2 |
| 2GW4-01504050 | 1.5 | 4 | 50 | 4 | 2 |
| 2GW4-02050500 | 2 | 5 | 50 | 4 | 2 |
| 2GW4-02507050 | 2.5 | 7 | 50 | 4 | 2 |
| 2GW4-03008050 | 3 | 8 | 50 | 4 | 2 |
| 2GW4-04010050 | 4 | 10 | 50 | 4 | 2 |
| 2GW4-04015075 | 4 | 15 | 75 | 4 | 2 |
| 2GW4-04020100 | 4 | 20 | 100 | 4 | 2 |
| 2GW4-05012050 | 5 | 13 | 50 | 6 | 2 |
| 2GW4-06015050 | 6 | 15 | 50 | 6 | 2 |
| 2GW4-06020075 | 6 | 20 | 75 | 6 | 2 |
| 2GW4-06020100 | 6 | 30 | 100 | 6 | 2 |
| 2GW4-06020060 | 8 | 20 | 60 | 8 | 2 |
| 2GW4-08025075 | 8 | 25 | 75 | 8 | 2 |
| 2GW4-08025100 | 8 | 35 | 100 | 8 | 2 |
| 2GW4-010025075 | 10 | 25 | 75 | 10 | 2 |
| 2GW4-010040100 | 10 | 40 | 100 | 10 | 2 |
| 2GW4-012020075 | 12 | 30 | 75 | 12 | 2 |
| 2GW4-012040100 | 12 | 40 | 100 | 12 | 2 |
| 2GW4-014020080 | 14 | 30 | 80 | 14 | 2 |
| 2GW4-014100100 | 14 | 30 | 100 | 14 | 2 |
| 2GW4-016040100 | 16 | 40 | 100 | 16 | 2 |
| 2GW4-018040100 | 18 | 40 | 100 | 18 | 2 |
| 2GW4-020040100 | 20 | 40 | 100 | 20 | 2 |
| 2GW4-06040150 | 6 | 40 | 150 | 6 | 2 |
| 2GW4-08050150 | 8 | 50 | 150 | 8 | 2 |
| 2GW4-010050150 | 10 | 50 | 150 | 10 | 2 |
| 2GW4-012050150 | 12 | 50 | 150 | 12 | 2 |
| 2GW4-014060150 | 14 | 60 | 150 | 14 | 2 |
| 2GW4-016060150 | 16 | 60 | 150 | 16 | 2 |
| 2GW4-018060150 | 18 | 60 | 150 | 18 | 2 |
| 2GW4-020060150 | 20 | 60 | 150 | 20 | 2 |
Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " " CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets " HP" from Germany, specializing in manufacture large diameter tools;
1 set " Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.
1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
