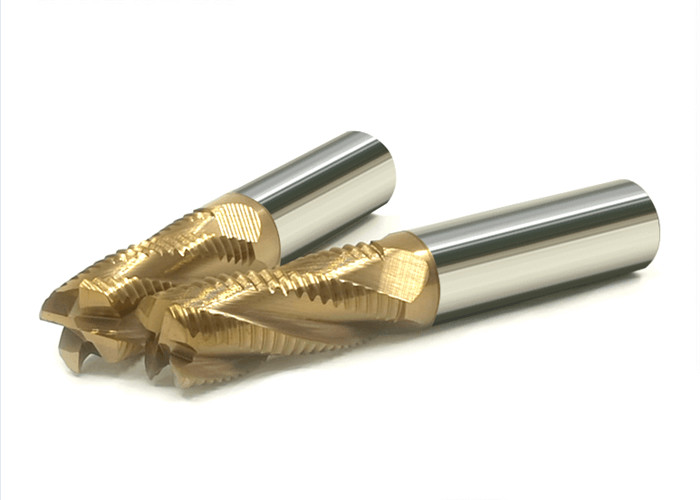

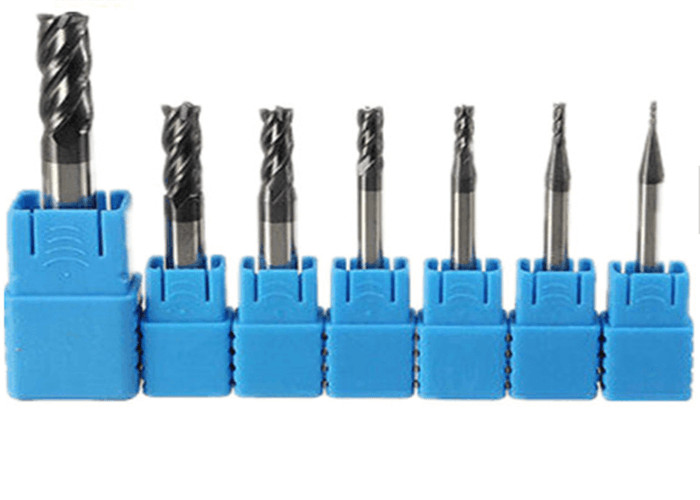

Tungsten CNC Indexable Carbide End Mills Lathe Machines Cutting Tools
1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER
3. Coating
Coating | Color | Coating Temperature | Thickness (um) | HV | Application Temperature | Friction coefficient |
TiAlN | Purple-Gray | <600°C | 3-5 | 3300 | 800 °C | 0.3 |
AiTiN | Black | <600°C | 3-5 | 3500 | 900 °C | 0.3 |
TiXco | Copper | <600°C | 3-5 | 3500 | 1500 °C | 0.4 |
NaNo | Blue | <600°C | 3-5 | 3800 | 1200 °C | 0.4 |
AiCrN | Silver Gray | <480 °C | 2-2.5 | 2500 | 700 °C | 0.3 |
4. Payment
T/T, Western Union, Paypal (Choose your convenient way)
5. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
6.Standard Sizes
Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
4.0×10×4D×50L | 4 | 10 | 4 | 50 |
4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
25.0×40×25D×1 |
