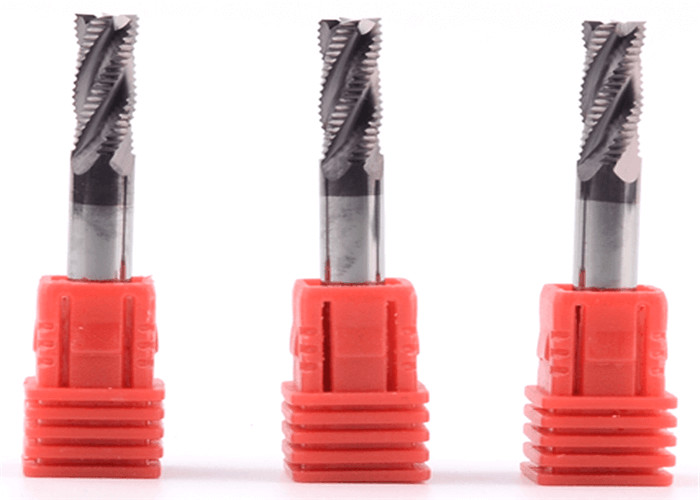

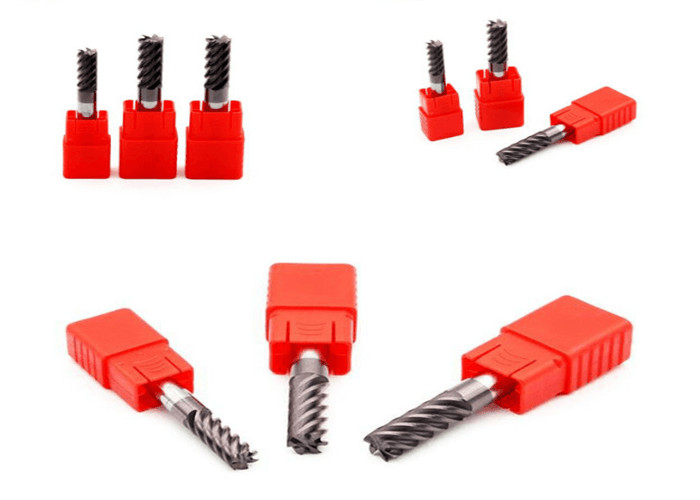

Lathe Machines Cutting Indexable End Mills Tungsten Carbide CNC Tools
1. Products Description
Micro grain raw material
Grain size: 0.4-0.6μm
Co 10%, 12%
TRS >3600 N/mm2
Hardness HRA 91.8-92.5
Work piece HRC45-50 HRC55-60 HRC65 HRC70
Helix angle 30°-45 °
Diameter of cutting edge 0.2-0.9 mm; 1-20 mm
Diameter of rods 4-20 mm
Length 50-100 mm
Cutting Form Flat, Square, Ball nose, Corner Radius, Taper Flute, etc
Flutes No. 1-7
2. Application
Used for cutting Carbon steel, Tool steel, Mould steel, Stainless steel, Titanium alloy, Copper, Cast Iron and Aluminium, etc.
Grinding equipment: , ANCA, ROLLOMATIC
Testing equipment: ZOLLER
3. Excellent Raw Material and Coating Type
| TYPE | Material | MG grain size | CO | Flexural strength |
| HRC45 | YG10X | 0.7um | 10% | 3320N/mm2 |
| HRC55 | YL10.2 &WF25 | 0.6um | 10% | 4000N/mm2 |
| HRC60 | K44 &K40 | 0.5um | 12% | 4300N/mm2 |
| HRC65 | H10F | 0.5um | 10% | 4300N/mm2 |
| Coating Type | Hardness(HV) | Thickness(UM) | Oxidation Temp.(℃) | Color | Friction Coefficient |
| AlTin | 3200 | 2.5-3 | 900 | Black | 0.3 |
| Tialn | 2800 | 2.5-3 | 800 | Violet | 0.3 |
| TiSin | 3600 | 3 | 1000 | Copper | 0.45 |
| Naco | 42(GPA) | 3 | 1200 | Bule | 0.4 |
4. Payment
T/T, Western Union, Paypal (Choose your convenient way)
5. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
6.Standard Sizes
| Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
| 1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
| 1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
| 2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
| 2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
| 3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
| 3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
| 4.0×10×4D×50L | 4 | 10 | 4 | 50 |
| 4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
| 5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
| 5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
| 6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
| 6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
| 7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
| 7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
| 8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
| 8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
| 9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
| 9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
| 10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
| 10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
| 11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
| 11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
| 12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
| 13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
| 14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
| 15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
| 16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
| 17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
| 18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
| 19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
| 20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
| 25.0×40×25D×1 |
7. Why Choose Grewin Tools?
(1) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products
(2) High precision CNC machines, high standard and strict inspection
(3) Strong R&D center and QC teams meet your special demands
(4) The company has passed ISO 9001: 2008 quality system
(5) Possesses advanced production equipments, complete testing instruments
(6) Fast delivery time and Convenient Transportations
(7) More than 1000 products are available
(8) For your suggestions or complaints, We will handle them Soonest
(9)Nonstandard products are available according to customer's drawing or customer's sample.
(10)We olso design and manufacture products,according to the request of customer's.
(11)If you have any questions,please cantact me anytime,JINOO will warmly welcome your inquiry.
.
8. Common Problem
(1) Are you manufacturer? Do you have factory?
We are not Professional manufacturer, but we have more than 20 years experience with excellent manufacturer cooperation in this field.
(2)Will you give me a sample?
You can arrange transportation. We can provide samples.
(3) Do you make label?
Yes, we do. We have laser machine, can laser your logo and sizes on the body of milling cutter, also can print labels.
(4) How about the delivery time?
According to the sizes and quantity, delivery time is different. Usually be 3~5 days. We can tell you exact inventory state if you need.
(5) Can you produce carbide Special Tool ?
Yes We can. We can special tool according your drawing and sample.
Warmly welcome your kind contact and inquiry here!
