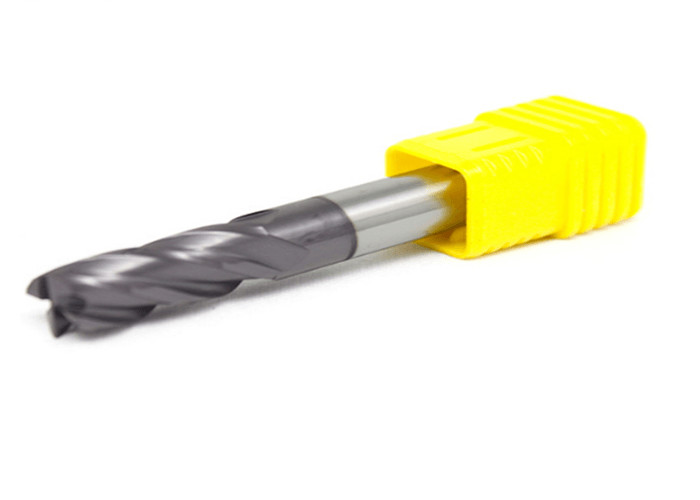

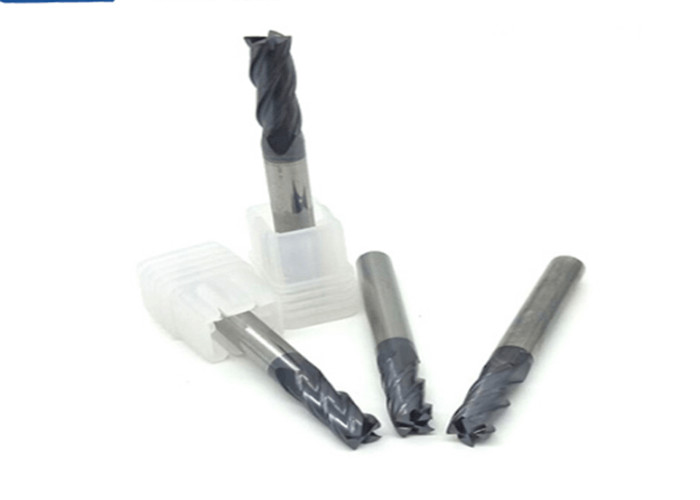

2/3/4/6 Flutes Flat End Mills Carbide CNC Machines Cutting Tools
1. . Packing
Laser print brand name on cutter shank, 1 PCS in a plastic tube, 10 PCS per group
2.Payment
T/T, Western Union, Paypal (Choose your convenient way)
3. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (Choose your convenient way)
4.Standard Sizes
Order No. | Flute dia (d) | Cutting length ( l ) | Shank dia (D) | Overall length(L) |
1.0×2.5×4D×50L | 1.0 | 2.5 | 4 | 50 |
1.5×4×4D×50L | 1.5 | 4 | 4 | 50 |
2.0×5×4D×50L | 2.0 | 5 | 4 | 50 |
2.5×7×4D×50L | 2.5 | 7 | 4 | 50 |
3.0×8×4D×50L | 3.0 | 8 | 4 | 50 |
3.5×10×4D×50L | 3.5 | 10 | 4 | 50 |
4.0×10×4D×50L | 4 | 10 | 4 | 50 |
4.5×11×6D×50L | 4.5 | 11 | 6 | 50 |
5.0×13×6D×50L | 5.0 | 13 | 6 | 50 |
5.5×13×6D×50L | 5.5 | 13 | 6 | 50 |
6.0×15×6D×50L | 6.0 | 15 | 6 | 50 |
6.5×15×8D×60L | 6.5 | 15 | 8 | 60 |
7.0×17×8D×60L | 7.0 | 17 | 8 | 60 |
7.5×17×8D×60L | 7.5 | 17 | 8 | 60 |
8.0×20×8D×60L | 8.0 | 20 | 8 | 60 |
8.5×25×10D×75L | 8.5 | 25 | 10 | 75 |
9.0×25×10D×75L | 9.0 | 25 | 10 | 75 |
9.5×25×10D×75L | 9.5 | 25 | 10 | 75 |
10.0×25×12D×75L | 10.0 | 25 | 12 | 75 |
10.5×25×12D×75L | 10.5 | 25 | 12 | 75 |
11.0×28×12D×75L | 11.0 | 28 | 12 | 75 |
11.5×28×12D×75L | 11.5 | 28 | 12 | 75 |
12.0×30×12D×75L | 12.0 | 30 | 12 | 75 |
13.0×33×16D×100L | 13.0 | 33 | 16 | 100 |
14.0×40×16D×100L | 14.0 | 40 | 16 | 100 |
15.0×40×16D×100L | 15.0 | 40 | 16 | 100 |
16.0×40×16D×100L | 16.0 | 40 | 16 | 100 |
17.0×40×20D×100L | 17.0 | 40 | 20 | 100 |
18.0×40×20D×100L | 18.0 | 40 | 20 | 100 |
19.0×40×20D×100L | 19.0 | 40 | 20 | 100 |
20.0×40×20D×100L | 20.0 | 40 | 20 | 100 |
25.0×40×25D×100L | 25.0 | 40 | 25 | 100 |
5.Super raw material
(1) We accept Mix coated in the same model number, Also one batch with different coating and types.
(2) AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
6. Excellent Raw Material and Coating Type
TYPE | Material | MG grain size | CO | Flexural strength |
HRC45 | YG10X | 0.7um | 10% | 3320N/mm2 |
HRC55 | YL10.2 &WF25 | 0.6um | 10% | 4000N/mm2 |
HRC60 | K44 &K40 | 0.5um | 12% | 4300N/mm2 |
HRC65 | H10F | 0.5um | 10% | 4300N/mm2 |
Coating Type | Hardness(HV) | Thickness(UM) | Oxidation Temp.(℃) | Color | Friction Coefficient |
AlTin | 3200 | 2.5-3 | 900 | Black | 0.3 |
Tialn | 2800 | 2.5-3 | 800 | Violet | 0.3 |
TiSin | 3600 | 3 | 1000 | Copper | 0.45 |
Naco | 42(GPA) | 3 | 1200 | Bule | 0.4 |
7. Delivery time
Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days
8.Company Information
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
Warmly welcome your kind contact and inquiry here!
