Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality
10pcs
MOQ
negotiable
Price
Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Place Of Origin: Zhuzhou City,Hunan Province,China
Model Number: GW0120,GW0170,GW0220,GW0270,GW0320,GW0370......GW2520
Dimensions: Diameter 1.2-25.2mm,length 330mm Or Customized
Density: 14.5g.cm3
Grain Size: 0.8
Characteristics: High Precision, High Hardness,high Thermal Conductivity, Wear-resistance, Anti-corros Etc
Hardness: 91.5
Tolerance: H6 Or Customized
Product Description

Tungsten Carbide Rod Blanks for End Mills/Drills/Reamers Making with High Quality





Types available are:

Tungsten carbide rods diameter from 0.5mm-45mm, length from 38.1mm-1000mm
One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm



Normal Grades are:

GW10 WC: 90%, CO:10%, Grain size: 0.8, Density: 14.4, Hardness: 91.8HRA, T.R.S: 3800

GW06 WC: 94%, CO:6%, Grain size: 0.4, Density: 14.85, Hardness: 94.8HRA, T.R.S: 3800
GW08 WC: 92%, CO:8%, Grain size: 0.4, Density: 14.65, Hardness: 93.6HRA, T.R.S: 3800

GW12 WC: 88%, CO:12%, Grain size: 0.4, Density: 14.25, Hardness: 92.6HRA, T.R.S: 350

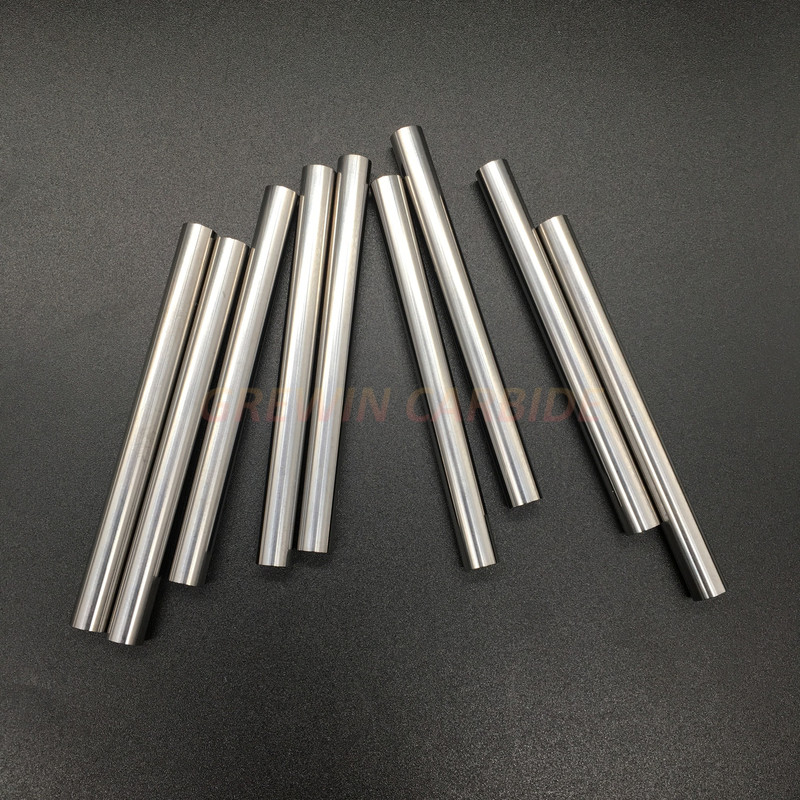

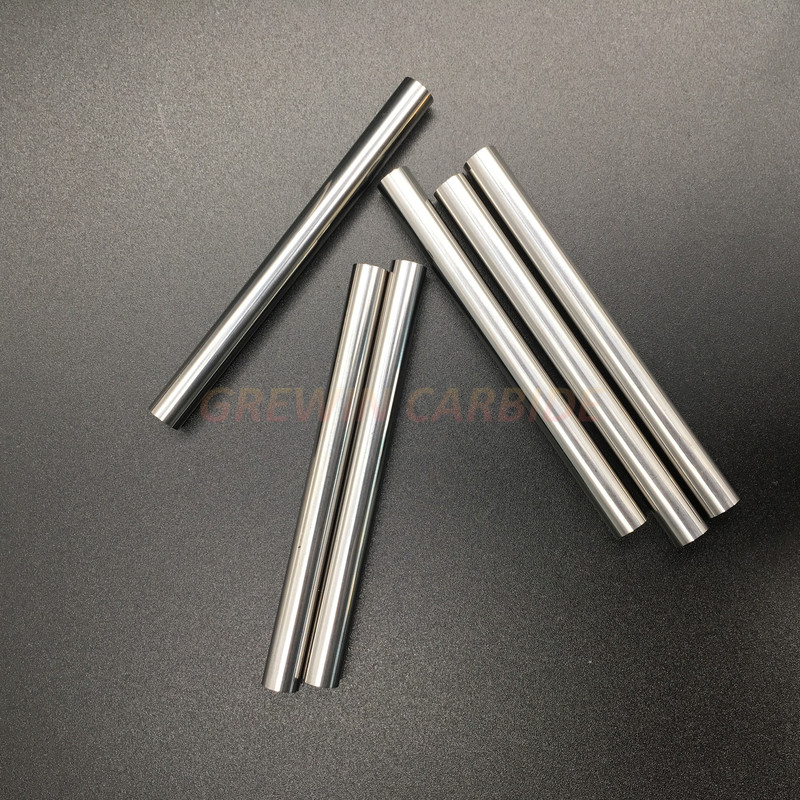

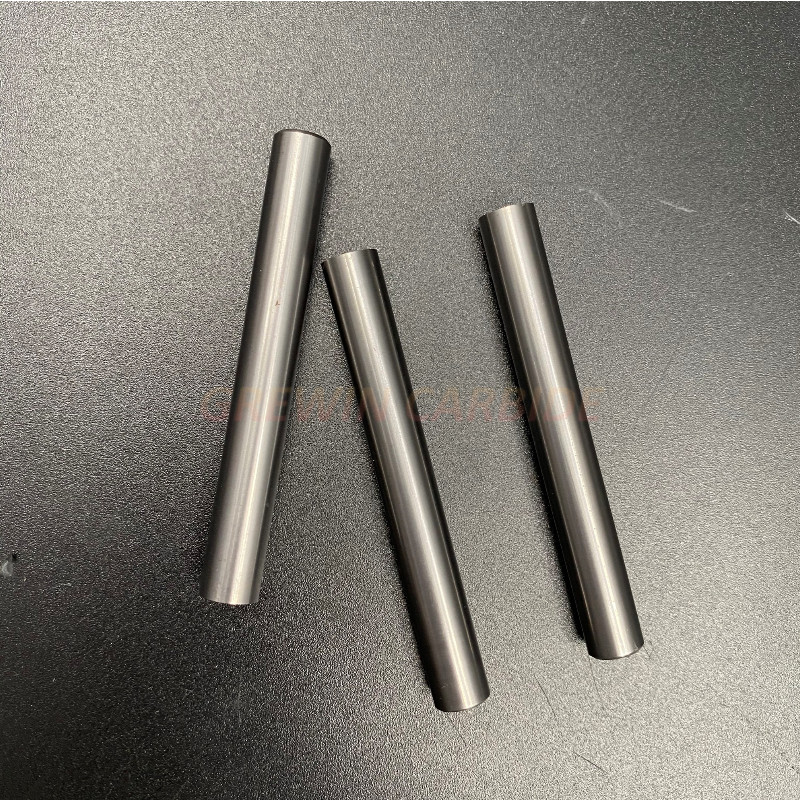

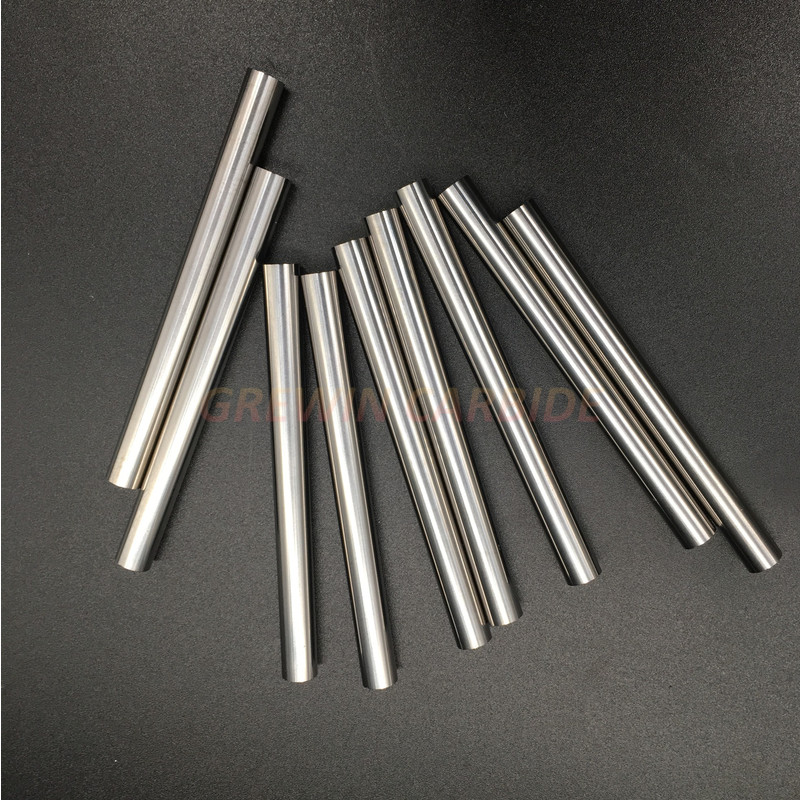

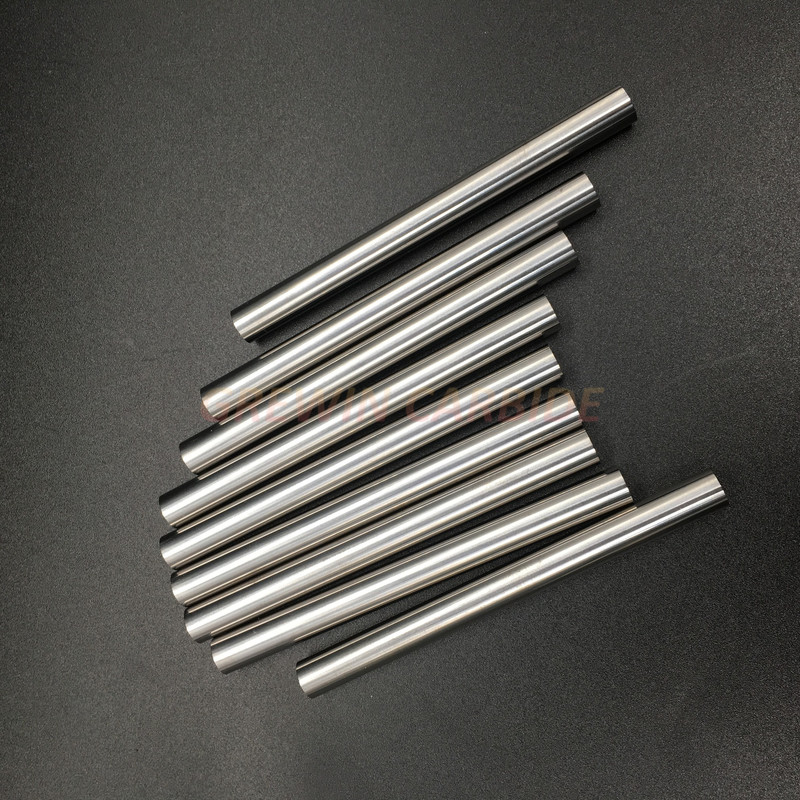

Product show:

Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality 0Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality 1Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality 2Tungsten Carbide Grinding Rod Dimater16X330mm with High Quality 3



Applications



--1,Tungsten carbide rod is mainly applicable to make drill, milling cutter, reamer.

--2,It can also be used for cutting, stamping and measuring tools.

--3,It is used in paper making, packaging, printing and non-ferrous metal processing industries.

--4,In addition, it is also widely used in the processing of high-speed steel cutting tools, carbide cutter, hard alloy cutting tool,

cutting tool, NAS tool, carbide drill, milling cutter core bit, high speed steel, taperd milling cutter, metric, micro end milling,

reaming pilot, electronic tool, drilling ladder, metal cutting saw, dgun drills, gun rods, angle milling cutter, tungsten carbide

tools ect.



Types available


Tungsten carbide rods diameter from 1mm-45mm, length from 50mm-1000mm
One coolant hole rods diameter from 3mm -30mm, length is 330mm
Two coolant holes rods diameter from 4mm -20mm, length is 330mm
Two spiral coolant hole with 30 degree, diameter from 6mm -20mm, length is 330mm





 Packing
Laser print brand name on cutter shank, 1 pcs in a plastic tube, 10 pcs per group

Delivery time

Keep stock for regular types
Samples: 3 - 5 days
Regular orders: 7 - 10 days



Our advantages

(1).Solid carbide lasting long life in hardened steels, Grain size carbide, high toughness, high-wearing feature.
(2).Non-standard can be customized according to customer's requirement
(3).We have produce ability to satisfy your orders,another manufacturing bases will be completed in the near month.
(4).100% virgin tungsten carbide powder
(5).10 years professional experience





Warmly Welcome Your Kind Contact And Inquiry Here!
