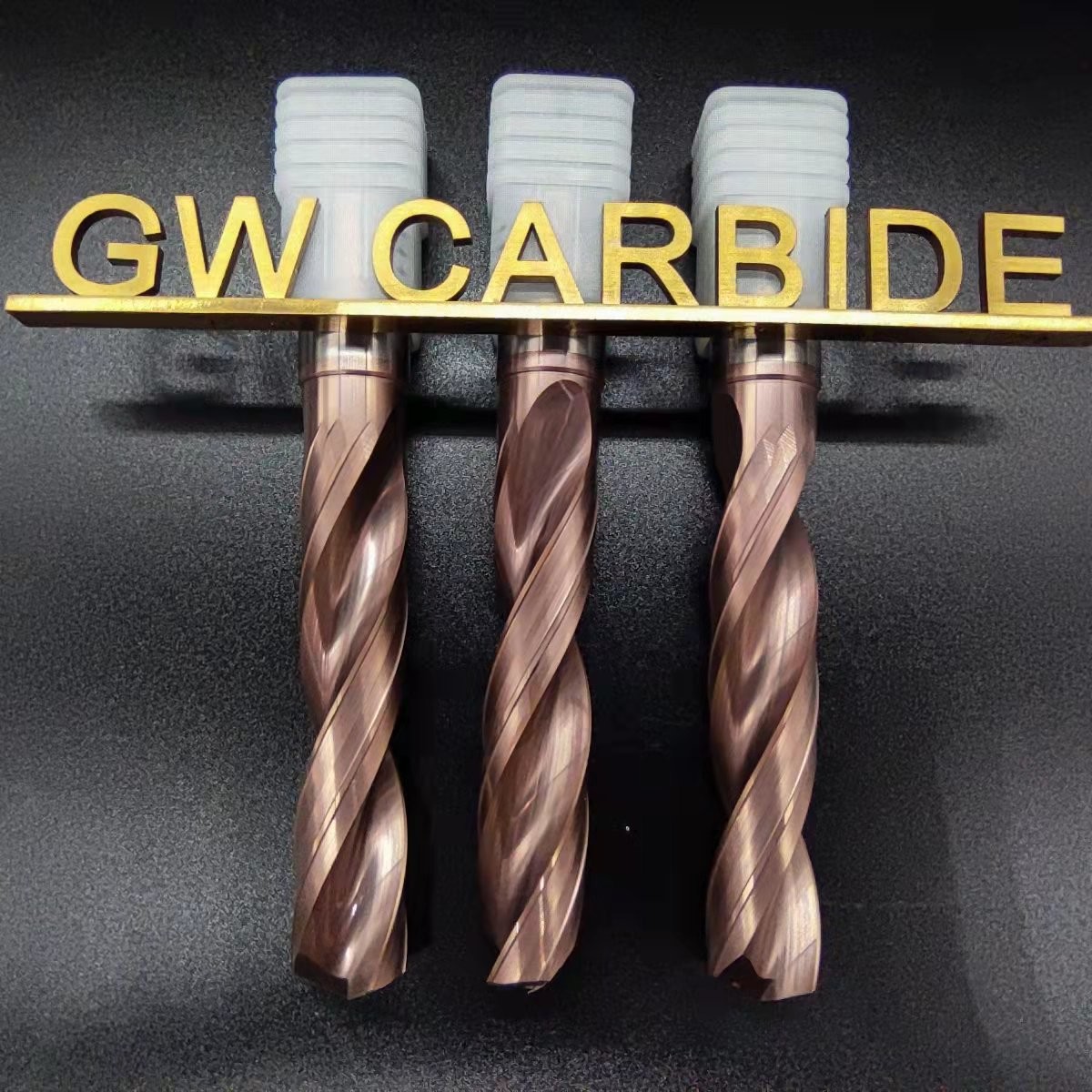

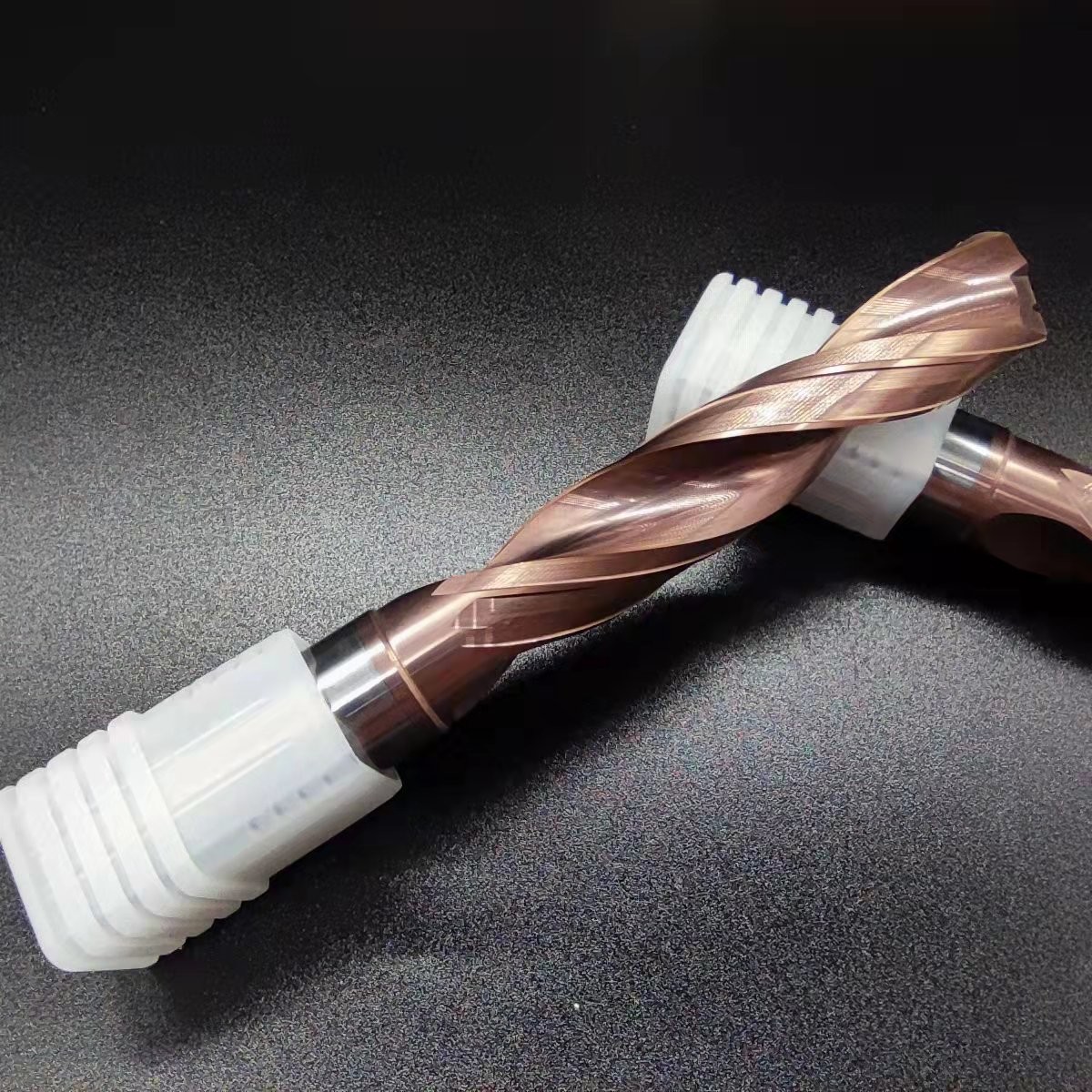

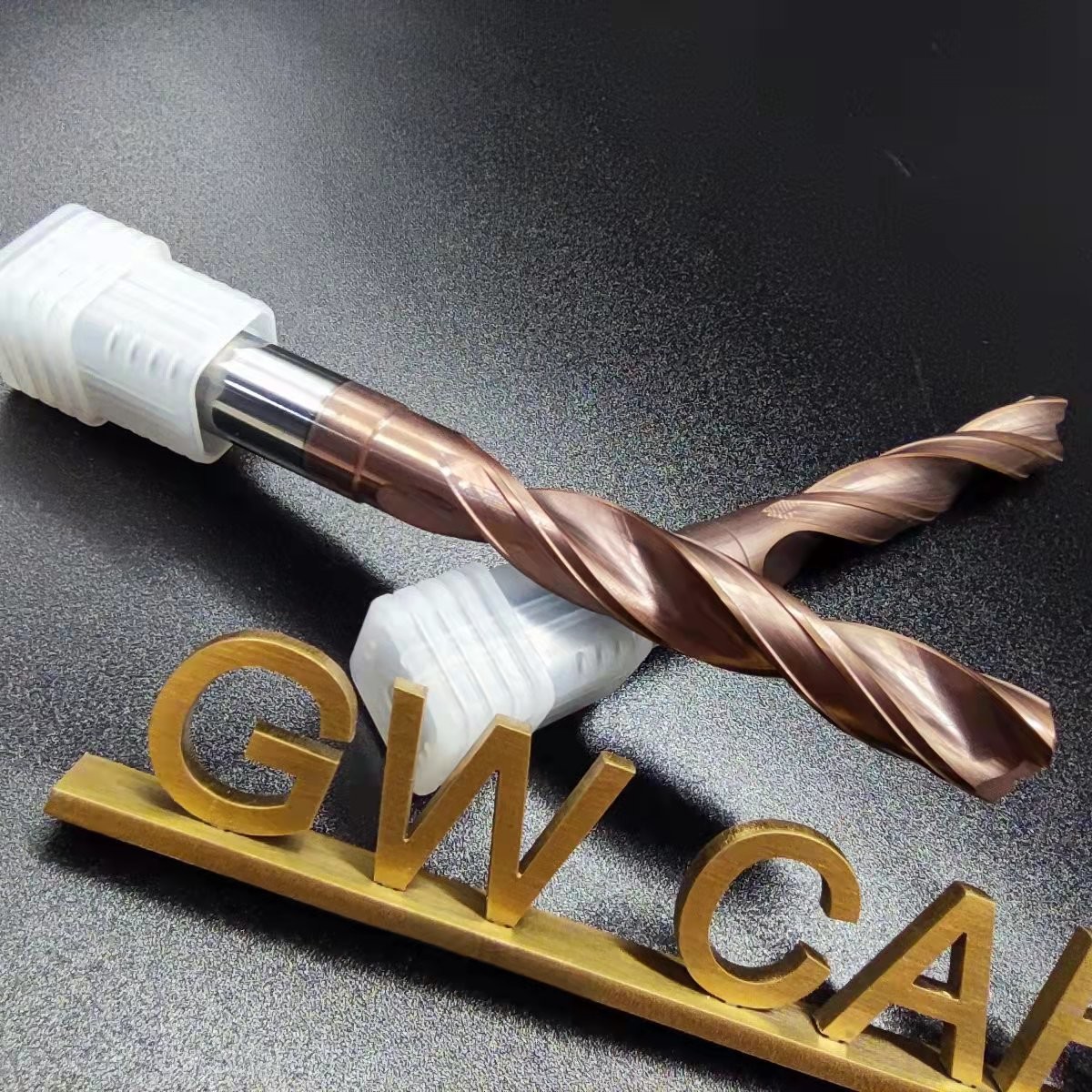

Solid Tungsten Carbide 3XD HRC55 Twist Drill Without Coolant Hole
Specification:
1. Products Description
| Products Name | Carbide endmill cutter |
| Work piece | HRC45 , HRC55 , HRC60 , HRC65 , HRC68 |
| Coating Type | ALTIN , TiAIN ,Ticn ,Tin ,Tialn ,Uncoated |
| Size | Standard sizes or customized sizes |
| Logo | According your requests |
| TRS | >3600 N/mm2 |
| Hardness | HRA 91.8-92.5 |
| Helix angle | 30°-45 ° |
| Diameter of cutting edge | 0.2-0.9 mm; 1-20 mm |
| Length | 50,60-100 mm |
| Flutes No. | 2/3/4/5/6,etc |
| Cutting Form | Flat, Square, Ball nose, Corner Radius, Long neck,Roughing,etc |
We 'd like to introduce our Solid Carbide Drills to you:
Types available are:
Solid Carbide Mirco Twist Drill Bits
Solid Carbide Three Edge Drill
Coolant-fed Solid Carbide Drill 3XD, 5XD, 8XD
Solid Carbide Twist Drill 5XD
Solid Carbide 90deg, 120deg Point Drill
Solid Carbide Drill Bit For Aluminum
Solid Carbide Straight Flutes Drill Bits
Solid Carbide A Type Center Drill 60deg, 90deg
Instruction for use:
Use for the process of structual steel, Alloy steel, Staineless steel and other common materials;
Precise centering ability which enable to gain stable dimensional accurancy and fine surface quality;
Suitable for process system with excellent rigidity.
Description:
Chip Evacuation Groove special designed, easy evacuation.
Measurements manufactured according to standard DIN6537
Chisel edge grinding IRK standard
Shank according to DIN6535HA h6
Tolerance of cutting edge diameter m7
Coating
| Coatings | Hardness HV |
Thickness um |
Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
Raw micro grain material, high hardness and T.R.S
Co: 10%,Wc:90%
TRS: >3600 N/mm2
HRA: 91.8-92.4, HRC:45-50/55-60/65/68
Grain size: 0.4-0.6μm
Helix angle: 30°-45 °
Diameter of cutting edge: 0.2-0.9mm; 1-20mm
Diameter of rods: 4-20mm
Length: 50-100mm
Cutting Form: Flat,Square,Ball nose, Ball, Corner Radius, Taper Flute, etc.
Flutes No.: 1-7
Application and usage
Suitable to cut Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Stainless steel, Plastic, Arcylic, etc.
Coating
Black oxide is an inexpensive black coating. A black oxide coating provides heat resistance and lubricity, as well as corrosion resistance. Coating increases the life of high-speed steel bits.
Titanium nitride (TiN) is a very hard ceramic material that can be used to coat a high-speed steel bit (usually a twist bit), extending the cutting life by three or more times. However, when the bit is sharpened the new edge will not have the benefits of the coating.
Titanium aluminum nitride (TiAlN) is a similar coating that can extend tool life five or more times.
Titanium carbon nitride (TiCN) is another coating also superior to TiN.
Diamond powder is used as an abrasive, most often for cutting tile, stone, and other very hard materials. Large amounts of heat are generated by friction, and diamond coated bits often have to be water cooled to prevent damage to the bit or the workpiece.
Zirconium Gewin has been used as a drill bit coating for some tools under the Craftsman brand name
| Coatings | Hardness HV |
Thickness um |
Friction Coefficient | Oxidation Temp | Color |
| AlTiN | 3500 | 2.5-3 | 0.3 | 900 | Black |
| TiAlN | 2800 | 2.5-3 | 0.3 | 900 | Violet |
| TiSiN | 3600 | 3 | 0.45 | 1000 | Copper |
| AlTiSiN | 400 | 3 | 0.4 | 1200 | Blue |
| TiN | 2500 | 2-3 | 0.5 | 600 | Gold |
Standard sizes:
|
Why Choose Grewin Tools?
(1) Possesses advanced production equipments, complete testing instruments
(2) High precision CNC machines, high standard and strict inspection
(3) More than 1000 products are available
(4) The company has passed ISO 9001: 2008 quality system
(5) The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products
(6) Fast delivery time and Convenient Transportations
(7) Strong R&D center and QC teams meet your special demands
(8) For your suggestions or complaints, We will handle them Soonest
(9) Nonstandard products are available according to customer's drawing or customer's sample.
(10) We olso design and manufacture products, according to the request of customer's.
(11) If you have any questions, please cantact me anytime, Grewin will warmly welcome your inquiry.
