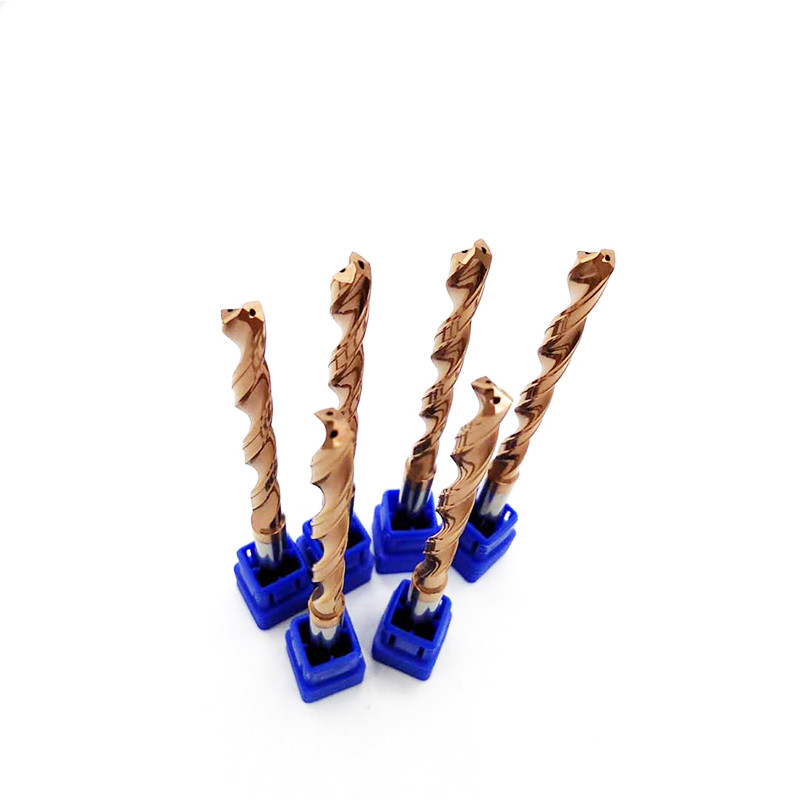

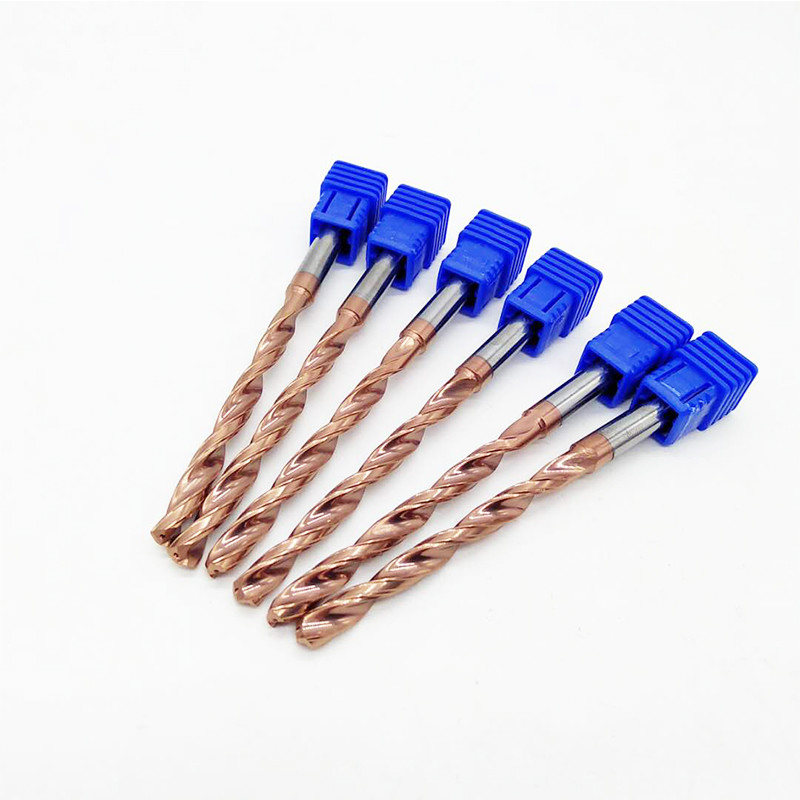

Tungsten Carbide Drills Solid Carbide Twist Drills Coated for Steel
1. Product Name: Tungsten Carbide Drills Solid Carbide Twist Drills Coated for Steel
2. Standard size 4mm,6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm
3. High Precision,Good Surface & Performace
4. Certification: ISO9001:2008 , Supplier Assessment Certificate
|
Product Name
|
Tungsten Carbide Drills Solid Carbide Twist Drills Coated for Steel
|
|
Material
|
Tungsten Carbide,solid carbide,cemented carbide
|
|
HRC
|
45/55/58/60/65
|
|
Type
|
Carbide End Mills
|
|
Coating
|
Various Coatings Available , Altin, Tialn, Tisin, Tin, DLC,Nano, Diamond
|
|
Helix Angle
|
35degree,45degree,55degree,
|
|
Size
|
Metric & Inch size Based Tools
|
|
Thread
|
coarse teeth , fine teeth
|
|
Tolerance
|
h6
|
|
Suitable For
|
Steel, Stainless Steel, Die Steel, Mould Steel, Carbon Steel, Cast Iron, Copper, ect.
|
Srandard size
| Diameter | Flute Length | Overall Length | shank Length | Shank Dia. |
| 3.0 | 20 | 62 | 36 | 6 |
| 3.2 | 20 | 62 | 36 | 6 |
| 3.5 | 20 | 62 | 36 | 6 |
| 3.8 | 20 | 62 | 36 | 6 |
| 4.0 | 24 | 66 | 36 | 6 |
| 4.2 | 24 | 66 | 36 | 6 |
| 4.5 | 24 | 66 | 36 | 6 |
| 4.8 | 28 | 66 | 36 | 6 |
| 5.0 | 28 | 66 | 36 | 6 |
| 5.2 | 28 | 66 | 36 | 6 |
| 5.5 | 28 | 66 | 36 | 6 |
| 5.8 | 28 | 66 | 36 | 6 |
| 6.0 | 28 | 66 | 36 | 6 |
| 6.2 | 34 | 74 | 36 | 8 |
| 6.5 | 34 | 74 | 36 | 8 |
| 6.8 | 34 | 74 | 36 | 8 |
| 7.0 | 34 | 74 | 36 | 8 |
| 7.5 | 37 | 79 | 36 | 8 |
| 7.8 | 37 | 79 | 36 | 8 |
| 8.0 | 37 | 79 | 36 | 8 |
| 8.2 | 43 | 89 | 40 | 10 |
| 8.5 | 43 | 89 | 40 | 10 |
| 8.8 | 43 | 89 | 40 | 10 |
| 9.0 | 43 | 89 | 40 | 10 |
| 9.5 | 43 | 89 | 40 | 10 |
| 10.0 | 43 | 89 | 40 | 10 |
