Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap
10pcs
MOQ
Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: China
Brand Name: Grewin
High Light:

Gold High Speed Steel Tap

,

Blind Hole High Speed Steel Tap

,

HSS Spiral Flute Tap

Payment & Shipping Terms
Packaging Details: plastics box
Delivery Time: 7-10days
Payment Terms: T/T, Western Union, T/T, Western Union
Supply Ability: 10000pcs
Specifications
Material: HSS
Name: HSS TAP
Color: Gold
Product Description



HSS Co tap Machine Taps

Features:
1. Suitable for processing through hole and blind hole of the internal thread.
2. The tap let dust tank in a spiral, have bigger spiral Angle, the smooth clearance,increase before work Angle, reduce the tapping torque.
3. Cutting efficiency of the taps is high, the clearance effect is good, strength, long service life, cutting torque is small, the machining accuracy stability etc.
4. The taps is suitable for ductile metal products and discontinuous surface of the screw hole tapping work, blind hole and deep blind.
5. Has simple structure, easy to use; can be manual operation, also can work on the tool machine, is widely applied in the production.
We are engaged in manufacturing all kinds of screw taps. These taps are suitable for machine or hand tapping operarions and a wide variety of materials and conditions.
We have HSS & Carbide taps (Die ) in metric , inch and UNC size. Except the standard size, we also could customized as per your request !


Product Show:

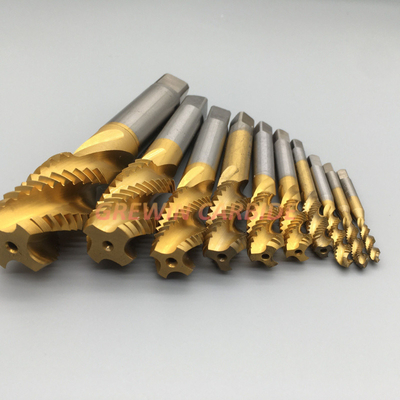

Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap 0

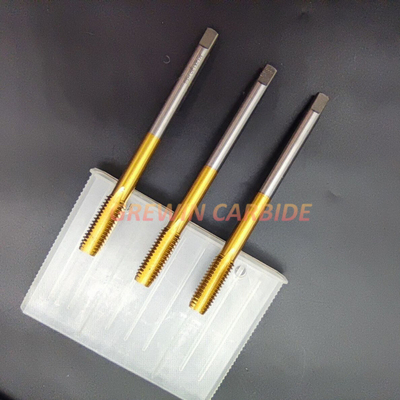

Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap 1

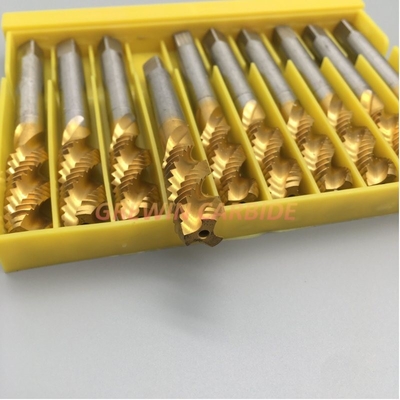

Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap 2

Production process
Mixture(WC+CO+alcohol)→wet grinding→ drying→grinding again→suppression(Oil press,Automatic hydraulic press)→QC for blank→rubber extrusion→Wc+Co→sintering(HIP )→tungsten carbide blank→Fine grinding→QC→packing.

Standard Sizes:


Order No. Flute dia (d) Cutting length ( l ) Shank dia (D) Overall length(L)
1.0*2.5*4D*50L 1.0 2.5 4 50
1.5*4*4D*50L 1.5 4 4 50
2.0*5*4D*50L 2.0 5 4 50
2.5*7*4D*50L 2.5 7 4 50
3.0*8*4D*50L 3.0 8 4 50
3.5*10*4D*50L 3.5 10 4 50
4.0*10*4D*50L 4 10 4 50
4.5*11*6D*50L 4.5 11 6 50
5.0*13*6D*50L 5.0 13 6 50
5.5*13*6D*50L 5.5 13 6 50
6.0*15*6D*50L 6.0 15 6 50
6.5*15*8D*60L 6.5 15 8 60
7.0*17*8D*60L 7.0 17 8 60
7.5*17*8D*60L 7.5 17 8 60
8.0*20*8D*60L 8.0 20 8 60
8.5*25*10D*75L 8.5 25 10 75
9.0*25*10D*75L 9.0 25 10 75
9.5*25*10D*75L 9.5 25 10 75
10.0*25*12D*75L 10.0 25 12 75
10.5*25*12D*75L 10.5 25 12 75
11.0*28*12D*75L 11.0 28 12 75
11.5*28*12D*75L 11.5 28 12 75
12.0*30*12D*75L 12.0 30 12 75
13.0*33*16D*100L 13.0 33 16 100
14.0*40*16D*100L 14.0 40 16 100
15.0*40*16D*100L 15.0 40 16 100
16.0*40*16D*100L 16.0 40 16 100
17.0*40*20D*100L 17.0 40 20 100
18.0*40*20D*100L 18.0 40 20 100
19.0*40*20D*100L 19.0 40 20 100
20.0*40*20D*100L 20.0 40 20 100
25.0*40*25D*100L 25.0 40 25 100


4 flutes Flat End Mill

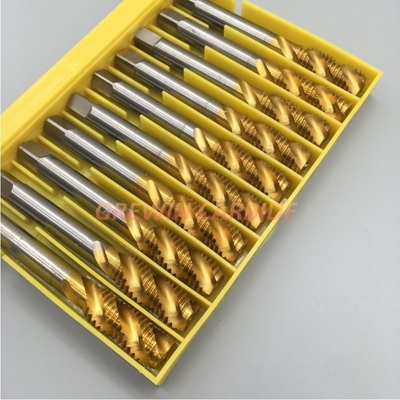

Gold High Speed Steel Tap HSS Spiral Flute Tap Through Blind Hole Tap Machine Tap 3
HRC choice: HRC38-45, HRC45-50, HRC55-58, HRC60-62, HRC65-70
Coating choice: AITiN, AICrSiN, AITiCrSIN, TiSiN, NACO-BLUE
Materials to be cut: original steel, cast iron, Aluminum, copper, graphite, plastics,
Titanium , alloy, harden steel, stainless steel, HSS etc.

Code No.
Diamter
d
Cutting length
l
Total length
L
Shank
D
Flutes
Z
4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4
