CNC Router Carbide Roughing End Mills Long 4 Flutes TiAin Coating
10pcs
MOQ
negotiable
Price
CNC Router Carbide Roughing End Mills Long 4 Flutes TiAin Coating
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

TiAin Carbide Roughing End Mills

,

TiAin Carbide Roughing End Mills

,

4 Flutes CNC Router End Mills

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Specification: SGS
Suitable For: Steel, Mould Steel, Stainless Steel, Aluminium
Processing Precision: 0.02mm
Chemical Composition: 6%-12% Co-Wc
Flute: 3 Flutes For Aluminum
Helix Angel: 35 Degree
Model NO: Roughing End Mill
Product Description



TiAin Solid Carbide Roughing End Mills,standard Long Length, 4 Flutes





Tungsten Carbide 4 Flutes Flat and Square End Mills



Introduction of the carbide materials of the End mill

Carbide Grade Technical Details of tungsten carbide rod
10U Co:10% WC 89% rare element: 1% HRA: 90.5°Grain Size: 0.75um
12U Co:12% WC 85% rare element: 3% HRA: 92.5°Grain Size: 0.4um
K40 Co:12% WC 84% rare element: 4% HRA: 93°Grain Size: 0.4um
K44 Co:12% WC 84% rare element: 4% HRA: 93.5°Grain Size: 0.4um


The materials to be cut

Carbide Grade HRC of End mill Materials to be cut
10U HRC45-50 For cutting the materials under HRC35
12U HRC55-58 For cutting the materials under HRC50
K40 HRC60-62 For cutting the materials under HRC55
K44 HRC65-70 For cutting the materials under HRC63

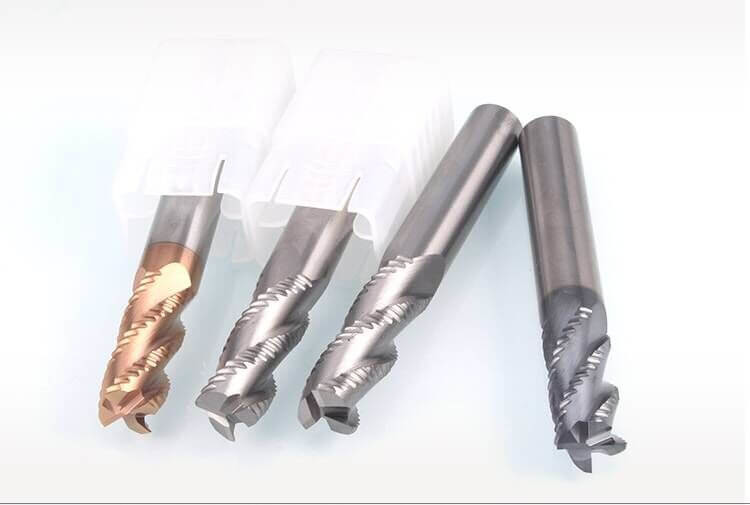

Corresponding Coating

Carbide Grade HRC of End mill Corresponding Coating
10U HRC45-50 AlTiN
12U HRC55-58 TiAlN
K40 HRC60-62 TiSlN
K44 HRC65-70 Nano


Introduction of carbide materials of the End mill

  AlTiN TiAlN TiSlN Nano
Hardness(HV) 3200 2800 3600 42(GPA)
Thickness(UM) 2.5-3 2.5-3 3 3
Oxidation Temp(°) 900 800 1000 1200
Friction Coefficient 0.3 0.3 0.45 0.4
Color Black Violet Copper Blue





Product features

Type: Roughing End Mills

Shank Diameter:1/4" / Cutting Diameter: 1/4"

Flutes length:3/4" / Overall Length: 2"

Work Material Hardness: HRC45 / Helix: 35 / Number of Flute: 4F

Coating: TiAIN / Material: Tungsten carbide / Packaging: Plastic box

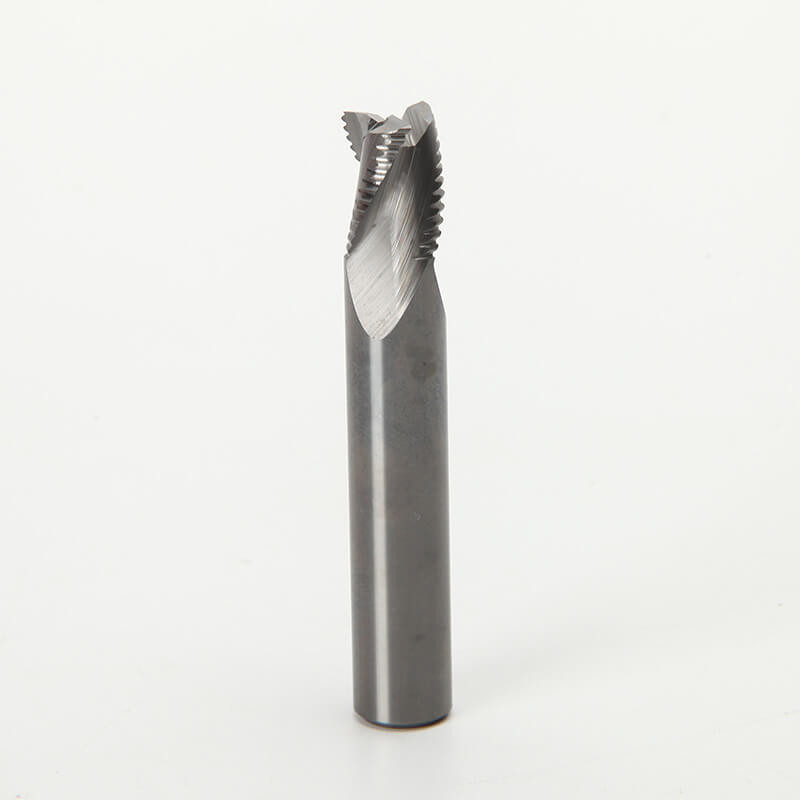

CNC Router Carbide Roughing End Mills Long 4 Flutes TiAin Coating 1

Size sheet for other end mills:



Code No.



Diamter

d

Cutting length

l

Total length

L

Shank

D

Flutes

Z


4GW1-01003050 1 3 50 4 4
4GW1-01504050 1.5 4 50 4 4
4GW1-02050500 2 5 50 4 4
4GW1-02507050 2.5 7 50 4 4
4GW1-03008050 3 8 50 4 4
4GW1-04010050 4 10 50 4 4
4GW1-04015075 4 15 75 4 4
4GW1-04020100 4 20 100 4 4
4GW1-05013050 5 13 50 6 4
4GW1-06015050 6 15 50 6 4
4GW1-06020075 6 20 75 6 4
4GW1-06030100 6 30 100 6 4
4GW1-06020060 8 20 60 8 4
4GW1-08025075 8 25 75 8 4
4GW1-08035100 8 35 100 8 4
4GW1-010025075 10 25 75 10 4
4GW1-010040100 10 40 100 10 4
4GW1-012030075 12 30 75 12 4
4GW1-012040100 12 40 100 12 4
4GW1-014030080 14 30 80 14 4
4GW1-014100100 14 40 100 14 4
4GW1-016040100 16 40 100 16 4
4GW1-018040100 18 40 100 18 4
4GW1-020040100 20 40 100 20 4
4GW1-06040150 6 40 150 6 4
4GW1-08050150 8 50 150 8 4
4GW1-010050150 10 50 150 10 4
4GW1-012050150 12 50 150 12 4
4GW1-014060150 14 60 150 14 4
4GW1-016060150 16 60 150 16 4
4GW1-018060150 18 60 150 18 4
4GW1-020060150 20 60 150 20 4

Advanced automatic CNC grinding machine and testing equipment, such as
We established the fabrication facilities by " WALTER" CNC Grinding Machines which supports us serve for more precision product to customers.
Imported 16 sets 5-AXIS CNC machine :
2 sets "Walter HP" from Germany, specializing in manufacture large diameter tools;
1 set "Walter Micro"from Germany,specializing in manufacture Micro diameter tools;
2 sets Schutte Wu 305 Linear from German;
2 sest Star PTG6 from USA;
2 set "Rollomatic GrindSmart628XS" high precision grinding machine from Switzerland;
1 set Rollomatic NP5 from Switzerland.

1 set URMA digiset 3 tool measuring equipment from Switzerland;
2 sets PG 1000 tool measuring equipment testing the point of drill bit from USA;
1 set Mitutoyo Laser Scan Micrometer Equipment.
