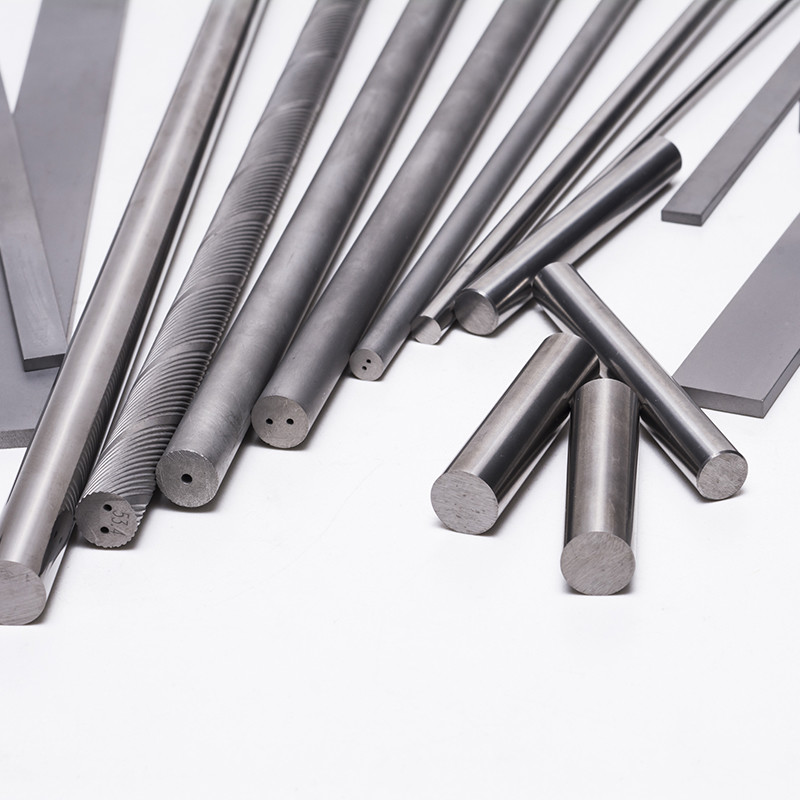

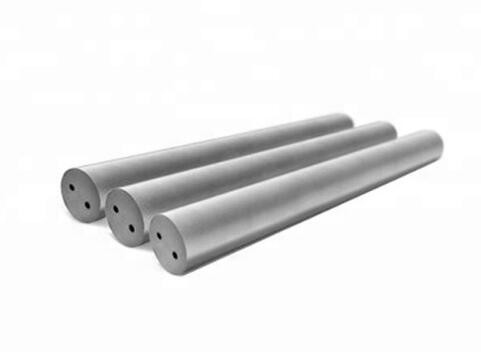

Ground and Unground Cemented carbide Rods With Two Straight Coolant Holes
Grade
| Grade | ISO range | Cobalt % | Density g/cm3 |
Hardness HRA |
TRS N/mm2 |
| YG8 | K30 | 8 | 14.80 | 89.5 | 2200 |
| YG6 | K20 | 6 | 14.95 | 90.5 | 1900 |
| YG6X | K10 | 6 | 14.95 | 91.5 | 1800 |
| YL10.2 | K30 | 10 | 14.50 | 91.8 | 2400 |
| YG13X | K30-K40 | 13 | 14.30 | 89.5 | 2600 |
| YG15 | K40 | 15 | 14.00 | 87.5 | 2800 |
Size
| Unground |
Ground h6 |
TK |
Tol. |
d |
Tol. |
L |
a |
|
|
D |
Tol. |
|||||||
| 6.3 |
+0.3/0 |
6.0 | 1.5 | 0/-0.20 | 0.80 |
±0.15 |
330 |
0.15 |
| 7.3 | 7.0 | 1.5 | 0.80 | 0.15 | ||||
| 8.3 | 8.0 | 2.6 |
0/-0.30 |
1.00 | 0.15 | |||
| 9.3 | 9.0 | 2.6 | 1.00 | 0.20 | ||||
| 10.3 | 10.0 | 2.6 | 1.00 | 0.20 | ||||
| 11.3 |
+0.4/0 |
11.0 | 3.5 | 1.20 | 0.28 | |||
| 12.3 | 12.0 | 3.5 | 1.20 | 0.30 | ||||
| 13.3 | 13.0 | 3.5 | 1.20 | 0.34 | ||||
| 14.3 | 14.0 | 5.0 | 1.50 | 0.37 | ||||
| 15.3 | 15.0 | 5.0 | 1.50 | 0.40 | ||||
| 16.3 | 16.0 | 5.0 | 1.50 |
±0.20 |
0.40 | |||
| 17.3 |
+0.5/0 |
17.0 | 6.2 | 2.00 | 0.47 | |||
| 18.3 | 18.0 | 6.2 | 2.00 | 0.50 | ||||
| 19.3 | 19.0 | 6.2 | 2.00 | 0.50 | ||||
| 20.3 | 20.0 | 6.2 | 0/-0.40 | 2.00 | ±0.30 | 0.50 | ||
