Bright Surface Solid Drill Carbide Customized For 3D General High Speed Cutting

2pc
MOQ
10—416 USD
Price
Bright Surface Solid Drill Carbide Customized For 3D General High Speed Cutting
Features Gallery Product Description Chat Now
Features
Specifications
Usage: General High Speed Cutting
Helix Angle: 30 Degrees
Surface Finish: Bright
Customize: Available
Suitable For Materials: P 、M 、K 、S
Flute Type: Straight
Precision: High Precision
Shank: Round Shank
Highlight:

Bright Surface Solid Drill Carbide

,

Bright Surface carbide stub drills

,

Customized Solid Drill Carbide
Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Model Number: SP-N80103
Payment & Shipping Terms
Delivery Time: 7-10 days
Supply Ability: 1000000 Piece/Pieces per Month
Product Description

Product Description:

A high-performance 3 × D solid carbide drill designed for high-speed machining of aluminum, steels, stainless steels, and alloys. Equipped with internal coolant channels, this drill delivers coolant directly to the cutting edges for efficient heat dissipation and chip evacuation. Optimized flute geometry and sharp cutting edges ensure superior hole quality and extended tool life even under demanding high-speed conditions.

Key Features

  1. 3 × D Drilling Depth

    • Suitable for medium-depth precision holes, ensuring stability and hole accuracy.

  2. Solid Carbide Construction

    • High rigidity, excellent wear resistance, and long tool life.

  3. Internal Cooling Channels

    • Delivers high-pressure coolant directly to the cutting edges for improved cooling and chip evacuation.

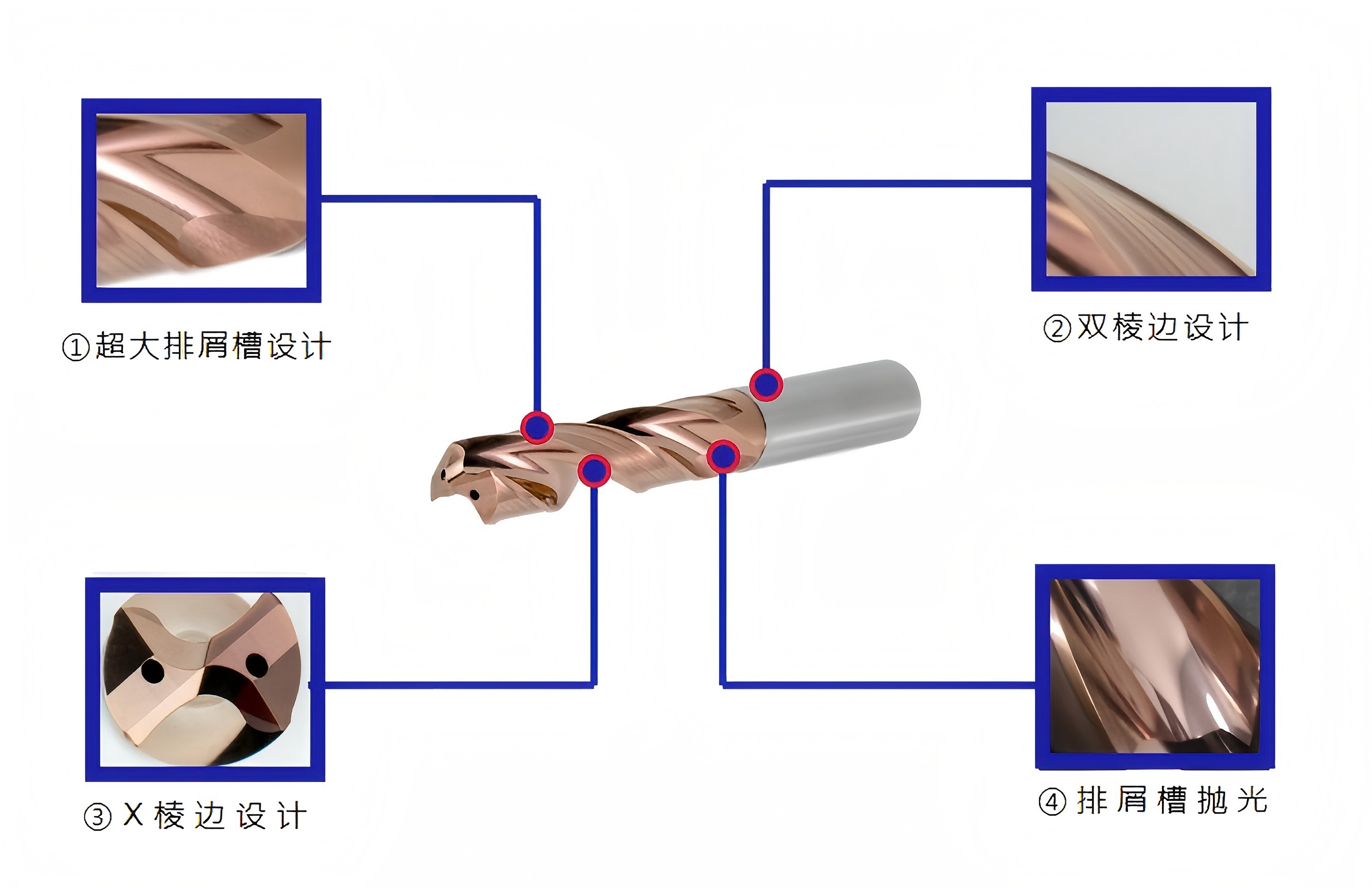

  4. Optimized Flute Geometry and Cutting Edges

    • Smooth chip evacuation, reduces built-up edge, and improves hole surface finish.

  5. High-Speed Cutting Capability

    • Ideal for CNC high-speed machining of aluminum, steel, stainless steel, and alloys.

  6. Superior Hole Quality

    • Sharp point and optimized geometry ensure high precision and excellent surface finish.



Technical Parameters:

Bright Surface Solid Drill Carbide Customized For 3D General High Speed Cutting 0

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
3 20 4 36 62 300

3.1 20 4 36 62 310

3.2 20 4 36 62 320

3.3 20 4 36 62 330 M4x0.7
3.4 20 4 36 62 340 NO.8-32UNC
3.5 20 4 36 62 350 M4x0.5 N0.8-36UNF
3.6 20 4 36 62 360

3.7 20 4 36 62 370
M4×0.7
3.8 24 4 36 66 380
M4x0.5
3.9 24 4 36 66 390 N0.10-24UNC
4 24 4 36 66 400

4.1 24 6 36 66 410 N0.10-32UNF
4.2 24 6 36 66 420 M5×0.8
4.3 24 6 36 66 430

4.4 24 6 36 66 440

4.5 24 6 36 66 450 M4x0.5 NO.12-24UNC
4.6 24 6 36 66 460 N0.12-28UNF M5x0.8
4.7 24 6 36 66 470 N0.12-32UNEF
4.8 28 6 36 66 480

4.9 28 6 36 66 490

5 28 6 36 66 500 M6x1
5.1 28 6 36 66 510 1/4-20UNC
5.2 28 6 36 66 520

5.3 28 6 36 66 530 M6x0.75
5.4 28 6 36 66 540

5.5 28 6 36 66 550 1/4-28UNF M6x1
5.6 28 6 36 66 560 1/4-32UNEF
5.7 28 6 36 66 570

5.8 28 6 36 66 580

5.9 28 6 36 66 590

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
6 28 6 36 66 600

6.1 34 8 36 79 610

6.2 34 8 36 79 620

6.3 34 8 36 79 630

6.4 34 8 36 79 640

6.5 34 8 36 79 650

6.6 34 8 36 79 660 5/16-18UNC
6.7 34 8 36 79 670

6.8 34 8 36 79 680 M8x1.25
6.9 34 8 36 79 690 5/16-24UNF
7 34 8 36 79 700 M8x1
7.1 41 8 36 79 710 5/16-32UNEF
7.2 41 8 36 79 720

7.3 41 8 36 79 730 M8x0.75
7.4 41 8 36 79 740
M8x1.25
7.5 41 8 36 79 750

7.6 41 8 36 79 760

7.7 41 8 36 79 770

7.8 41 8 36 79 780

7.9 41 8 36 79 790

8 41 8 36 79 800 3/8-16UNC
8.1 47 10 40 89 810

8.2 47 10 40 89 820

8.3 47 10 40 89 830

8.4 47 10 40 89 840

8.5 47 10 40 89 850 M10x1.53/8-24UNF
8.6 47 10 40 89 860

8.7 47 10 40 89 870 3/8-32UNEF
8.8 47 10 40 89 880 M10×1.25
8.9 47 10 40 89 890

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
9 47 10 40 89 900 M10x1
9.1 47 10 40 89 910

9.2 47 10 40 89 920

9.3 47 10 40 89 930 M10x0.75 M10x1.5
9.4 47 10 40 89 940 7/16-14UNC
9.5 47 10 40 89 950

9.6 47 10 40 89 960

9.7 47 10 40 89 970

9.8 47 10 40 89 980

9.9 47 10 40 89 990 7/16-20UNF
10 47 10 40 89 1000

10.1 55 12 45 102 1010

10.2 55 12 45 102 1020 7/16-28UNEF
10.3 55 12 45 102 1030 M12x1.75
10.4 55 12 45 102 1040

10.5 55 12 45 102 1050

10.6 55 12 45 102 1060

10.7 55 12 45 102 1070

10.8 55 12 45 102 1080

10.9 55 12 45 102 1090 1/2-13UNC
11 55 12 45 102 1100 M12x1
11.1 55 12 45 102 1110

11.2 55 12 45 102 1120
M12x1.75
11.3 55 12 45 102 1130

11.4 55 12 45 102 1140

11.5 55 12 45 102 1150 1/2-20UNF
11.6 55 12 45 102 1160

11.7 55 12 45 102 1170

11.8 55 12 45 102 1180 1/2-28UNEF
11.9 55 12 45 102 1190

 Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
12 55 12 45 102 1200 M14×2
12.1 60 14 45 107 1210

12.2 60 14 45 107 1220 9/16-12UNC
12.3 60 14 45 107 1230

12.4 60 14 45 107 1240

12.5 60 14 45 107 1250 M14x1.5
12.6 60 14 45 107 1260

12.7 60 14 45 107 1270

12.8 60 14 45 107 1280

12.9 60 14 45 107 1290 9/16-18UNF
13 60 14 45 107 1300 M14x1 M14×2
13.1 60 14 45 107 1310

13.2 60 14 45 107 1320 9/16-24UNEF
13.3 60 14 45 107 1330

13.4 60 14 45 107 1340

13.5 60 14 45 107 1350

13.6 60 14 45 107 1360 5/8-11UNC
13.7 60 14 45 107 1370

13.8 60 14 45 107 1380

13.9 60 14 45 107 1390

14 60 14 45 107 1400 M16x2
14.1 65 16 48 115 1410

14.2 65 16 48 115 1420

14.3 65 16 48 115 1430

14.4 65 16 48 115 1440

14.5 65 16 48 115 1450 M16x1.55/8-18UNF
14.6 65 16 48 115 1460

14.7 65 16 48 115 1470

14.8 65 16 48 115 1480 5/8-24UNEF
14.9 65 16 48 115 1490

Order code
φ ·dc If ds ls lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
15 65 16 48 115 1500 M16x1 M16x2
15.1 65 16 48 115 1510

15.2 65 16 48 115 1520

15.3 65 16 48 115 1530

15.4 65 16 48 115 1540

15.5 65 16 48 115 1550 M18x2.5
15.6 65 16 48 115 1560

15.7 65 16 48 115 1570

15.8 65 16 48 115 1580

15.9 65 16 48 115 1590

16 65 16 48 115 1600 M18×2
16.1 73 18 48 123 1610

16.2 73 18 48 123 1620

16.3 73 18 48 123 1630

16.4 73 18 48 123 1640

16.5 73 18 48 123 1650

16.6 73 18 48 123 1660 3/4-10UNC
16.7 73 18 48 123 1670

16.8 73 18 48 123 1680

16.9 73 18 48 123 1690

17 73 18 48 123 1700 M18x1
17.1 73 18 48 123 1710

17.2 73 18 48 123 1720

17.3 73 18 48 123 1730

17.4 73 18 48 123 1740

17.5 73 18 48 123 1750 M20x2.53/4-16UNF
17.6 73 18 48 123 1760

17.7 73 18 48 123 1770

17.8 73 18 48 123 1780 3/4-20UNEF
17.9 73 18 48 123 1790

Order code
φ ·dc If ds Is lo
Recommended Tap



m7 h6 Dimension Code Cutting Tap Forming Tap
18 73 18 48 123 1800 M20x2
18.1 79 20 50 131 1810

18.2 79 20 50 131 1820

18.3 79 20 50 131 1830

18.4 79 20 50 131 1840

18.5 79 20 50 131 1850 M20x1.5
18.6 79 20 50 131 1860

18.7 79 20 50 131 1870

18.8 79 20 50 131 1880

18.9 79 20 50 131 1890

19 79 20 50 131 1900 M20x1
19.1 79 20 50 131 1910

19.2 79 20 50 131 1920

19.3 79 20 50 131 1930

19.4 79 20 50 131 1940

19.5 79 20 50 131 1950

19.6 79 20 50 131 1960 7/8-9UNC
19.7 79 20 50 131 1970

19.8 79 20 50 131 1980

19.9 79 20 50 131 1990

20 79 20 50 131 2000 M22x2


Applications:

  • Aerospace and automotive components requiring medium-depth holes.

  • Mold and die work for cooling channels and through-holes.

  • General mechanical parts with medium-depth mounting, lubrication, or cooling holes.
