Fast Carbide Dagger Drill 3D Stainless Steel Dedicated With Smooth Surface

2pc
MOQ
10—416 USD
Price
Fast Carbide Dagger Drill 3D Stainless Steel Dedicated With Smooth Surface
Features Gallery Product Description Chat Now
Features
Specifications
Surface Finish: Bright
Usage: General High Speed Cutting
Shank Type: Cylindrical
Precision: High Precision
Helix Angle: 30 Degrees
Flute Type: Straight
Application: Metal Drilling
Highlight:

Stainless Steel Carbide Dagger Drill

,

Stainless Steel carbide twist drills

,

Smooth Surface Carbide Dagger Drill
Basic Infomation
Place of Origin: China
Brand Name: ARNOLD
Certification: ISO9001:2000
Model Number: SP-N80005
Payment & Shipping Terms
Delivery Time: 7-10 days
Supply Ability: 1000000 Piece/Pieces per Month
Product Description

Product Description:

This drill is specially designed for stainless steel and other hard-to-machine materials. Made from premium solid carbide, it features reinforced cutting edges and optimized flute geometry to reduce cutting forces and ensure stable tool life, even when machining tough, low-thermal-conductivity stainless steels.



Features:

  • 3 × D drilling depth → suitable for medium-depth holes with high precision.

  • Solid carbide construction → excellent strength, wear resistance, and extended tool life.

  • Special point angle (typically 140°) → ensures accurate centering and reduces thrust force.

  • Reinforced cutting edges → prevent chipping and provide stable stainless steel machining.

  • Optimized flute design → improves chip evacuation and reduces adhesion in sticky stainless steels.

  • Optional internal coolant channels → high-pressure coolant directly to the cutting edge for better cooling and chip removal.

  • Heat-resistant coating (TiAlN / AlTiN) → enhances wear resistance and minimizes built-up edge at high temperatures.



Technical Parameters:

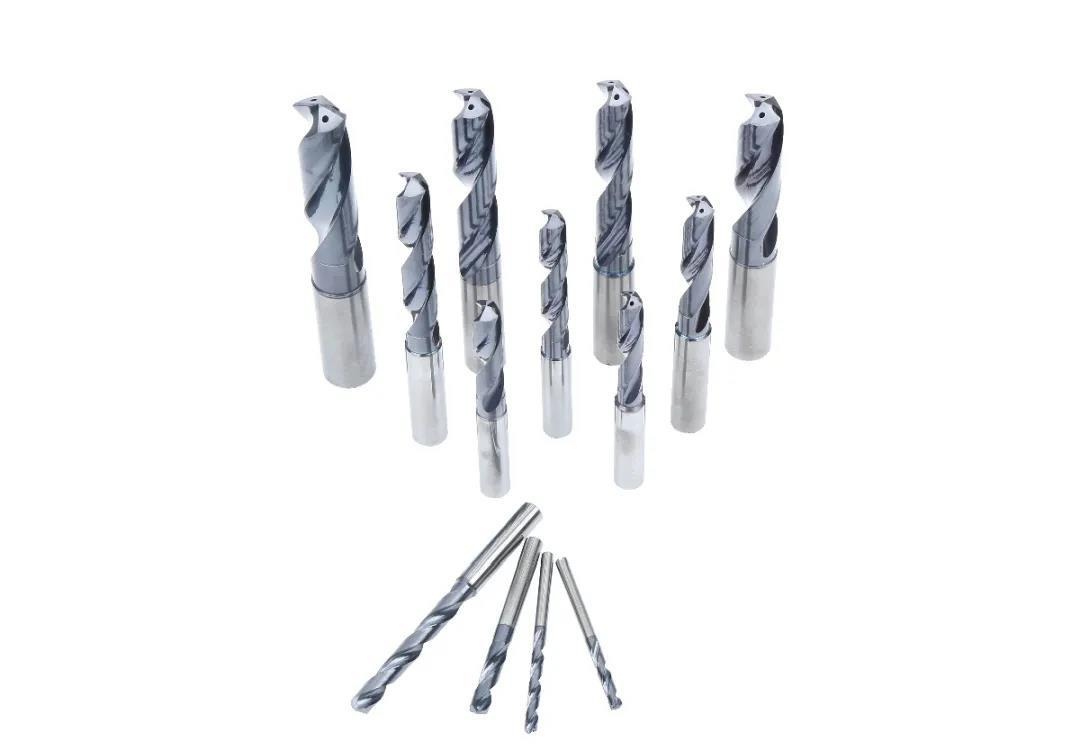

Fast Carbide Dagger Drill 3D Stainless Steel Dedicated With Smooth Surface 0



订货编号 ·Order code
φ ·dc If ds ls lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
3 20 4 36 62 300
3.1 20 4 36 62 310
3.2 20 4 36 62 320
3.3 20 4 36 62 330 M4x0.7
3.4 20 4 36 62 340 NO.8-32UNC
3.5 20 4 36 62 350 M4x0.5 N0.8-36UNF
3.6 20 4 36 62 360
3.7 20 4 36 62 370   M4×0.7
3.8 24 4 36 66 380   M4x0.5
3.9 24 4 36 66 390 N0.10-24UNC
4 24 4 36 66 400
4.1 24 6 36 66 410 N0.10-32UNF
4.2 24 6 36 66 420 M5×0.8
4.3 24 6 36 66 430
4.4 24 6 36 66 440
4.5 24 6 36 66 450 M4x0.5 NO.12-24UNC
4.6 24 6 36 66 460 N0.12-28UNF M5x0.8
4.7 24 6 36 66 470 N0.12-32UNEF
4.8 28 6 36 66 480
4.9 28 6 36 66 490
5 28 6 36 66 500 M6x1
5.1 28 6 36 66 510 1/4-20UNC
5.2 28 6 36 66 520
5.3 28 6 36 66 530 M6x0.75
5.4 28 6 36 66 540
5.5 28 6 36 66 550 1/4-28UNF M6x1
5.6 28 6 36 66 560 1/4-32UNEF
5.7 28 6 36 66 570
5.8 28 6 36 66 580
5.9 28 6 36 66 590
订货编号 ·Order code
φ ·dc If ds Is lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
6 28 6 36 66 600
6.1 34 8 36 79 610
6.2 34 8 36 79 620
6.3 34 8 36 79 630
6.4 34 8 36 79 640
6.5 34 8 36 79 650
6.6 34 8 36 79 660 5/16-18UNC
6.7 34 8 36 79 670
6.8 34 8 36 79 680 M8x1.25
6.9 34 8 36 79 690 5/16-24UNF
7 34 8 36 79 700 M8x1
7.1 41 8 36 79 710 5/16-32UNEF
7.2 41 8 36 79 720
7.3 41 8 36 79 730 M8x0.75
7.4 41 8 36 79 740   M8x1.25
7.5 41 8 36 79 750
7.6 41 8 36 79 760
7.7 41 8 36 79 770
7.8 41 8 36 79 780
7.9 41 8 36 79 790
8 41 8 36 79 800 3/8-16UNC
8.1 47 10 40 89 810
8.2 47 10 40 89 820
8.3 47 10 40 89 830
8.4 47 10 40 89 840
8.5 47 10 40 89 850 M10x1.53/8-24UNF
8.6 47 10 40 89 860
8.7 47 10 40 89 870 3/8-32UNEF
8.8 47 10 40 89 880 M10×1.25
8.9 47 10 40 89 890
订货编号 ·Order code
φ ·dc If ds ls lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
9 47 10 40 89 900 M10x1
9.1 47 10 40 89 910
9.2 47 10 40 89 920
9.3 47 10 40 89 930 M10x0.75 M10x1.5
9.4 47 10 40 89 940 7/16-14UNC
9.5 47 10 40 89 950
9.6 47 10 40 89 960
9.7 47 10 40 89 970
9.8 47 10 40 89 980
9.9 47 10 40 89 990 7/16-20UNF
10 47 10 40 89 1000
10.1 55 12 45 102 1010
10.2 55 12 45 102 1020 7/16-28UNEF
10.3 55 12 45 102 1030 M12x1.75
10.4 55 12 45 102 1040
10.5 55 12 45 102 1050
10.6 55 12 45 102 1060
10.7 55 12 45 102 1070
10.8 55 12 45 102 1080
10.9 55 12 45 102 1090 1/2-13UNC
11 55 12 45 102 1100 M12x1
11.1 55 12 45 102 1110
11.2 55 12 45 102 1120   M12x1.75
11.3 55 12 45 102 1130
11.4 55 12 45 102 1140
11.5 55 12 45 102 1150 1/2-20UNF
11.6 55 12 45 102 1160
11.7 55 12 45 102 1170
11.8 55 12 45 102 1180 1/2-28UNEF
11.9 55 12 45 102 1190
订货编号 ·Order code
φ ·dc If ds Is lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
12 55 12 45 102 1200 M14×2
12.1 60 14 45 107 1210
12.2 60 14 45 107 1220 9/16-12UNC
12.3 60 14 45 107 1230
12.4 60 14 45 107 1240
12.5 60 14 45 107 1250 M14x1.5
12.6 60 14 45 107 1260
12.7 60 14 45 107 1270
12.8 60 14 45 107 1280
12.9 60 14 45 107 1290 9/16-18UNF
13 60 14 45 107 1300 M14x1 M14×2
13.1 60 14 45 107 1310
13.2 60 14 45 107 1320 9/16-24UNEF
13.3 60 14 45 107 1330
13.4 60 14 45 107 1340
13.5 60 14 45 107 1350
13.6 60 14 45 107 1360 5/8-11UNC
13.7 60 14 45 107 1370
13.8 60 14 45 107 1380
13.9 60 14 45 107 1390
14 60 14 45 107 1400 M16x2
14.1 65 16 48 115 1410
14.2 65 16 48 115 1420
14.3 65 16 48 115 1430
14.4 65 16 48 115 1440
14.5 65 16 48 115 1450 M16x1.55/8-18UNF
14.6 65 16 48 115 1460
14.7 65 16 48 115 1470
14.8 65 16 48 115 1480 5/8-24UNEF
14.9 65 16 48 115 1490
订货编号 ·Order code
φ ·dc If ds ls lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
15 65 16 48 115 1500 M16x1 M16x2
15.1 65 16 48 115 1510
15.2 65 16 48 115 1520
15.3 65 16 48 115 1530
15.4 65 16 48 115 1540
15.5 65 16 48 115 1550 M18x2.5
15.6 65 16 48 115 1560
15.7 65 16 48 115 1570
15.8 65 16 48 115 1580
15.9 65 16 48 115 1590
16 65 16 48 115 1600 M18×2
16.1 73 18 48 123 1610
16.2 73 18 48 123 1620
16.3 73 18 48 123 1630
16.4 73 18 48 123 1640
16.5 73 18 48 123 1650
16.6 73 18 48 123 1660 3/4-10UNC
16.7 73 18 48 123 1670
16.8 73 18 48 123 1680
16.9 73 18 48 123 1690
17 73 18 48 123 1700 M18x1
17.1 73 18 48 123 1710
17.2 73 18 48 123 1720
17.3 73 18 48 123 1730
17.4 73 18 48 123 1740
17.5 73 18 48 123 1750 M20x2.53/4-16UNF
17.6 73 18 48 123 1760
17.7 73 18 48 123 1770
17.8 73 18 48 123 1780 3/4-20UNEF
17.9 73 18 48 123 1790
订货编号 ·Order code
φ ·dc If ds Is lo   Recommended Tap

m7 h6 Dimension Code Cutting Tap Forming Tap
18 73 18 48 123 1800 M20x2
18.1 79 20 50 131 1810
18.2 79 20 50 131 1820
18.3 79 20 50 131 1830
18.4 79 20 50 131 1840
18.5 79 20 50 131 1850 M20x1.5
18.6 79 20 50 131 1860
18.7 79 20 50 131 1870
18.8 79 20 50 131 1880
18.9 79 20 50 131 1890
19 79 20 50 131 1900 M20x1
19.1 79 20 50 131 1910
19.2 79 20 50 131 1920
19.3 79 20 50 131 1930
19.4 79 20 50 131 1940
19.5 79 20 50 131 1950
19.6 79 20 50 131 1960 7/8-9UNC
19.7 79 20 50 131 1970
19.8 79 20 50 131 1980
19.9 79 20 50 131 1990
20 79 20 50 131 2000 M22x2



Applications:



  • Precision hole machining in stainless steel structural parts.

  • Stainless steel components in oil & gas and chemical equipment.

  • Food processing machinery and medical device stainless parts.

  • Automotive and aerospace stainless steel fasteners, housings, and brackets.
