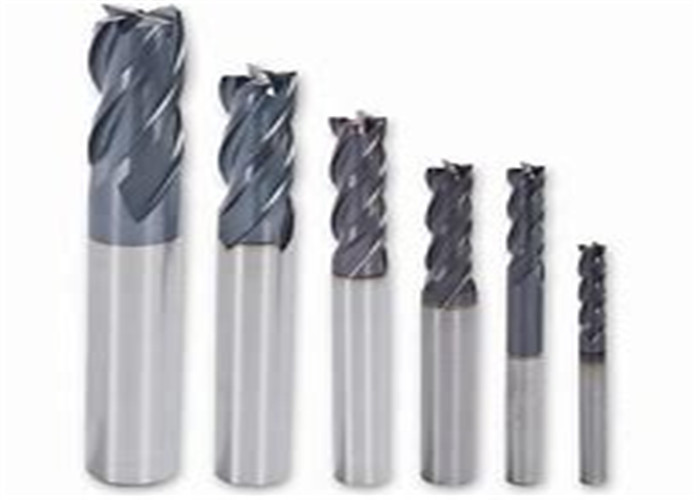

CNC HRC45-50 Solid Carbide End Mills For Aluminum , Steel , Cast Iron
10pcs
MOQ
negotiable
Price
CNC HRC45-50 Solid Carbide End Mills For Aluminum , Steel , Cast Iron
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

square end mill cutter

,

square end drill bit

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Payment Terms: T/T, PAYPAL, WESTERN UNION
Supply Ability: 50000pcs/Month
Specifications
Cutting Form: Flat, Ball Nose, Corner Radius, Aluminum Etc
HRC To Cut: 45,50,60,68
Cutting Style: Side-side,profile Side, Profile Slot
Coating Layers: AlTiN,TiAlN,TiSIN,Nano Etc
NO Of Flutes: 1,2,3,4,5,6 Etc
Shank Type: Straight Shank,Groove Shank
Samples: Free
Characteristics: High Precision, High Hardness Etc
Product Description



CNC HRC45-50 Solid Carbide End Mills For Aluminum , Steel , Cast Iron

1. Why choose Grewin Tungsten Carbide?
Zhuzhou Grewin Tungsten Carbide Tools Co., Ltd is located in hometown of Chinese carbide industry - Zhuzhou city. The company has more than 20 years' experience in manufacture, design and sale of various kinds of carbide products, main products include: Carbide end mills, carbide rods, indexable inserts, brazed inserts, wire drawing dies, forging dies, wood working tools, saw tips, mining buttons, etc
The company has passed ISO 9001: 2008 quality system, possesses advanced production equipments, complete testing instruments, strong R&D center and QC teams.
With excellent quality, strong technical support, and good after sales service, Grewin Carbide brand products are sold to more than 50 countries in the world, such as Europe, USA, south east Asia, Middle East, south America, etc.
The company is dedicated to " WE GROW, WE WIN". Grewin Carbide is growing up with the World's carbide technology, to meet the demand of our customers from all over the world.
2. Standard Sizes


Order No.Flute dia (d)Cutting length ( l )Shank dia (D)Overall length(L)
1.0×2.5×4D×50L1.02.5450
1.5×4×4D×50L1.54450
2.0×5×4D×50L2.05450
2.5×7×4D×50L2.57450
3.0×8×4D×50L3.08450
3.5×10×4D×50L3.510450
4.0×10×4D×50L410450
4.5×11×6D×50L4.511650
5.0×13×6D×50L5.013650
5.5×13×6D×50L5.513650
6.0×15×6D×50L6.015650
6.5×15×8D×60L6.515860
7.0×17×8D×60L7.017860
7.5×17×8D×60L7.517860
8.0×20×8D×60L8.020860
8.5×25×10D×75L8.5251075
9.0×25×10D×75L9.0251075
9.5×25×10D×75L9.5251075
10.0×25×12D×75L10.0251275
10.5×25×12D×75L10.5251275
11.0×28×12D×75L11.0281275
11.5×28×12D×75L11.5281275
12.0×30×12D×75L12.0301275
13.0×33×16D×100L13.03316100
14.0×40×16D×100L14.04016100
15.0×40×16D×100L15.04016100
16.0×40×16D×100L16.04016100
17.0×40×20D×100L17.04020100
18.0×40×20D×100L18.04020100
19.0×40×20D×100L19.04020100
20.0×40×20D×100L20.04020100
25.0×40×25D×100L25.04025100


3. Strict quality checking
(1) Check each piece. Guarantee the tolerance -0.02mm
(2) Exact helix angle and finished surface
(3) Goods pass SGS and ISO9001
4.Machining Operation of Tungsten Carbide Solid Endmill cutter bits

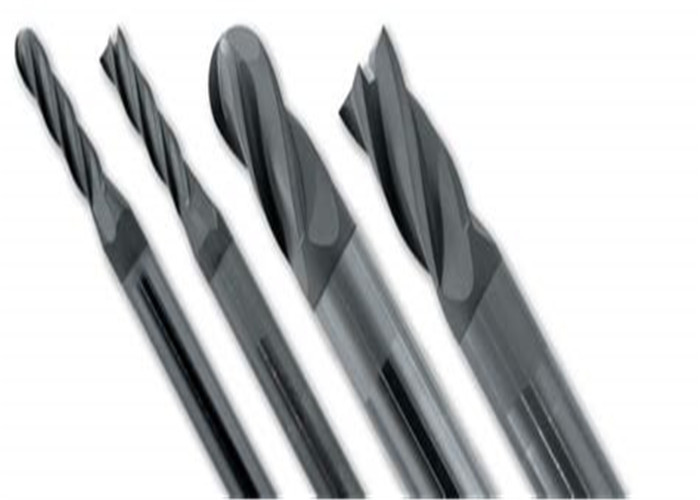

Ball nose end millsprofile machiningprofile machiningslot machiningdeep slot machining
R end millsside machiningslot machiningprofile machining
Flattened end millsside machiningshoulder machiningstraight slot machiningdeep slot machining


5. Payment
T/T, Western Union, Paypal (Choose your convenient way)

6. Application and usage
(1) Suitable for Copper, Cast Iron, Carbon steel, Tool steel, Mould steel, Die steel, Stainless steel, Plastic, Arcylic, etc.
(2) Applicated for aerospace, transportation, Medical equipment, Military manufacturing, Mould development, Apparatus and instrument, etc.
7. Shipment
FedEx, TNT, DHL, UPS, EMS, etc.
The port is Beijing, Shanghai, Guangzhou, Shenzhen, any port in China. (choose your convenient way)
8..Our Advantages
More than 2000 products are available. Assembly line production, high standard and strict requirements.
OEM Services Offered
Customized Tools Offered
Free laser marking on tools and boxes Offered
Fast delivery time and Convenient Transportations. We have discount on shipping cost from our courier companies, such as FedEx, DHL, TNT, UPS etc.
