YG10X / YG6X / YG15 / YU06 Cemented Carbide Rods Double Helical Hole Carbide Drill Rod
YG10X / YG6X / YG15 / YU06 Cemented Carbide Rods Double Helical Hole Carbide Drill Rod
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Zhuzhou--Carbide City
Brand Name: Whitout Brand
Certification: ISO9001, SGS
Model Number: As your requirements
High Light:

tungsten metal rod


tungsten alloy rod

Payment & Shipping Terms
Packaging Details: 1PCS in a plastic tube, 10 PCS per group
Delivery Time: 15-25 work days
Supply Ability: 50000pcs/Month
Surface: Polish Or Unpolish, Grinding Or Ungrinding
Application: Widely Used In End Mills, Drills, Micro- Drills, Micro-mills Etc
Grade: YU06, UG6X, YL10.2, JT401, YG15
Material: 100% Raw Material
Sizes: D1-30X330mm Or Customized
Quality: Hip-Sintered, Micro Grain
Precision: High Precision
Delivery Time: 15-20 Work Days
Product Description



Product size:


1. The round rod is formed by die pressing and extruder pressing.


2. Cemented carbide rods are sintered in vacuum furnace or high-pressure sintering furnace with high overall performance and no porosity.


3. Rough rods, or grinding and polishing rod outer diameter according to any tolerance, common tolerances are H6, H7, h6, h7, -0.005, etc., can also be added.


The chamfering of the end face of the round bar.


4. Cemented carbide bars are suitable for the processing of plain steel, cast iron, stainless steel, heat-resistant steel, nickel-based and titanium alloys. Recommended for twist drills,General tool materials such as end milling cutters and taps.


5. Rods with diameters ranging from 0.3 mm to 40 mm and lengths less than 400 mm can be supplied. We can also provide products according to your drawings.

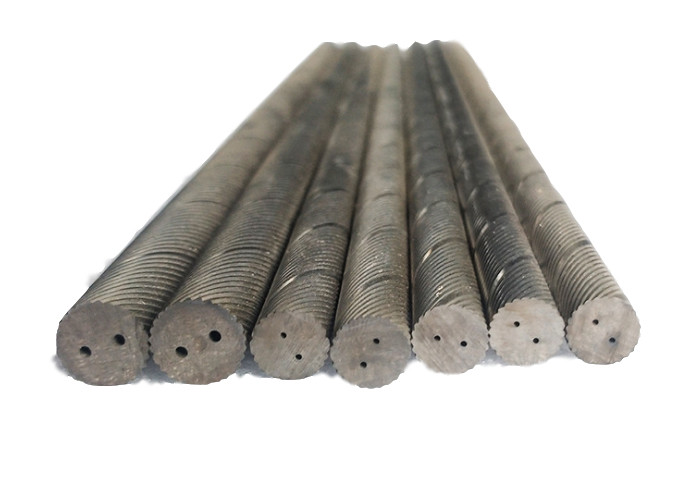

YG10X / YG6X / YG15 / YU06 Cemented Carbide Rods Double Helical Hole Carbide Drill Rod 0

We can process carbide rods, such as grinding and polishing diameter, cutting short length, sharping the end of rod.


Advantage: made from sub-micron and ultra-fine WC with homogeneous property, good wear resistance and high toughness.


Application: widely used in end mills, drills, micro- drills, micro-mills etc.

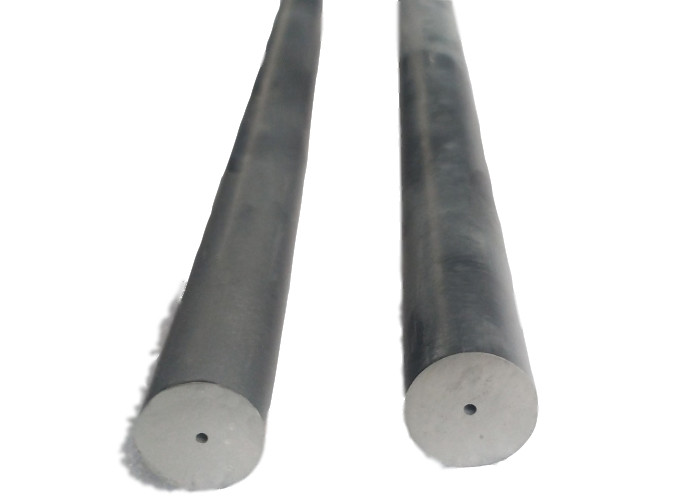

YG10X / YG6X / YG15 / YU06 Cemented Carbide Rods Double Helical Hole Carbide Drill Rod 1


Grade description:


Grade Cobalt content HRA Density T.R.S Grain size(um) Application recommended
YU06 6% 94 14.75 3700 0.4-0.5 Suitable for machining aluminum-magnesium alloys, glass fiber, carbon fiber, wood, harden plastic, etc.
it is recommended for making PCB micro tools and other material drills.
YG6X 6% 92.5 14.92 3000 0.7-0.9 Suitable for machining chilled alloy cast iron, heat-resistane alloy steel, non-ferrous metal, wood, paper, plastic and aluminum-magnesium, etc. it is recommended for making solid carbide drills, milling and reamers.
YL10.2 10% 91.8 14.45 3800 0.7-0.9 Suitable for machining carbon steel, cast iron, stainless steel,
heat-resistance steel nickel based alloy and titanium alloy.
it is recommended for making different specification tools,
such as drills, end mills, rotary burrs, etc, a good material for general-purpose.
JT401 12% 92 14.15 4000 0.5-0.7 Suitable for machining nickel based alloy, titanium alloy,
stainless steel, mould steel, chilled hardened steel and grey cast iron, etc.
it is recommended for making milling tools and remaers, for high speed machining.
YG15 15% 87.6 14 4000 1.2-1.4 Suitable for making solid mould dies
and tools for punching operation.
