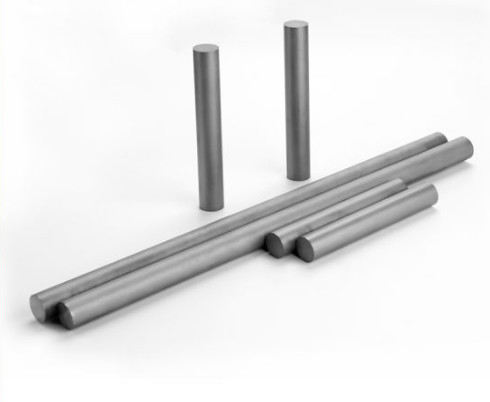

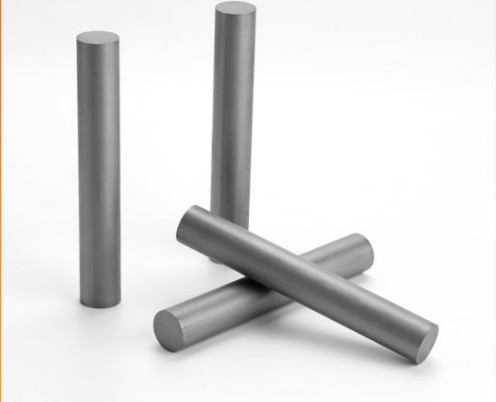

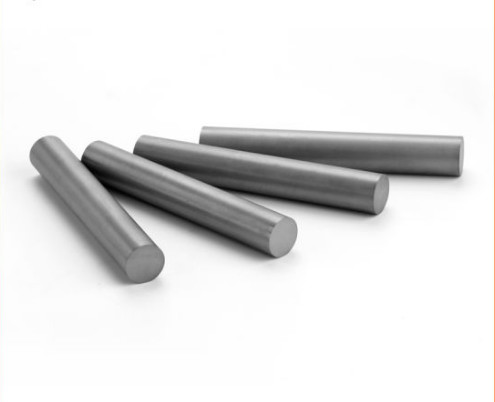

Tungsten carbide rods for End Mills
In order to achieve the best possible performance, it's very important to choose the suitable carbide grade for your application, our experienced engineers can assist you with your design and material selection ensuring the best wear for your particular need.
|
Product Name
|
YG10X Tungsten carbide rods for End Mills
|
|
Material
|
Tungsten Carbide
|
|
Color
|
Grey
|
|
Standard
|
Customrized
|
|
Grade
|
YG8, YG9C, YG10x
|
|
Brade
|
BWCARBIDE
|
|
SIZE
|
Customized
|
|
Used
|
For Endmills burrs drills
|
Solid Rods (Metric) 330mm
| Unground | h6 |
L |
Tol. |
Unground | h6 |
L |
Tol. |
||
| D | Tol. | D | Tol. | ||||||
| Ø2.2 | +0.3/+0 | 2.0 | 330 | +5/+0 | Ø17.2 | +0.3/+0 | 17 | 330 | +5/+0 |
| Ø3.2 | +0.3/+0 | 3.0 | 330 | +5/+0 | Ø18.2 | +0.3/+0 | 18 | 330 | +5/+0 |
| Ø4.2 | +0.3/+0 | 4.0 | 330 | +5/+0 | Ø19.2 | +0.3/+0 | 19 | 330 | +5/+0 |
| Ø5.2 | +0.3/+0 | 5.0 | 330 | +5/+0 | Ø20.2 | +0.3/+0 | 20 | 330 | +5/+0 |
| Ø6.2 | +0.3/+0 | 6.0 | 330 | +5/+0 | Ø21.2 | +0.3/+0 | 21 | 330 | +5/+0 |
| Ø7.2 | +0.3/+0 | 7.0 | 330 | +5/+0 | Ø22.2 | +0.3/+0 | 22 | 330 | +5/+0 |
| Ø8.2 | +0.3/+0 | 8.0 | 330 | +5/+0 | Ø23.2 | +0.3/+0 | 23 | 330 | +5/+0 |
| Ø9.2 | +0.3/+0 | 9.0 | 330 | +5/+0 | Ø24.2 | +0.3/+0 | 24 | 330 | +5/+0 |
| Ø10.2 | +0.3/+0 | 10.0 | 330 | +5/+0 | Ø25.2 | +0.3/+0 | 25 | 330 | +5/+0 |
| Ø11.2 | +0.3/+0 | 11.0 | 330 | +5/+0 | Ø26.2 | +0.3/+0 | 26 | 330 | +5/+0 |
| Ø12.2 | +0.3/+0 | 12.0 | 330 | +5/+0 | Ø27.2 | +0.3/+0 | 27 | 330 | +5/+0 |
| Ø13.2 | +0.3/+0 | 13.0 | 330 | +5/+0 | Ø28.2 | +0.3/+0 | 28 | 330 | +5/+0 |
| Ø14.2 | +0.3/+0 | 14.0 | 330 | +5/+0 | Ø29.2 | +0.3/+0 | 29 | 330 | +5/+0 |
| Ø15.2 | +0.3/+0 | 15.0 | 330 | +5/+0 | Ø30.2 | +0.3/+0 | 30 | 330 | +5/+0 |
| Ø16.2 | +0.3/+0 | 16.0 | 330 | +5/+0 | |||||
Two straight coolant ducts rods, Reduced TK
| Unground | Ground h6 |
TK |
Tol. |
D |
Tol. |
L |
a |
|
D |
Tol. |
|||||||
| 6.3 | +0.3/0 |
6.0 | 1.5 | 0/-0.20 | 0.80 | ±0.15 |
330 |
0.15 |
| 7.3 | 7.0 | 1.5 | 0.80 | 0.15 | ||||
| 8.3 | 8.0 | 2.6 | 0/-0.30 |
1.00 | 0.15 | |||
| 9.3 | 9.0 | 2.6 | 1.00 | 0.20 | ||||
| 10.3 | 10.0 | 2.6 | 1.00 | 0.20 | ||||
| 11.3 | +0.4/0 |
11.0 | 3.5 | 1.20 | 0.28 | |||
| 12.3 | 12.0 | 3.5 | 1.20 | 0.30 | ||||
| 13.3 | 13.0 | 3.5 | 1.20 | 0.34 | ||||
| 14.3 | 14.0 | 5.0 | 1.50 | 0.37 | ||||
| 15.3 | 15.0 | 5.0 | 1.50 | 0.40 | ||||
| 16.3 | 16.0 | 5.0 | 1.50 | ±0.20 |
0.40 | |||
| 17.3 | +0.5/0 |
17.0 | 6.2 | 2.00 | 0.47 | |||
| 18.3 | 18.0 | 6.2 | 2.00 | 0.50 | ||||
| 19.3 | 19.0 | 6.2 | 2.00 | 0.50 | ||||
| 20.3 | 20.0 | 6.2 | 0/-0.40 | 2.00 | ±0.30 | 0.50 | ||
30° Two Helical Coolant Ducts(Type HE-30°)
| Unground | Ground h6 |
L Tol. +5.0 |
TK |
Tol. |
D |
Tol. |
Pitch |
|
| D | Tol. | |||||||
| 6.3 | +0.4/+1.0 |
6.0 | 330 | 2.7 | ±0.2 |
0.80 | ±0.15 |
32.65 |
| 7.3 | 7.0 | 330 | 3.5 | 1.00 | 38.09 | |||
| 8.3 | 8.0 | 330 | 3.4 | 1.00 | 43.53 | |||
| 9.3 | 9.0 | 330 | 4.5 | ±0.3 | 1.40 | 48.97 | ||
| 10.3 | 10.0 | 330 | 4.8 | 1.30 | 54.41 | |||
| 11.3 | +0.4/+1.2 |
11.0 | 330 | 4.9 | ±0.4 |
1.40 | 59.86 | |
| 12.3 | 12.0 | 330 | 6.3 | 1.70 | 65.30 | |||
| 13.3 | 13.0 | 330 | 6.1 | 1.75 | ±0.20 |
70.74 | ||
| 14.3 | 14.0 | 330 | 6.7 | 1.80 | 76.18 | |||
| 15.3 | 15.0 | 330 | 7.3 | 1.75 | 81.82 | |||
| 16.3 | +0.4/+1.4 |
16.0 | 330 | 8.0 | 2.00 | 87.06 | ||
| 17.3 | 17.0 | 330 | 8.5 | 1.75 | ±0.25 |
92.50 | ||
| 18.3 | 18.0 | 330 | 9.0 | 2.30 | 97.95 | |||
| 19.3 | 19.0 | 330 | 9.7 | 2.00 | 103.39 | |||
| 20.3 | 20.0 | 330 | 10.0 | ±0.5 | 2.50 | 108.83 | ||
