Cemented carbide rod has good straightness, excellent hardness, and stable toughness.
Cemented carbide round rods can be used for making the drill bits/ end-mills / reamers; automobile special cutters, printed circuit board special cutters, engine special cutters, horologe processing special cutters, integral vertical milling cutter, graver and etc. Besides, they can be also used for making of cemented carbide stamping head, core bar and perforation tools.
tungsten carbide rods are widely using in cutting tool field, such as endmills, tool holders, special cutters making and so on. we are much professional and experienced in tungsten carbide rods making, we owned high tech equipment in carbide rods making, extusion press line, HIP sinter furnace, imported centerless grinding machines. we manufacture size from diameter of 1.00mm to 32mm, length from 10mm to 1000mm plus, our major grade of carbide rods is 10% cobalt , grain size of 0.6um, hardness with HRA 91.5, with its high hardness and strength, it works very well in cutting field. we supply carbide solid rod and rods with holes as well, sintered and fine grinded all available, our carbide rods exported to America and Europe with very good feedbacks, please contact me for more details!
we can also make to your samples and drawings for none-standsard types.
Material Properties:
Grade | ISO Code |
Chemical Components (%) |
Grain size (um) |
Physial Mechanical Properties (≥) |
||||
WC | Co | Others | Density g/cm3 | Hardness (HRA) | T.R.S N/mm2 | |||
D10UF | K05-K15 | 93 | 6 | 1 | 0.6 | 14.70 | 93.0 | 2600 |
D30UF | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 92.0 | 3800 |
D30SF | K20-K30 | 89 | 10 | 1 | 0.5 | 14.40 | 92.5 | 4000 |
D40SF | K40 | 87 | 12 | 1 | 0.4 | 14.30 | 92.5 | 4200 |
DB10X | K20-K30 | 89 | 10 | 1 | 0.6 | 14.50 | 91.5 | 3800 |
DP12X | K30-K40 | 87 | 12 | 1 | 0.6 | 14.15 | 91.0 | 3300 |
DP13X | K40 | 86 | 13 | 1 | 0.8 | 14.10 | 90.5 | 4400 |
YG6 | K05-K10 | 93 | 6 | 0 | 1.2 | 14.95 | 91.0 | 2600 |
YG6X | K10 | 93 | 6 | 0 | 1.0 | 14.95 | 92.0 | 2500 |
YG8 | K20-K30 | 92 | 8 | 0 | 1.2 | 14.70 | 90.0 | 2800 |
YG10X | K30-K40 | 89 | 10 | 1 | 0.8 | 14.50 | 91.0 | 3500 |
YG15 | K40 | 85 | 15 | 0 | 1.2 | 14.00 | 87.5 | 4500 |
YG25 | -- | 75 | 25 | 0 | 1.2 | 13.15 | 82.5 | 4800 |

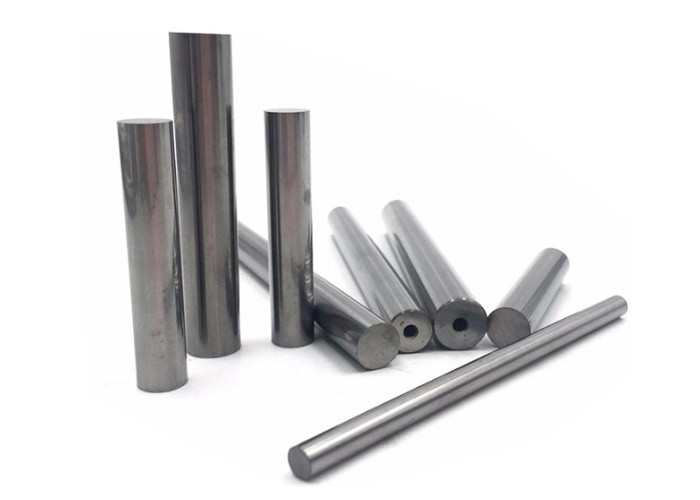

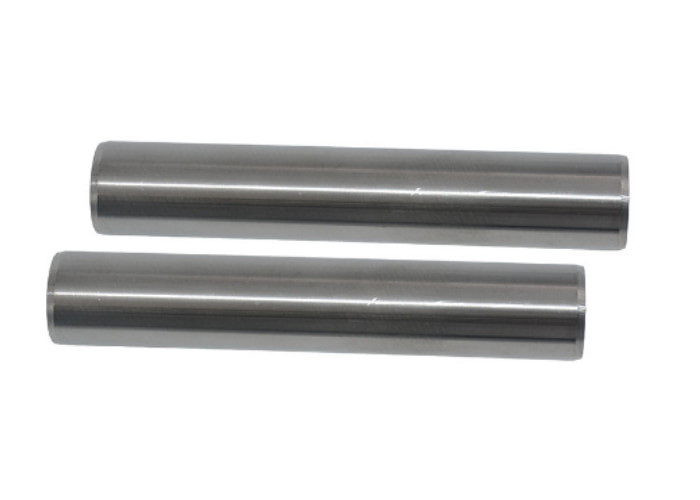

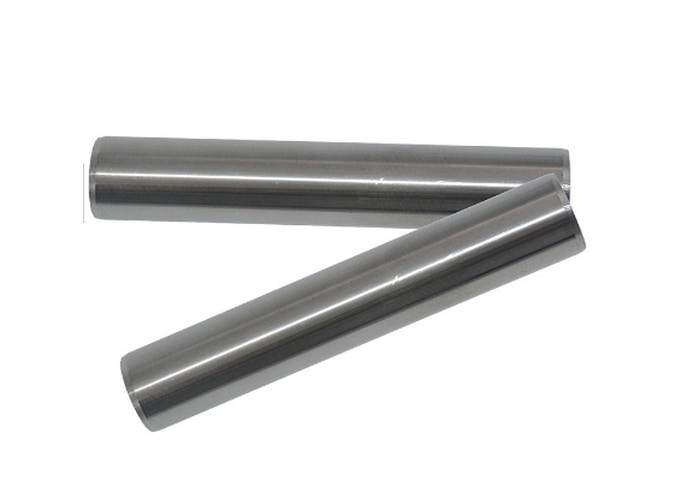

Product Show
