Description:
Material:High-quality Micro Grain Tungsten Steel Solid Carbide

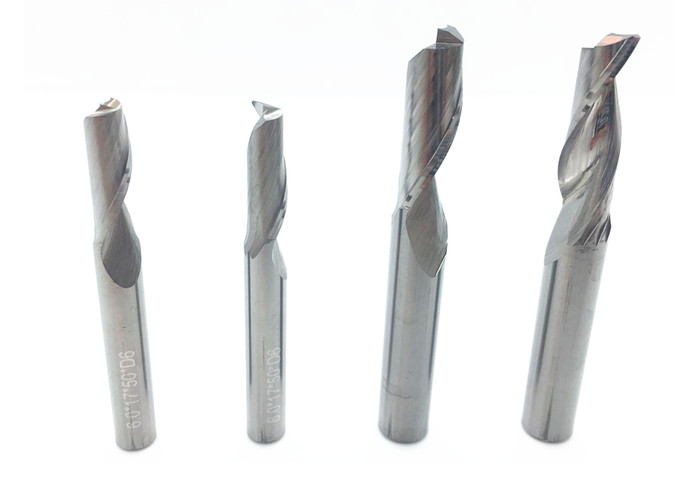

Type:Single Flute Spiral Solid Carbide End mills
Cutting Diameter:4mm
Flute Length:12mm
Shank Diameter:4mm
Overall Length:50mm
Best Suitable Materials: Aluminum
could also suitable on below materials:
(1) MDF, particle board, board with lagging, log, affixed to the skin panels;
(2) Acrylic, PVC, resin, plastic, chipboard, composite board, melamine board;
(3) Solid wood, native wood, plywood, lotus plate;

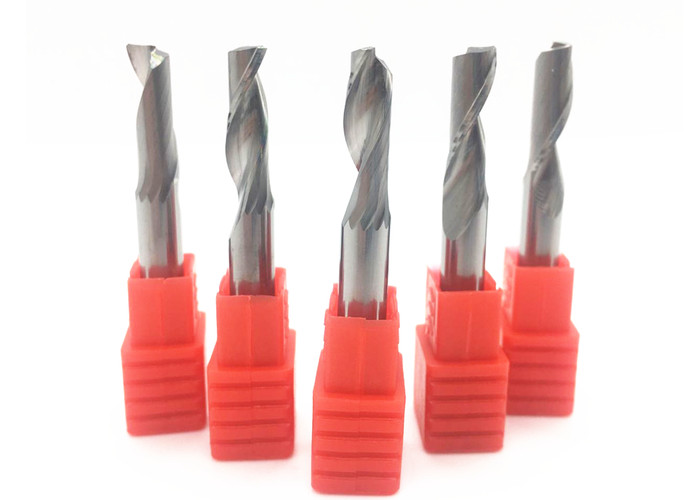

Package include:2Pcs Single flute spiral end mill
Applied to:
CNC Router Machining Center, Woodworking Machine, Advertising CNC Router, etc;
Features:
(1) Excellent combination of upper and lower blades, SHARP cutting edge;
(2) High precision grinded and polished, high abrasion resistance and temperature resistance, good rigidity, not easy to break;
(3) No burrs for Up and down spiral machining;
(4) High performance, improve the work efficiency, reduce cost;
| ONE FLUTE SPIPAL BITS FOR WOODS | ||||
| Applicable: Solid wood,MDF ,Multilayer board and so on Proposed engraving machine speed 20000 to turn / min, the feed rate of up to 6-8 M / min |
||||
| NO | SHK | CED | CEL | OVL |
| 1fw3.212 | 3.175 | 2 | 12 | 38 |
| 1fw3.215 | 3.175 | 2 | 15 | 38 |
| 1fw3.217 | 3.175 | 2 | 17 | 38 |
| 1fw3.2.512 | 3.175 | 2.5 | 12 | 38 |
| 1fw3.2.515 | 3.175 | 2.5 | 15 | 38 |
| 1fw3.2.517 | 3.175 | 2.5 | 17 | 38 |
| 1fw3.17 | 3.175 | 3.175 | 17 | 38 |
| 1fw3.22 | 3.175 | 3.175 | 22 | 45 |
| 1fw3.25 | 3.175 | 3.175 | 25 | 50 |
| 1fw3.28 | 3.175 | 3.175 | 28 | 50 |
| 1fw3.32 | 3.175 | 3.175 | 32 | 55 |
| 1fw422 | 4 | 4 | 22 | 45 |
| 1fw425 | 4 | 4 | 25 | 50 |
| 1fw428 | 4 | 4 | 28 | 50 |
| 1fw432 | 4 | 4 | 32 | 55 |
| 1fw622 | 6 | 6 | 22 | 50 |
| 1fw625 | 6 | 6 | 25 | 50 |
| 1fw632 | 6 | 6 | 32 | 58 |
Grewin carbide waiting for your kindly inquiry.
